12 Core Pre Terminated Fiber Cable Singlemode 9 125um LC UPC To SC UPC

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: CE, FDA, SGS, RoHs, ISO9001:2008
Model Number: HGYN-005
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25055PCS Monthly
Fiber Count: 12 Cores Cable OD: 3.0mm
Fiber Type: Singlemode, OS2 Color: Yellow
Connector Type: LC/SC Length: 20FT
Glass Fiber: Corning ClearCurve® Wavelength: 1310/1550nm
High Light:

pre terminated outdoor fiber

,

pre terminated single mode fiber

12 Core LC UPC to SC UPC Fiber Optic Pre-connectoried Multiple Cable, Singlemode, 9/125um, LSZH Jacket



Products Description



Hangalaxy's LC UPC to SC UPC fiber optic patch cord connects fiber optic equipment to equipment or patch panel to equipment. It comprises of a patch cable terminated with LC fiber optic connector at one end, while the other end will be the SC fiber optic connector. It is available in Singlemode and Multimode fiber types with both simplex and duplex types.



Keyed Characteristics


● Strong, flexible and easy to install;
● Ideal for indoor applications, thanks to the LSZH sheath;
● Great mechanic resistance;
● Totally dielectric.



Applications


√ Data centers.
√ Structured cabling systems.
√ LAN interbuilding installations (Campus) 1, 10, 40 and 100 Gbps applications.
√ Security and transport systems.
√ Community access television (CATV) & multi-system operator (MSO).
√ Central office and local loop.



Cable Performance



CABLE YELLOW FANOUT SINGLE-MODE
Applicable standards

CEI/EN 60793

CEI/EN 60794-1

CONSTRUCTION PERFORMANCE
Pulling load resistance (N) 4-6 fo: 600 / 800 8 – 12 – 16 fo: 1.000 / 1.500 / 2000 18 - 48 fo: 2.000 / 2.500
Crush resistance (N/cm) Da 200 a 250
Static bending radius (mm) 10 times x outer diameter
Dynamic bending radius (mm) 20 times x outer diameter
Temperature (°C) -20 / +80
Installing temperature (°C) -10 / +60
Temperature (°C) -20 / +80
MATERIALS
Outer sheath LSZH (yellow RAL 1018)
External sheath of single fiber LSZH (yellow RAL 1018)
Secondary sheath of single fiber Nylon - SEMITIGHT
Strenght member Aramid yarns
FIBER
SM - 9/125 SMF-28e
CONSTRUCTION FEATURES
Number of fibers 12 24 48
Outer diameter (mm) 10.5mm 13.5mm 17.8
Weight (kg/km) 50 78 135
Single fiber external diameter (mm) 0.9 ±0,1
Connectors Standard of LC, ST, FC, SC etc.





Optical

Characteristics

Parameter Value
Insertion Loss UPC ≤0.30 dB
APC ≤0.30 dB
Return Loss UPC ≤-55 dB
APC ≤-65 dB



Testing Equipment

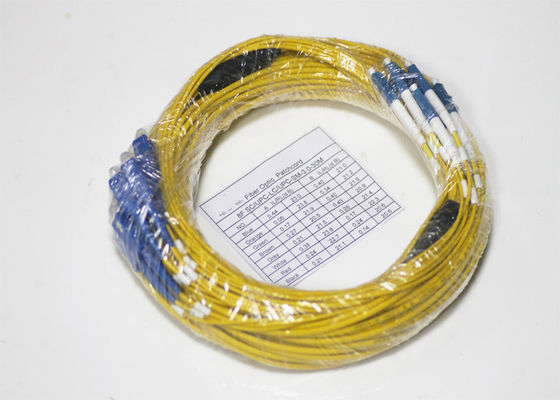

12 Core Pre Terminated Fiber Cable Singlemode 9 125um LC UPC To SC UPC 0



Products Picture

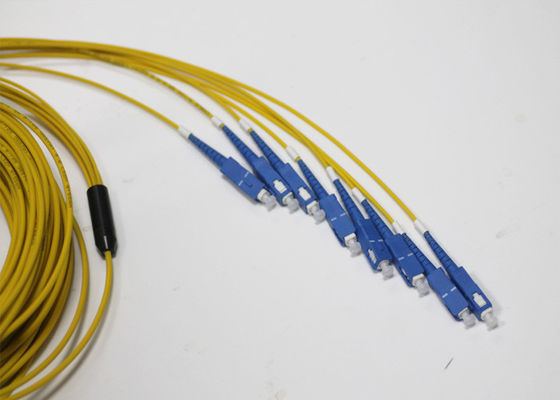

12 Core Pre Terminated Fiber Cable Singlemode 9 125um LC UPC To SC UPC 1

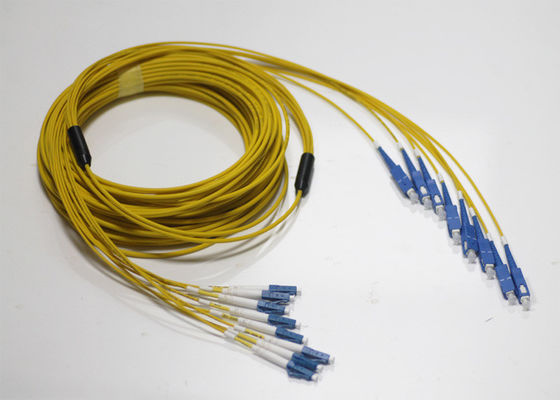

12 Core Pre Terminated Fiber Cable Singlemode 9 125um LC UPC To SC UPC 2

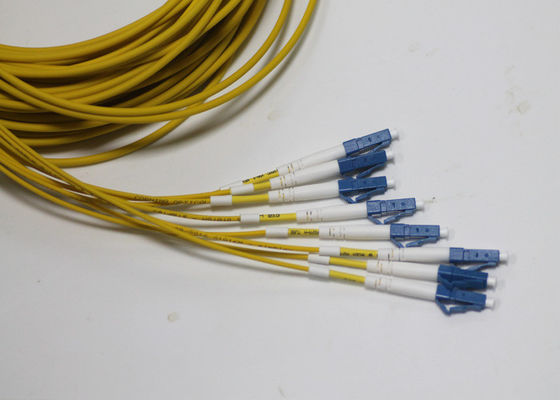

12 Core Pre Terminated Fiber Cable Singlemode 9 125um LC UPC To SC UPC 3



Eco-Friendly Packaging & Labeling


This easy to take and well-protected fiber optical cable package has been labeled and marked by Hangalaxy as default. Customized label or package solution are available on request.



12 Core Pre Terminated Fiber Cable Singlemode 9 125um LC UPC To SC UPC 4



Questions & Answers



Q:Is this connector length included in the total cable length? For example, for a 1m cable, is the length distribution a 0.02m connector + 0.96m cable + 0.02m connector or a 0.06m connector + 1m cable + 0.06m connector?


A:The connector length of 0.02m is included in the total length. The total length is the distance from the connector ferrule at one end to the ferrule at the other end.


Q:Is this match dell?


A:Thanks for your question. This OM4 (OM3) multimode MTP trunk cable could be connected to the Dell's device through the Dell transceivers. Here are the related Dell transceivers for your reference. If you can provide the model of your device, we'll recommend the related modules and cables for you.


Q:Can I change the polarity and pins of this cable?


A:Thanks for your question. Please kindly note that the polarity and pins of this cable can not be changed. To meet your needs of changing polarity and pins, the MTP PRO trunk cable #80734 is recommended for you.
