24 Cores SC LC ST Fiber Optic Wall Mount Termination Box Multimode OM3

Basic Information
Place of Origin: China
Brand Name: Hanglaxy
Certification: SGS, CE, RohS, UL, FDA
Model Number: HGYN-0148
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7-10 Business Days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability: 5055PCS Monthly
Material: Metal Color: White
Fiber Count: 24 Connector Type: LC UPC
Fiber Mode: Multimode, OM3 Dimension: 1U, 19inch
Insertion Loss: 0.5dB Return Loss: 35dB
High Light:

fiber optic distribution box

,

outdoor fiber termination box

24 Cores SC LC ST Fiber Optic Termination Box Wall-racked Installed



Hangalaxy this kind of Fiber optic termination box is a rugged, low profile interconnection unit suitable for all Fiber Optic and FTTx application, specially designed for residential use and it is applicable for large business premises.



Physical Features



(1) Indoor/Outdoor type;

(2) Nonmetallic material;

(3) Compacted wall mount type;

(4) Simple and clearly arranged incoming and outgoing cable management;

(5) Higher fiber count capacity box is available upon request;

(6) Easy maintenance ,easy access with front door;

(7) Support both mechanical and fusion splicing;

(8) Low cost solution with high protection for the terminated fibers;

(9) IP55 rated for outdoor applications;

(10) Customized design product is available upon request.



Application



(1) FTTX Systems;

(2) PON Networks;

(3) Fiber Optic Termination;

(4) CATV.



Usage Environment



(1) Wall Mounted termination box for indoor/ourdoor use
(2) Up to 24 Fiber capacity LC Duplex

(3) Available for FC,SC,LC Adaptors



Specification



Part Number HGYN-0148
Fiber Capacity 24 fibers
Material Metal
Color White
Connector Type LC UPC
Fiber Mode Multimode, OM3
Dimension 48x35x4.5cm
Weight 1.56kg
Durability 1000times
Relative Humidity ≤85% (30°C)



Usage Environment



Environment Temperature

-40°C~+80°C

Relative Humidity ≤85% (30°C)
Insulated Resistance ≥2×10MΩ/500V(DC)



24 Cores SC LC ST Fiber Optic Wall Mount Termination Box Multimode OM3 0

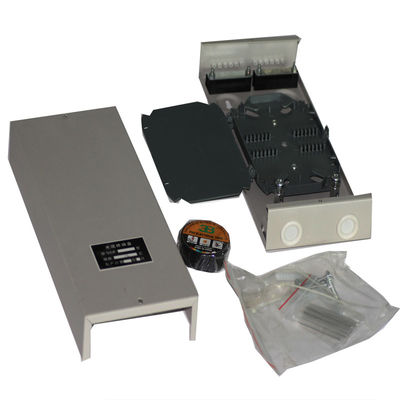

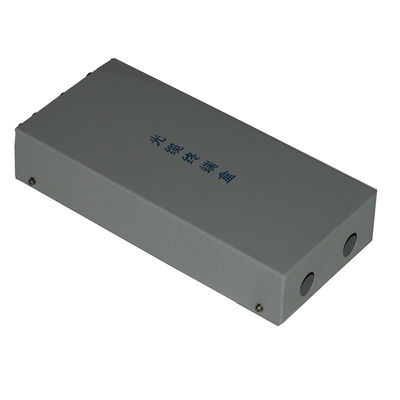

Product Photo and Accessories



24 Cores SC LC ST Fiber Optic Wall Mount Termination Box Multimode OM3 1



24 Cores SC LC ST Fiber Optic Wall Mount Termination Box Multimode OM3 2
