300 Meters 3.0mm DVI Active Optical Cable / AOC Active Optical Cable LSZH Jacket
| Place of Origin | China |
|---|---|
| Brand Name | Hangalaxy |
| Certification | CE, FDA, SGS, RoHs, ISO9001:2008 |
| Model Number | HGYN-008 |
| Minimum Order Quantity | MOQ Saying is 10pcs |
| Price | Negotiation By email or Phone Call |
| Packaging Details | 1PCS Each Individual Quality PE Bag |
| Delivery Time | 7 Business Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 25055PCS Monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bandwidth Rate | 10.2Gbps | Cable Diameter | 3.0mm |
|---|---|---|---|
| Tensile (Long-term / Short-term) | 230N | Crush (Long-term / Short-term) | 200N |
| Power Consumption | 250mW | Weight | 50m<1kg |
| Connector Type | Both DVI Type A Pluggable | Transmitted Distance | 300m |
| High Light | active fiber cable,aoc active optical cable |
||
Product Description

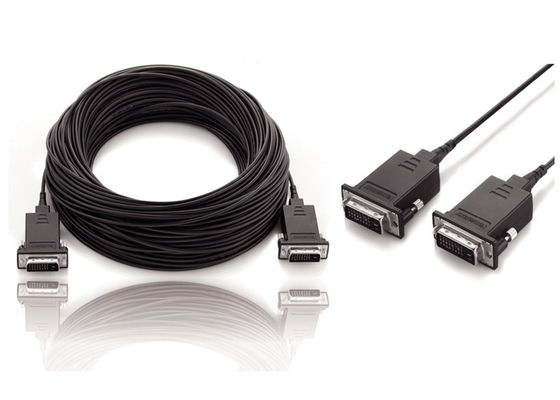

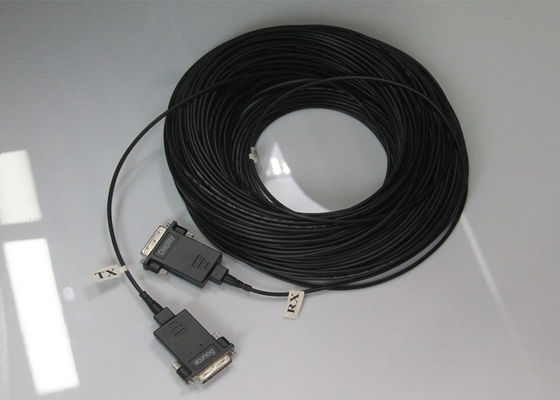

300 meters 3.0mm Pure Fiber DVI AOC Active Optical Cable LSZH Jacket
Item Description
Extensiv DVI cables support all singlelink DVI resolutions up to 1000 feet (300m). The DVI specification does not support audio. Compared to copper cables, the diameter is much less and the cable is more flexible. The detachable style uses the HDMI cable with a HDMI type D to DVI adapter.
Easy to Install, Even in Plenum Spaces
Our this kind of cables are plenum-rated (UL CMP-OF), compact, lightweight and highly flexible. Constructed using a hybrid design of 4x POF (Polyfluorinated Optical Fiber) and 6x copper wires, they are rugged, yet flexible, with a minimum bend radius of just two millimeters. To minimize cable diameter, two removable DVI docking connectors may be detached, revealing a connector cross section that measures just 13.9 x 14.2 millimeters. The docking connectors include fixation screws for added security, as do the removable cable pull covers. These features make the cables easy to install even in narrow conduits, as well as in plenum spaces.
Specification
| Bandwidth Rate | 10.2Gbps |
| Cable Diameter | 3.0mm |
| Tensile (Long-term / Short-term) | 130N / 230N |
| Crush (Long-term / Short-term) | 200N / 400N |
| Bend Radius (Dynamic / Static) | 80mm / 40mm |
| Operating Temp. / Storage Temp. | -10℃ ~ +50℃ / -20℃ ~ +80℃ |
| Weight | 50m<1kg |
| Connector Type | Both DVI type A pluggable |
| Power Supply | From the main equipment of the DVI electric: 5V (International Standard) |
| Power Consumption | <250mW |
| Length Request | 10m / 20m / 60m......100m / 300m (Has to be customized over 100m) |
Feature
(1) DVI AOC needs to write the EDID information of the target display device at the source end, and the source end; connector come with EDID function;

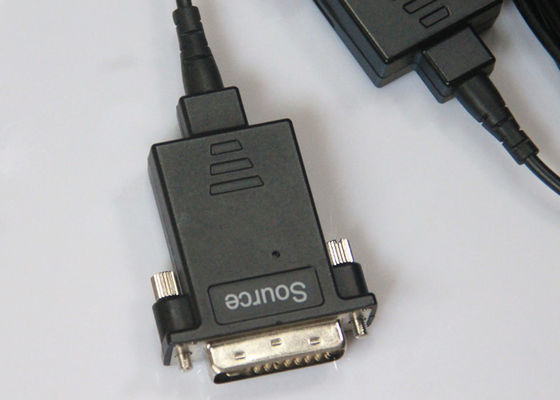

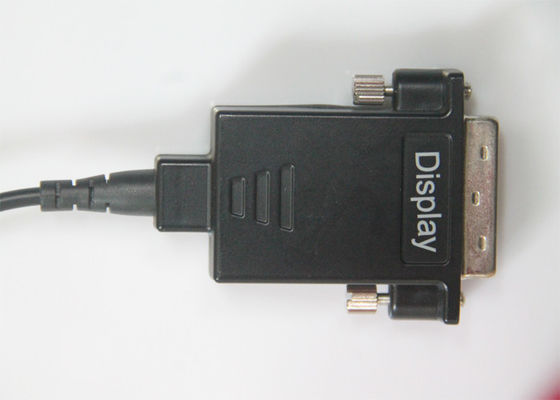

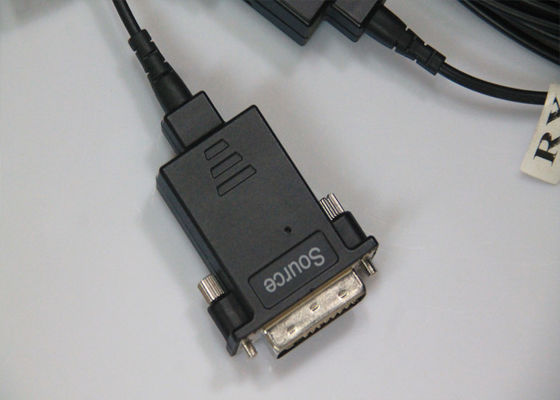

(2) The Active Optical Cable has directivity which are Display and Source;
(3) Plug and play without driver dependent, no extra power needed, highly resistant with EMI and RFI;
Typical Application
DVI Cables Extensiv DVI cables support all singlelink DVI resolutions up to 1000 feet (300m). The DVI specification does not support audio. Compared to copper cables, the diameter is much less and the cable is more flexible. The Hangalaxy style uses the HDMI cable with a HDMI type D to DVI adapter.
