48 Cores Fiber Optic Termination Box Black ABS Plate For FTTH Solution

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: ROHS, UL, SGS, CE
Model Number: HGYN-08773
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25055PCS Monthly
Material: ABS Plastic Fiber Count: 48
Color: Black Connector: SC APC
Dimension: 260mm*220mm*95mm Weight: 0.75KG
Insulation Resistance: 2*104MΩ Dielectric Strengt: 15KV
High Light:

ftth termination box

,

outdoor fiber termination box

48 Cores Fiber Optic Termination Box Black ABS Plate for FTTH Solution



48 Port Fiber optic termination box provides an economical way for terminating small optical fiber in which the optical cable or patch cord or pigtail is connected. It has white and black for option with black ABS material.



Application


1. Suitable for Pigtail, ribbon and bunch cable connectors distribution;
2. Used in wall or terrace installation;
3. Used in Telecommunication networks and premise network installation.



Feature


1. Made with cold steel material and Electrostatic injection;
2. Small size with reasonable design;
3. Max 8fiber with LC, SC, ST, FC panel face for option;
4. Easy to access, two ports for indoor cable connection;
5. Fixed by screws on the box front;
6. Can have adapters, pigtails loaded per client requirement;
7. Working Temperature: -40℃ ~ +80℃;
8. Standard Accessories: insulation tape, nylon tie, labeling paper and fixer;
9. Dimension: 8 core-260 x130 x38mm (L x W x H).



Specification



Dimensions (W*H*D) 260mm*220mm*95mm
Adapter Capacity 12 x SC/FC simplex adapters or LC duplex adapters
Number of Cable Entrance/Exit 2/12 simplex drop cables (Pre-connectorized cables supported)
Optional Accessories Adapters, Pigtails, Heat Shrink Tubes
Weight 0.75 KG



Operation Conditions



Temperature -10℃to 50℃ (Other materials available upon request for extreme weather conditions)
Humidity 95% at 40℃
Air Pressure 70kPa – 106kPa



Shipping Information



Package Contents Distribution box: 1 unit; Wall mount installation accessories: 1 set
Package Dimensions(W*H*D) 265mm*225mm*100mm
Material Carton box
Weight 1.5 KG
Lead Time 10-15 working days normally



Hangalaxy’s distribution box terminates outside optical cables with up to 12 fibers; it allocates 12 adapters for connecting with max 12 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.

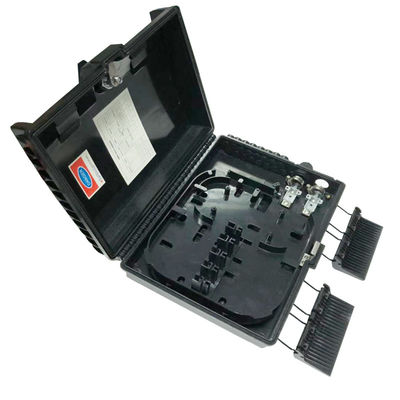

48 Cores Fiber Optic Termination Box Black ABS Plate For FTTH Solution 0

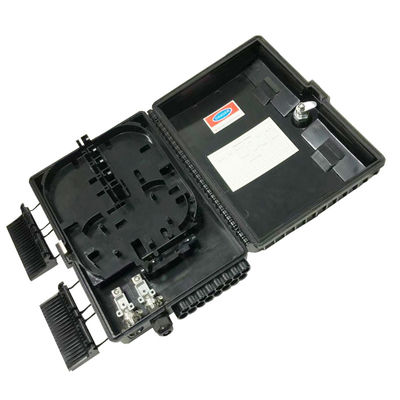

48 Cores Fiber Optic Termination Box Black ABS Plate For FTTH Solution 1



Hangalaxy Factory

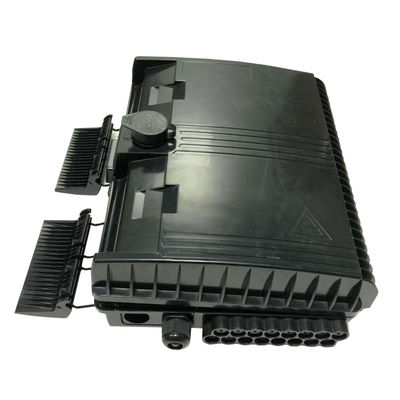

48 Cores Fiber Optic Termination Box Black ABS Plate For FTTH Solution 2



Quality Guarantee



Hangalaxy has this fiber optical termination box in stock and ready to ship. This ABS box for FTTH network is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.
