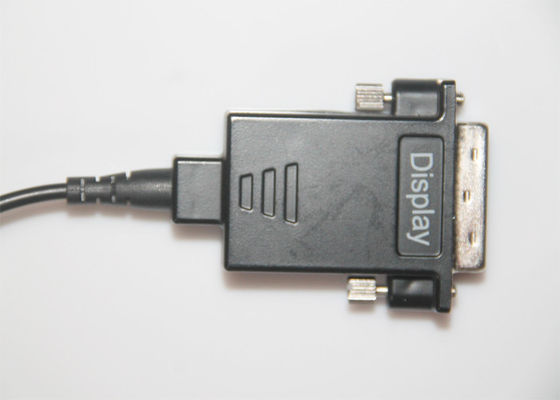

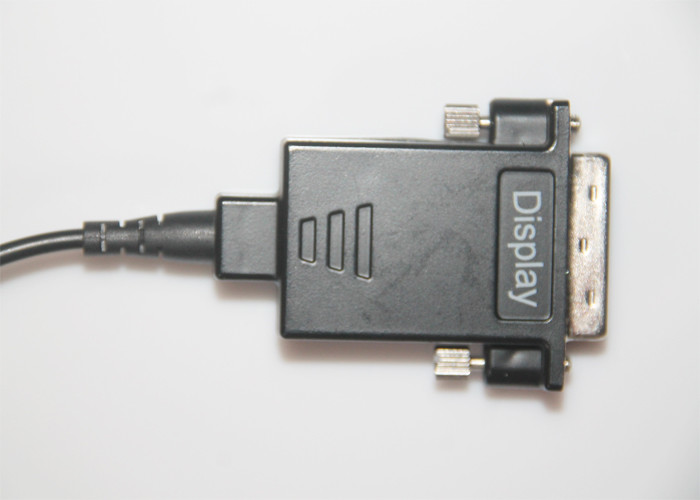

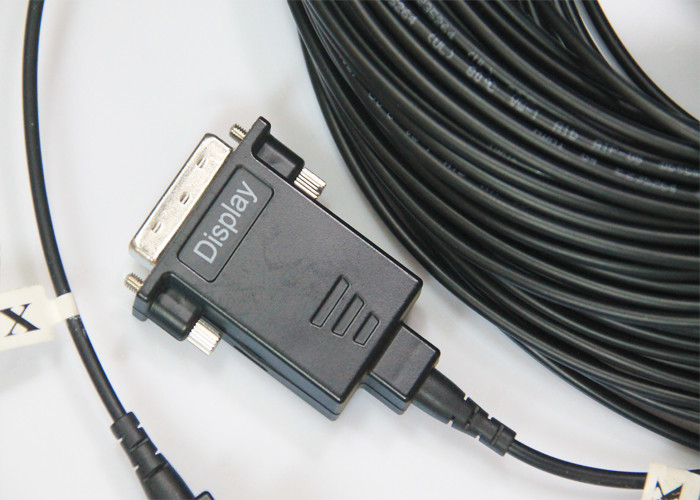

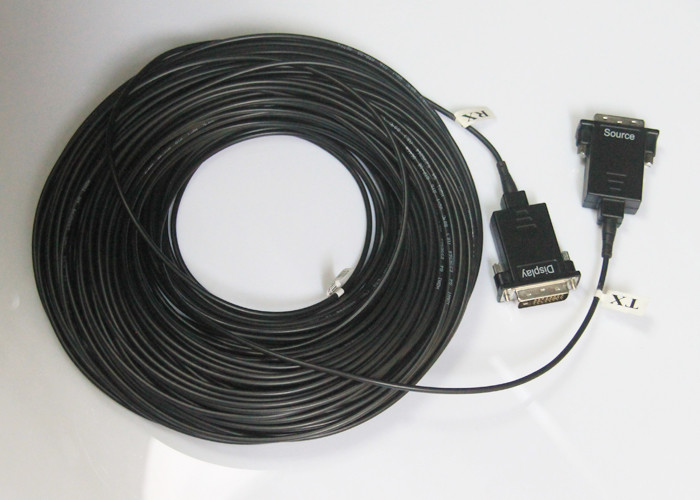

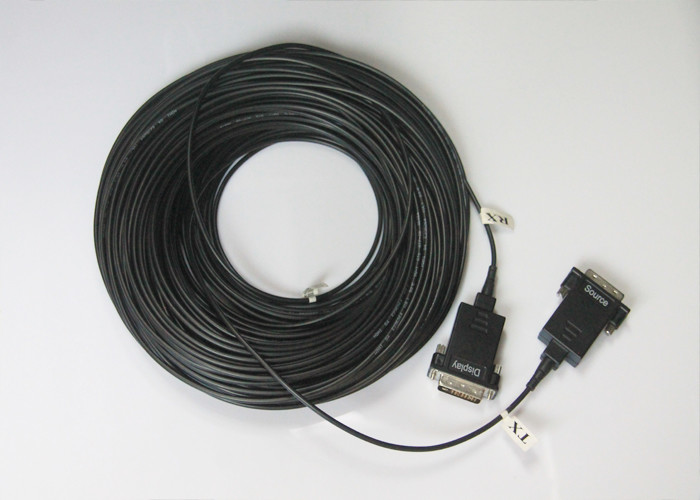

Hangalaxy DVI Active Optical Cable LSZH Black Jacket 10.2Gbps 3.0mm

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: CE, FDA, SGS, RoHs, ISO9001:2008
Model Number: HGYN-007
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25055PCS Monthly
Bandwidth Rate: 10.2Gbps Cable Diameter: 3.0mm
Tensile (Long-term / Short-term): 230N Crush (Long-term / Short-term): 200N
Power Consumption: 250mW Weight: 50m<1kg
Connector Type: Both DVI Type A Pluggable Transmitted Distance: 300m
High Light:

active optical cable assembly

,

aoc active optical cable

10.2Gbps 3.0mm Hangalaxy DVI Active Optical Cable, LSZH Black Jacket



Item Description



our Hangalaxy Series of DVI AOC is a new generation of advanced Active Optical Cables (AOC) that employs cutting edge technology to deliver unprecedented resolution, performance and value. Hangalaxy DVI cables provide robust features in a rugged yet compact and lightweight form factor. They are fully HDCP 1.4 compliant and support signals with data rates up to 10 Gbps. These features enable cables to support any Single-Link DVI resolution with cable lengths up to 300 meters.



Feature



(1) Lightweight, compact, flexible, plenum-rated Active Optical Cables (AOC) Supports DVI 1.0 and HDCP 1.4;
(2) Supports HDMI using optional adapter cables Supports data rates up to 10 Gbps / lane or 4.95 Gbps total;
(3) Extends any DVI Single-Link resolution up t0 1000 ft. (300 meters);

(4) Plug and play without driver dependent, no extra power needed, highly resistant with EMI and RFI.



Professional Environments



Hangalaxy cables are designed for use in mission critical applications where image quality and dependability are paramount. The video signals are transmitted over four optical fibers, which make them immune to interference from environmental noise. The optical transmission path provides a very low RFI / EMI profile, which allows the cables to be installed in sensitive applications with strict security requirements. The cables draw power from the connected DVI source, eliminating the need for an external power supply. Hangalaxy AOC cables are ideally suited for applications that require ultra-high resolution DVI signals to be extended over long cable runs with flawless image quality.





Specification



Bandwidth Rate 10.2Gbps
Cable Diameter 3.0mm
Tensile (Long-term / Short-term) 130N / 230N
Crush (Long-term / Short-term) 200N / 400N
Bend Radius (Dynamic / Static) 80mm / 40mm
Operating Temp. / Storage Temp. -10℃ ~ +50℃ / -20℃ ~ +80℃
Weight 50m<1kg
Connector Type Both DVI type A pluggable
Power Supply From the main equipment of the DVI electric: 5V (International Standard)
Power Consumption <250mW
Length Request 10m / 20m / 60m......100m / 300m (Has to be customized over 100m)



Typical Application



Hangalaxy DVI Active Optical Cable LSZH Black Jacket 10.2Gbps 3.0mm 0


DVI Cables Extensiv DVI cables support all singlelink DVI resolutions up to 1000 feet (300m). The DVI specification does not support audio. Compared to copper cables, the diameter is much less and the cable is more flexible. The Hangalaxy style uses the HDMI cable with a HDMI type D to DVI adapter.



Shipping Method



If your freight is going a long way, or to another country, there’s a good chance it will require several different modes of transportation to get from A to B. If you’re in a hurry or unsure of your options, talking to a shipping professional can clear up a lot of confusion.



Air


A plane can usually ship anything that can be shipped LTL. Air shipping is a fast option but can be a fairly expensive way to ship freight to other countries. However, if you’re on a time crunch it’s probably a good option.



Hangalaxy DVI Active Optical Cable LSZH Black Jacket 10.2Gbps 3.0mm 1



Train


While it’s often considered dated, train or rail shipping is still a viable and economical way to ship freight. It can haul LTL or truckload shipments from one destination to another, or in combination with other modes of transportation.



Truckload


If you need freight weighing more than 15,000 pounds shipped within the country, truckload shipping is the way to go. Truckload (TL) shipments usually deliver on the same trailer they were picked up on, limiting the potential for loss or damage.



LTL


If you don’t have quite enough freight for a full truckload, you may consider a less-than-truckload (LTL). An LTL load holds shipments for several shippers, organized into one shipment according to destination, class and delivery time.



Ocean


Large ocean vessels can move freight from country to country, usually in large, metal, corrugated containers. This is the preferred method of shipping large amounts of freight.
