10 FT Fiber Cable LSZH MTP OFNR 12 Cores Multimode OM3 Aqua

  • 10 FT Fiber Cable LSZH MTP OFNR 12 Cores Multimode OM3 Aqua
  • 10 FT Fiber Cable LSZH MTP OFNR 12 Cores Multimode OM3 Aqua
  • 10 FT Fiber Cable LSZH MTP OFNR 12 Cores Multimode OM3 Aqua
  • 10 FT Fiber Cable LSZH MTP OFNR 12 Cores Multimode OM3 Aqua
Place of Origin China
Brand Name Hangalaxy
Certification CE, FDA, SGS, RoHs, ISO9001:2008
Model Number HGYN-001
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Count 12 Cores Cable OD 3.0mm
Fiber Type Multimode, OM3 Color Aqua
Connector Type MTP, USConec Length 10ft
Glass Fiber Corning ClearCurve® Wavelength 850/1300nm
High Light

10 FT Fiber Cable OFNR

,

12 Cores Fiber Cable Multimode OM3

,

LSZH Optical Cable Aqua
Leave a Message
Product Description

10 FT Fiber Cable LSZH MTP OFNR 12 Cores Multimode OM3 Aqua



12 Cores Fiber Optic Multimode MTP to MTP Female End Aqua OM3 Trunk Cable



Products Description



Hangalaxy's MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning Clearcurve fiber, it is optimized for 10/40/100G high-density data center applications. Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors. And today we has 12F and 24F MTP Cable for producing and our quality to meet your standard requested.



Keyed Characteristics


• NTT Compatible;
• Low loss interconnect;
• Push-pull mating of MTP for quick connections;
• 100% tested;
• Compliance with the 40 and 100Gbps protocols.
• Consistent and repeatable performance.



Applications


• High density interconnects for:Telephony central office and local loop & Data Communications;
• Provides interconnect for parallel optical transmitters and receivers.



Cable Performance



Fiber Type (ISO/IEC 11801) 50/125um, OM3, Aqua

Attenuation Coefficient (dB/km)

 ≤ 3.5 Max (850nm)
≤ 1.5 Max (1300nm)
≤ 2.7 Typ (850nm)
≤ 0.9 typ (1300nm)

Standards Compliance

 TIA/EIA-568-C.3 and ISO/IEC 11801
Color Options MM Elite (Aqua)
Minimum Bandwidth: Laser Effective Modal Bandwidth[Mhz-km] ≥2000 (850nm)
Jacket Material Riser - OFNR
LSZH - Low Smoke Zero Halogen
Plenum - OFNP
Plenum - OFNP



Connector Performance - MTP®



Type and Color Code Connectors Insertion Loss (IL) Optical Return Loss (RL) Operating Temperature
Multimode MTP® Standard Connector 0.35 dB Typical (All Fibers)
0.75 dB Maximum (Single Fiber)1,3		 > 20 dB (0°Flat Polished)2,3 -40℃ to 75℃
1 IL test according to IEC 61300-3-4;
2 RL test according to IEC 61300-3-6;
3 Tested with proposed encircled flux launch condition on 50μm fiber & 850nm per IEC 61280-4-1.





Ordering Guide


(1) The big length with pulling eyes for each reel packed.
(2) The fiber channeling of our 40G / 100G Solution will be illustrated in NEATEL drawings, please contact us more details.
(3) The MPO / MTP® Trunk Assemblies in our 40G / 100G Solution are connected via key-up to key-up MPO adapter (Type-B), please contact us if different adapter orientation is required.
(4) Please refer to the "MPO Trunk Assembly" leaftlet if MPO assemblies with 12-Fiber cable or other fiber counts are needed.



Testing Equipment

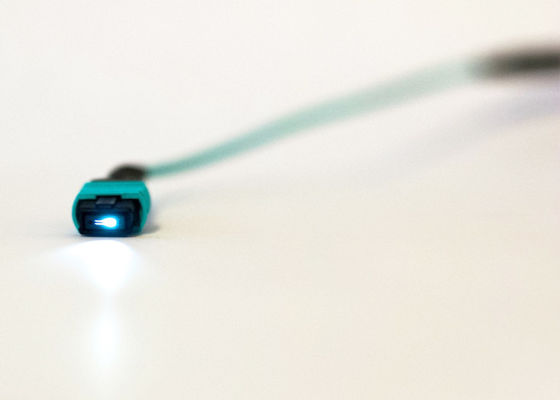

10 FT Fiber Cable LSZH MTP OFNR 12 Cores Multimode OM3 Aqua 0

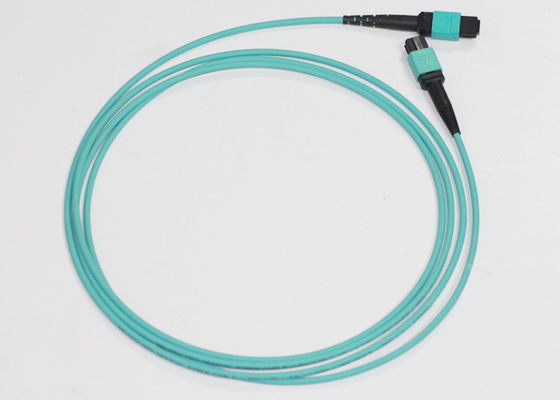

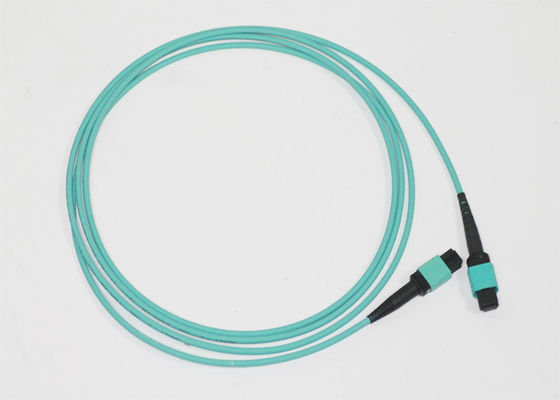

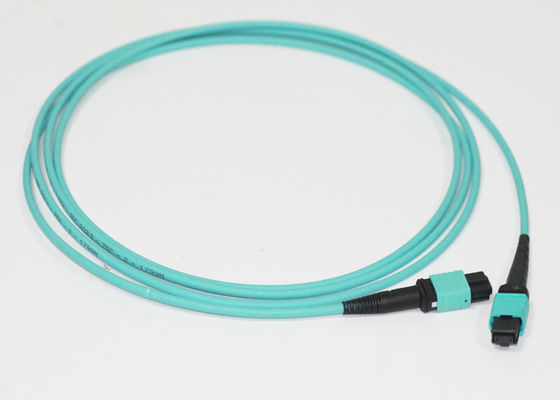

Products Picture



10 FT Fiber Cable LSZH MTP OFNR 12 Cores Multimode OM3 Aqua 1



10 FT Fiber Cable LSZH MTP OFNR 12 Cores Multimode OM3 Aqua 2



10 FT Fiber Cable LSZH MTP OFNR 12 Cores Multimode OM3 Aqua 3



Eco-Friendly Packaging & Labeling


This easy to take and well-protected fiber optical cable package has been labeled and marked by Hangalaxy as default. Customized label or package solution are available on request.



10 FT Fiber Cable LSZH MTP OFNR 12 Cores Multimode OM3 Aqua 4



Questions & Answers



Q: Is this connector length included in the total cable length? For example, for a 1m cable, is the length distribution a 0.02m connector + 0.96m cable + 0.02m connector or a 0.06m connector + 1m cable + 0.06m connector?


A: The connector length of 0.02m is included in the total length. The total length is the distance from the connector ferrule at one end to the ferrule at the other end.


Q: Is this match dell?


A: Thanks for your question. This OM4 (OM3) multimode MTP trunk cable could be connected to the Dell's device through the Dell transceivers. Here are the related Dell transceivers for your reference. If you can provide the model of your device, we'll recommend the related modules and cables for you.


Q: Can I change the polarity and pins of this cable?


A: Thanks for your question. Please kindly note that the polarity and pins of this cable can not be changed. To meet your needs of changing polarity and pins, the MTP PRO trunk cable #80734 is recommended for you.
