3.0mm OS2 SC UPC Simplex Fiber Optic Patch Cables PVC Yellow Jacket

Place of Origin China
Brand Name Hanagalaxy
Certification CE, SGS, FDA, UL
Model Number HGYN-0615
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Yellow Cable OD 3.0mm
Cable Jacket PVC Connector 1 SC APC
Connector 2 SC APC Fiber Count 1F
Insertion Loss 0.35dB Return Loss 45dB
High Light

fiber optic cable patch cord

,

optical fiber jumper

Leave a Message
Product Description

3.0mm OS2 Fiber Optic SC UPC Simplex Patch Cables PVC Yellow Jacket

FTTH is the installation and use of optical fibre to provide high-speed broadband access to individual buildings or multidwelling units (MDUs). Hanagalaxy Auto-shutter SC patchord is the perfect fit for in-house fiber network with sophisticated dust and laser protection mechanism. Another end of the cable splice with optical cables. Most of the time, the multimode is orange, and uasually connect with multimode fiber transceiver. The single-mode pigtail is yellow, and connect with single-mode fiber transceiver or optical transceiver.


Applications


(1) CATV / Metro
(2) Active device termination
(3) Telecommunication networks
(4) Local Area Networks (LANs)
(5) Data processing networks
(6) Test equipment
(7) Premise installations
(8) Wide Area Networks (WANs)


Feature



1. Low insertion loss and back reflection loss;
2. Good Durability;
3. Good exchangeability;
4. High temperature stability;
5. Standard: Telcordia GR-326-CORE;

6. Compact design;

7. IEC,JIS,TELCORDIA-326 compliance.



Product Classification



Connector Polish Type Optical Properties Reference Standard
SM MM
IL (dB) RL (dB) IL (dB) RL (dB) YD/T 1272.3-2005;IEC 60874-19-1 IEC 60874-14-5;IEC 60874-14-10
SC UPC ≤0.35 ≥50 ≤0.20 -
APC ≥60 - -
Operating Temperature(℃) -40℃~+80℃
Storage Temperature(℃) -40℃~+85℃
Fireproof standard IEC 60332-3
RoHs 2002/95/EC directive



Regional Availability China
Product Type Fiber pigtail, multi-fiber
Color, boot A White
Color, connector A White
Jacket Color White
Fiber Count 1
Nominal Diameter (mm) 5.0
Fiber Mode Singlemode
Fiber Type OS1
ROHS Compliant/Exempted


Cable Parameter


Category

Description

Specifications

Before cabling

After cabling

Attenuation @1550 nm

≤0.20 dB/km (max.) ≤0.22 dB/km (max.)

Attenuation @1625 nm

≤0.23dB/km ≤ 0.24 dB/km

Zero Dispersion Wavelength

≤1520 nm

Zero Dispersion Slope

≤ 0.084 ps/nm2·km

PMD Link value (M=20cables Q=0.01% )

maximum PMDQ

≤0.08 ps/√km

Cable Cutoff Wavelength (λcc)

≤1450 nm

Macro bending Loss

(1 turn; Ф32 mm) @1550 nm

(100 turns; Ф60 mm) @1625 nm
(100 turns; Ф50 mm) @1310 &@1625 nm

≤ 0.05 dB
≤ 0.05 dB
≤0.05 dB

Mode Field Diameter

@1550 nm 9.6±0.5μm

Dimensional Specifications

Cladding Diameter

124.8 ±0.7μm

Core/clad concentricity error

≤0.6μm

Cladding Non-Circularity

≤1.0%



Proof stress off line

≥9.0 N
≥1.0 %
≥100 kpsi

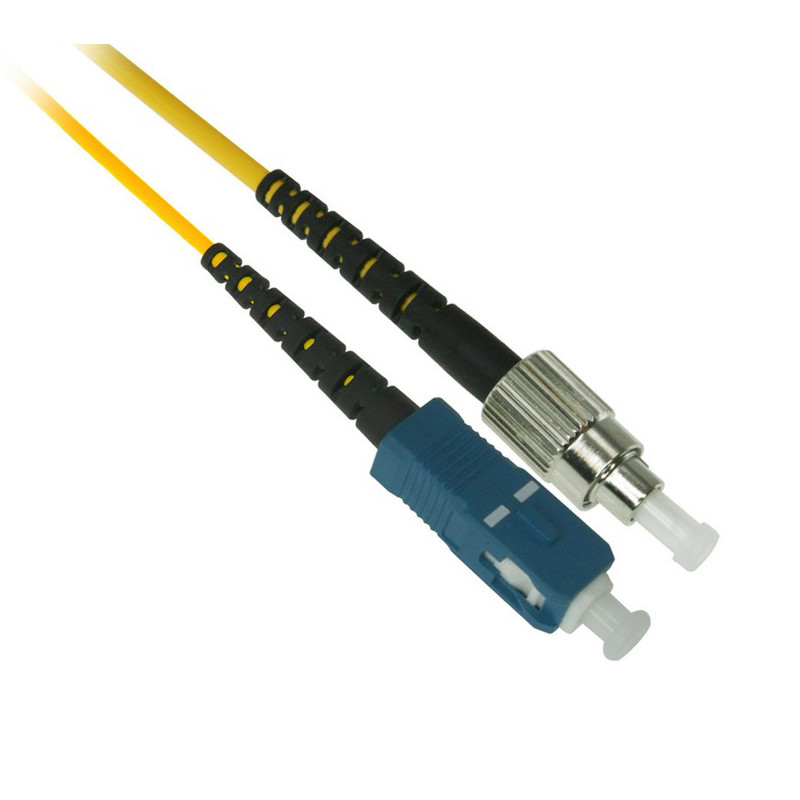

3.0mm OS2 SC UPC Simplex Fiber Optic Patch Cables PVC Yellow Jacket 0

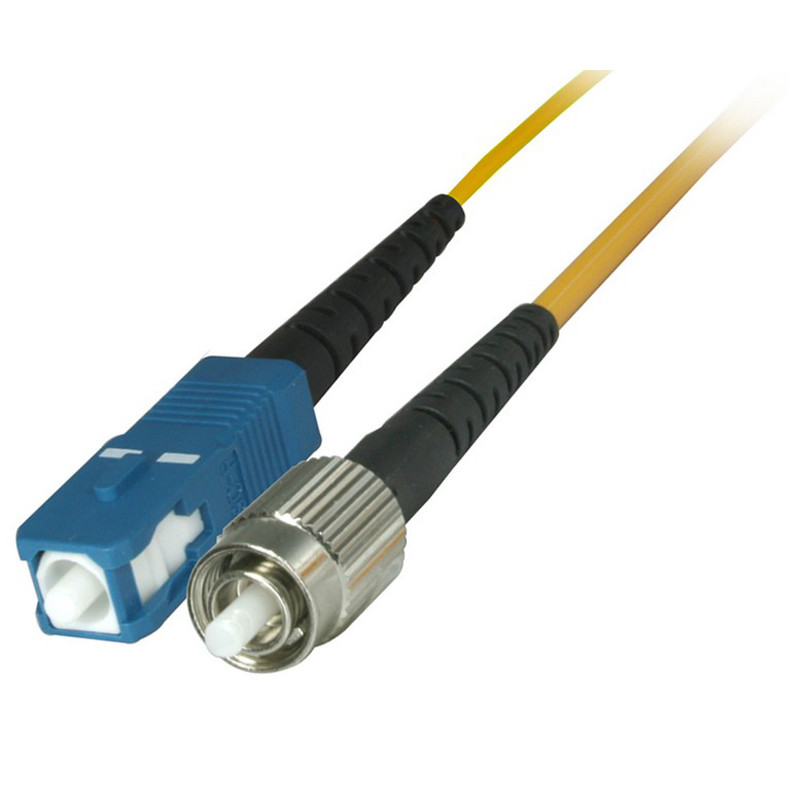

3.0mm OS2 SC UPC Simplex Fiber Optic Patch Cables PVC Yellow Jacket 1
