FTTH SC Polishing UPC Fiber Optic Cable Connector

Place of Origin China
Brand Name Hangalaxy
Certification CE, UL, FCC, RoHs, ISO9001:2008
Model Number H-003
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 250000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type SC Polishing Type UPC
Color Blue Housing PC Plastic
Cable OD 2.0 X 3.0mm Length 55mm
High Light

UPC Fiber Optic Cable Connector

,

FTTH Fiber Optic Cable Connector

,

SC Polishing Optical Fiber Cable Connector

Leave a Message
Product Description

FTTH 2.0 x 3.0mm SC Polishing Fiber Optic Quick Assembly Connector



1, Item Description



This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 2.0mm x 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.



2, Application



● All fiber interconnection;
● Telecom Distribution and Local Area Networks;
● FTTH and FTTx;
● Passive optical networks [ATM, WDM, Ethernet];
● Broadband, Cable TV(CATV).



3, Advantages of Mechanical Splicer



(1) Linkage structure design, when docking with equipment and joints, the reserved microbend remains unchanged;
(2) Double V-slot structure design, fiber optic docking is stable and reliable;
(3) The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
(4) Easy to operate, fast construction, high installation success rate, long life cycle, easy maintenance in the later period.

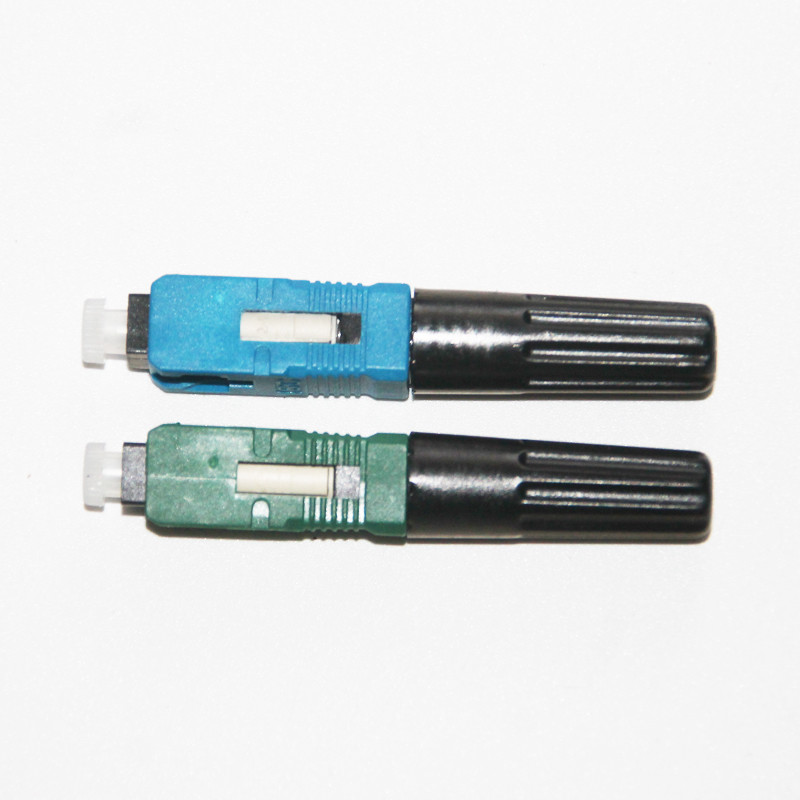

FTTH SC Polishing UPC Fiber Optic Cable Connector 0

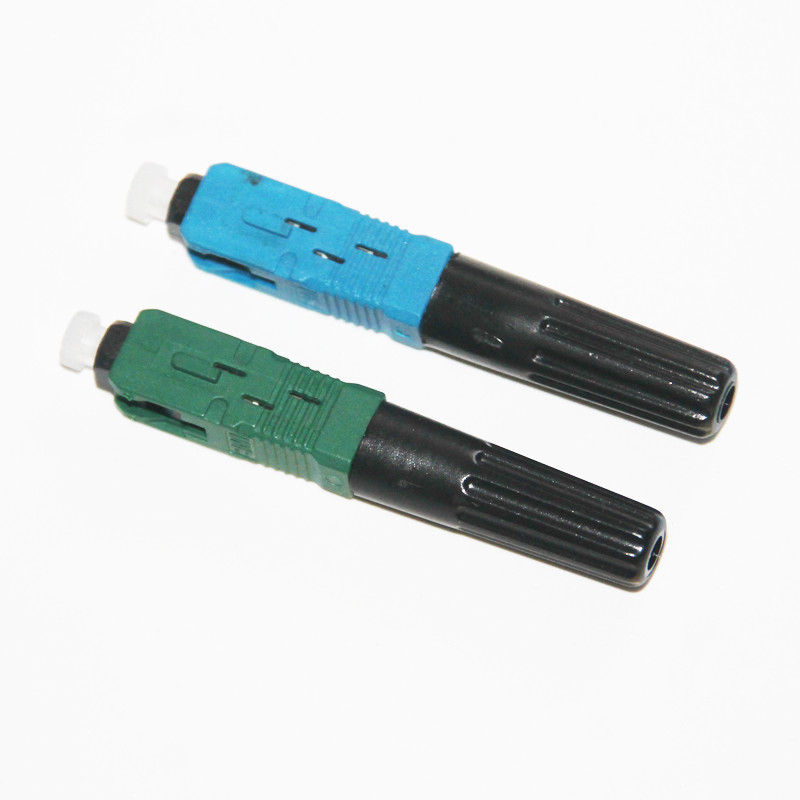

FTTH SC Polishing UPC Fiber Optic Cable Connector 1



4, Technical Parameter



Applicable for 3.1 x 2.0mm Drop cable,φ0.25 mm & φ0.90 mm Fiber
Optical fiber diameter 125μm (652 & 657)
Color Blue
Tight buffer diameter (μm) 250 μm
Polishing Type UPC
Fiber mode Single & multi mode
Operation time About 60s (no fiber cut)
Insert loss ≤ 0.15dB (1310nm & 1550nm)
Return loss ≤ -40dB
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Repeatability (10 times) △ IL ≤ 0.2dB △ RL ≤ 5dB



5, Disadvantages of Mechanical Fiber Splicer



Fiber optic mechanical splices have their cons too.

> Higher insertion loss. The typical insertion loss for a mechanical splice is about 0.2dB which is significantly higher than the 0.02dB loss for typical fusion splice.
> Mechanical splices are typically for multimode fibers. The tough alignment tolerance for single mode fibers makes it hard for mechanical splices to meet
> Mechanical splice is more expensive than fusion splices. But if you take into account the expensive fusion splicing machines that fusion splices need, the average cost is actually much lower for mechanical splice if you just do a few splices.

> Since the refractive index of most index matching compounds varies with temperature, so the optical performance of a mechanical splice can be sensitive to ambient temperature
> Mechanical splices are not thought to be as reliable as fusion splices over long periods of time
> Mechanical splices are used only in relatively benign environments such as inside an office building The principle of mechanical splice is simple and straightforward. Two fibers are stripped, cleaned and cleaved. They are then aligned and held in position either by epoxy resin or by mechanical clips.



6, Worshop



FTTH SC Polishing UPC Fiber Optic Cable Connector 2
