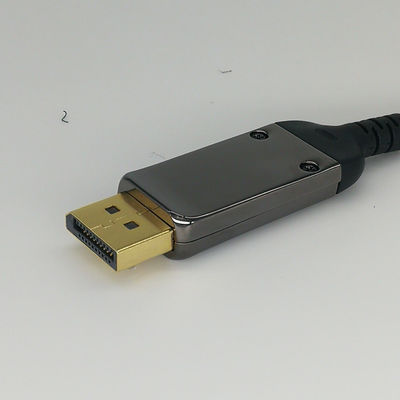

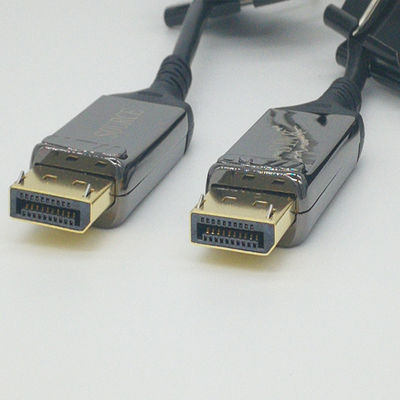

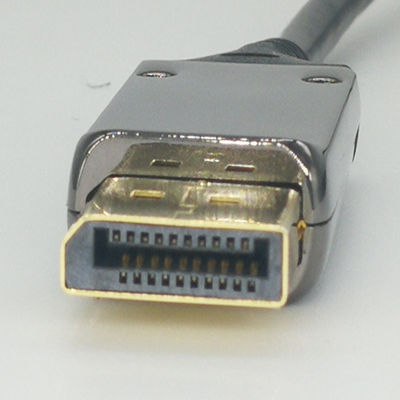

1.4 DP Active Optical Cable Fully HDCP 1.4 2.2 Compliant 500N Crush Resistance
Place of Origin | China |
---|---|
Brand Name | Hangalaxy |
Certification | CE, SGS, UL, ROHS |
Model Number | HGYN-0026 |
Minimum Order Quantity | MOQ Saying is 10pcs |
Price | Negotiation By email or Phone Call |
Packaging Details | 1PCS Each Individual Quality PE Bag |
Delivery Time | 7-10 Business Days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 25000PCS Monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStandards Compliance | DisplayPort 1.4 / HBR3, HDCP 1.4 / 2.2, UL CMP-OF | Maximum Color Depth | Up To 30 Bits/pixel |
---|---|---|---|
AUX Channel Data Rate | 1 Mbps | HDCP Support | HDCP 1.4 And HDCP 2.2 |
Minimum Bend Radius | 2 Mm (fiber And Jacket) | Crush Resistance | 500N |
High Light | active optical fiber,10g aoc cable |
DisplayPort DP 1.4 Active Optical Cable Fully HDCP 1.4 / 2.2 Compliant
Hangalaxy Series cables are plenum rated (UL CMP-OF), compact, lightweight and highly flexible. Constructed using a hybrid design of 4x POF (Polyfluorinated Optical Fiber) and 6x copper wires, they are rugged, yet flexible, with a minimum bend radius of just two millimeters. To minimize cable diameter, two removable DisplayPort docking connectors may be detached, revealing a connector cross‑section that measures just 10 x 12.4 millimeters. The docking connectors include a locking pin for added security. These features make the cables easy to install even in narrow conduits as well as in plenum spaces.
Features & Benefits
1. DVI AOC needs to write the EDID information of the target display device at the source end, and the source end, connector come with EDID function;

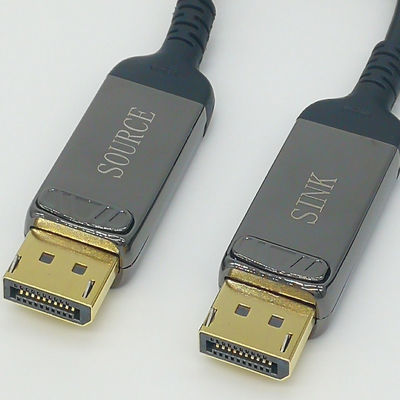

2. The Active Optical Cable has directivity which are Display and Source;
3. Plug and play without driver dependent, no extra power needed, highly resistant with EMI and RFI;
4. Lightweight, compact, flexible, Plenum-rated Active Optical Cables (AOC);
5. Supports DisplayPort 1.4 HBR3, HDCP 1.4 / 2.2;
6. Supports data rates up to 8.1 Gbps / lane or 32.4 Gbps total;
7. Extends resolutions up to 8K / 30 Hz up to 164 ft. (50 meters);
8. Extends resolutions up to 4K / 60Hz up to 328 ft. (100 meters).
Technical Parameter
Bandwidth Rate |
10.2Gbps |
Cable Diameter | 3.0mm |
Tensile (Long-term / Short-term) | 130N / 230N |
Crush (Long-term / Short-term) | 200N / 400N |
Bend Radius (Dynamic / Static) | 80mm / 40mm |
Operating Temp. / Storage Temp. | -10℃ ~ +50℃ / -20℃ ~ +80℃ |
Weight | 50m<1kg |
Connector Type | Both DVI type A pluggable |
Power Supply | From the main equipment of the DVI electric: 5V (International Standard) |
Power Consumption | <250mW |
Length Request | 10m / 20m / 60m......100m / 300m (Has to be customized over 100m) |
Data Speed | 5Gbps |
Crush | 200N |
Tensile Performance | 100N |
Power Consumption | 0.58W |
Cable Diameter | 3.0mm |
Bend Radius | 20mm |
Operating Temp. | 0℃ ~ +55℃ |
Storage Temp. | -20℃ ~ +80℃ |
Length | 10m/15m/35m/40m/.....100m |
Applications
● Industrial Control;
● Digital Signage;
● Home Network Integration;
● Medical Device Connectivity;
● KVM Extension;
● Security: web camera, access control;
● Display Port Devices Sharing: print, scan, storage.
Hangalaxy Workshop
Hangalaxy Exhibition Activities
Professional Environments
These cables are designed for use in mission critical applications where image quality and dependability are paramount. The video signals are transmitted over four optical fibers, which make them immune to interference from environmental noise. The optical transmission path provides a very low RFI / EMI profile, which allows the cables to be installed in sensitive applications with strict security requirements. The cables draw power from the connected DisplayPort source, eliminating the need for an external power supply. Hangalaxy AOC cables are ideally suited for applications that require ultra-high resolution DisplayPort signals to be extended over long cable runs with flawless image quality.
