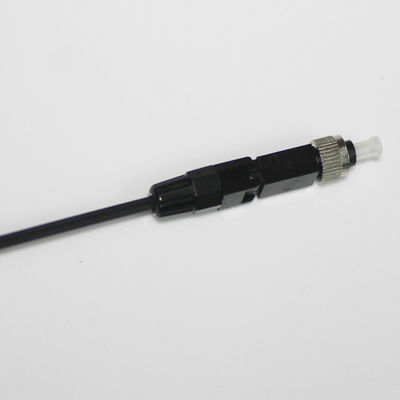

Pre Installed Fiber Optic Field Assembly Connectors 2.0x3.0mm FC UPC Multimode

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: CE, UL, FCC, RoHs
Model Number: HGYN-94
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7-10 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25000PCS Monthly
Housing: Plastic Fiber Mode: Singlmode, OS2
Fiber Count: 1 Cable OD: 2.0x3.0mm
Color: Black Connector Type: FC
Ferrule: Cameric Insertion Loss: 0.35dB
High Light:

sc apc fiber connector

,

fc apc fiber connector

2.0x3.0mm FC UPC Multimode Pre-installed Fiber Optic Field Assembly Connector



This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.



1.3 Reliability:


Ensures product reliability through rigorous qualification testing of each product family. Both initial and periodic qualification testing are performed to assure the cable’s performance and durability in the field environment.



1.4 Reference:


IEC 60793-1, 60793-2, 60794-1
ITU-T G.650, G.652
Note:
1. All the values in the table, which are for reference only, are subject to change without notice;
2. The minimum bend radius (static) is 15mm, when G652D fiber is used.



Keyed Characteristics



√ 12 Tight Buffered Fiber;
√ Ruggedized versions with additional jacketing are available;
√ Environmentally Stable;
√ Excellent Uniformity.



Cable Technical Datasheet



No. Items Unit Specification
Single-mode
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter   μm 245±5
6 Coating Non-Circularity   % ≤6.0
7 Cladding-Coating Concentricity Error   μm ≤12.0
8 Cable Cutoff Wavelength   nm λcc≤1260
9 Attenuation(max.) 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
10 Fiber Type Corning SMF28-e



Technical Parameter



Cable Design
Fiber Count 1
Buffering Diameter 900μm
Tight Buffer Type Standard – strip up to 10cm or Easy strip
Tight Buffer Colour White (standard)
Tensile Strength Elements and/or Armored Layer 1 Aramid yarn
Outer Jacket Material

PVC/Flame-retardant, non-corrosive / low-smoke, zero-halogen

(FRNC / LSZH)

Outer Jacket Colour Yellow / Orange / Aqua
Outer Jacket Nominal Thickness 0.35mm

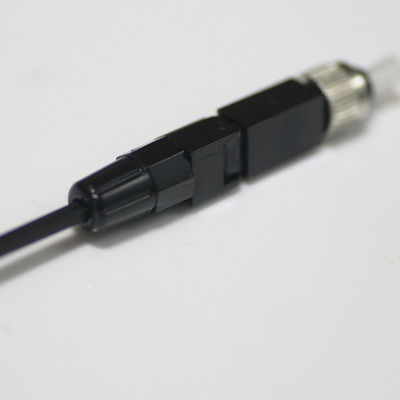

Pre Installed Fiber Optic Field Assembly Connectors 2.0x3.0mm FC UPC Multimode 0

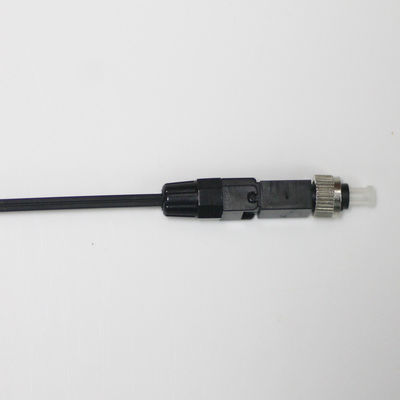

Pre Installed Fiber Optic Field Assembly Connectors 2.0x3.0mm FC UPC Multimode 1

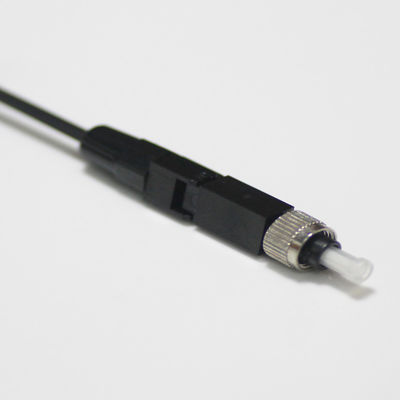

Pre Installed Fiber Optic Field Assembly Connectors 2.0x3.0mm FC UPC Multimode 2



Hangalaxy provides fast fiber optical pre-installed connector for both MultiMode as SingleMode fiber, compatible with most of today’s switch vendors. Hangalaxy’s Dual Fiber SFP’s support data ranges between 100 Mbit/s and 4.25 Gbps and distances up to 160 km. Go to the Hangalaxy SFP product range.
