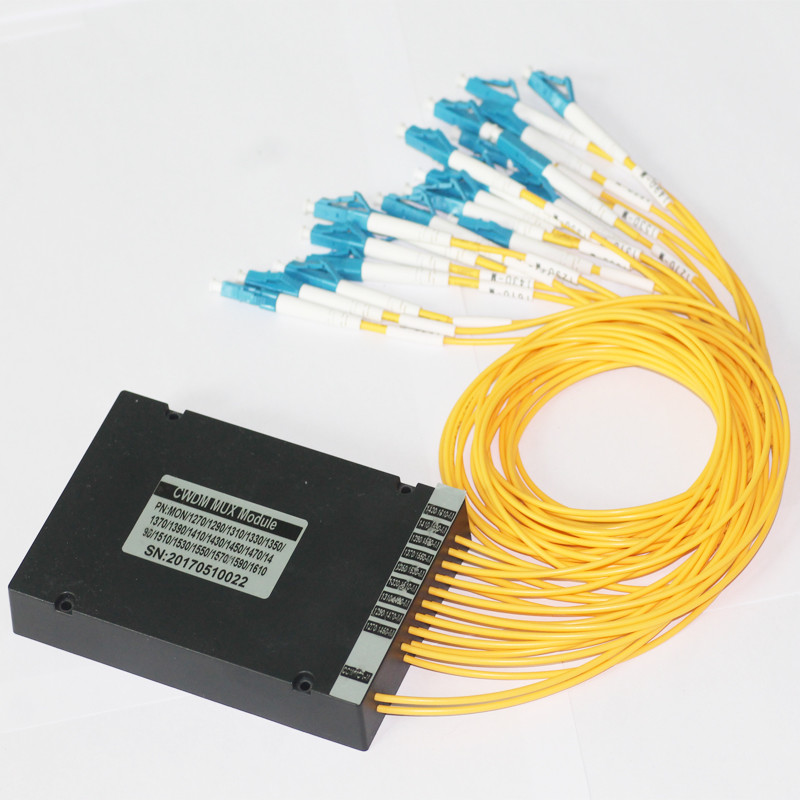

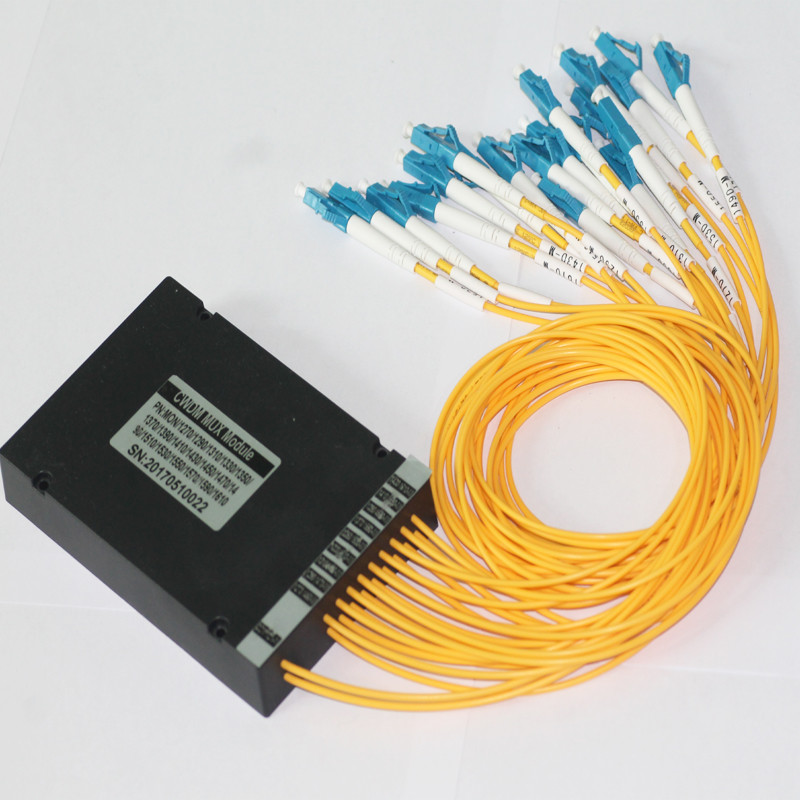

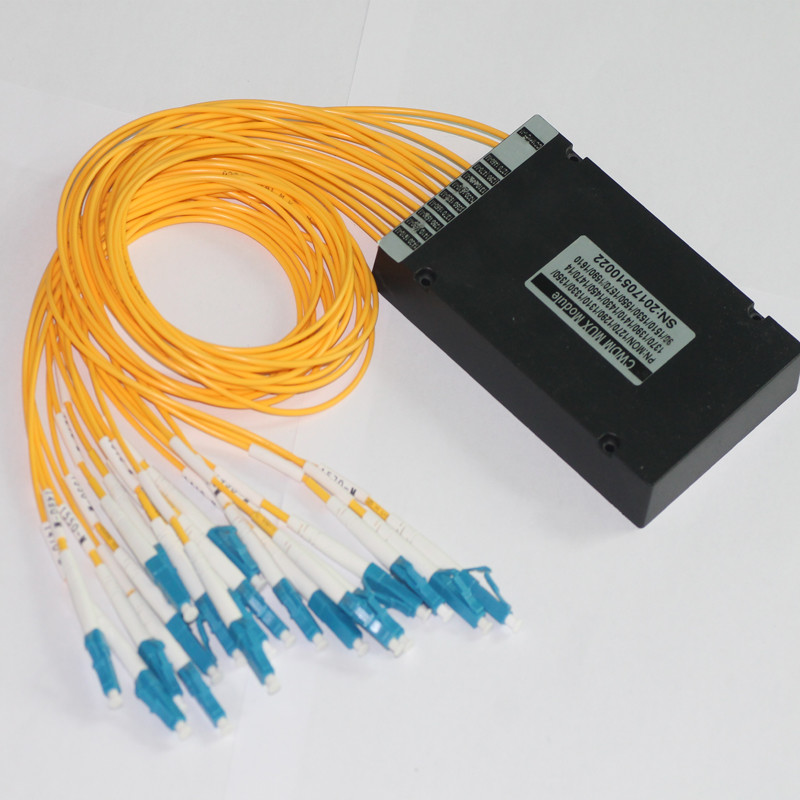

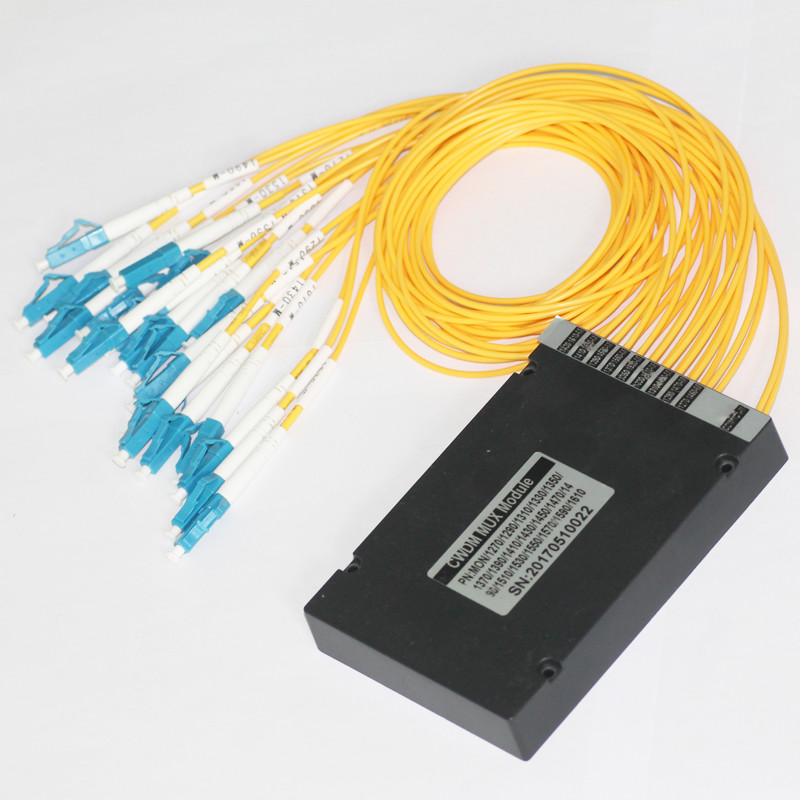

16CH LC UPC Fiber Optic DWDM Singlemode Demux Mux 20nm Channel Spacing
Place of Origin | China |
---|---|
Brand Name | Hangalaxy |
Certification | CE, FCC, RoHs, SGS, ISO9001 |
Model Number | HGYN-118 |
Minimum Order Quantity | MOQ Saying is 10pcs |
Price | Negotiation By email or Phone Call |
Packaging Details | 1PCS Each Individual Quality PE Bag |
Delivery Time | 7 Business Days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 5055PCS Monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOperating Wavelength | 1270 ~ 1611nm | Channel Spacing | 20nm |
---|---|---|---|
Channel Passband | CWL±6.5nm | Adjacent Channel Isolation | 30dB |
Directivity | 55dB | PDL | 0.2dB |
Connector Type | LC | Polish Type | UPC |
High Light | dwdm fiber optic cable,fiber optic dwdm |
16CH LC UPC Fiber Optic Singlemode DWDM Demux Mux Optical Mudule
DWDM(Dense Wavelength Division Multiplexing)is a Technology That Puts Data Different Sources Together on an Optical Fiber,with Each Signal Carried at the Same Time on Its Own Separate Light Wavelength.
Keyed Characteristics
1. Low Insertion Loss;
2. High Channel Isolation;
3. Excellent thermal stability;
4. High Stability and reliability;
5. Telcordia compliant;
6. RoHS compliant.
Application
● Metro/Access communication networks;
● Fiber optic instruments;
● Mobile optical networks.
Technical Parameter
Parameter | Unit | Value | ||
Pass Band Type | - | Flat-top | Gaussian | |
Channel Spacing | GHz | 150 | ||
Channel Number | CH | 17 | ||
Wavelength Accuracy | nm | ±0.05 | ||
1dB Pass Band | nm | ≥0.38 | ≥0.2 | |
3dB Pass Band | nm | ≥0.58 | ≥0.4 | |
Insertion Loss1 | dB | ≤6.0 Typ.4.5 | ≤3.5 Typ.2.8 | |
Ripple | dB | ≤0.5 | ≤1.5 | |
Uniformity | dB | ≤1.5 | ≤1.5 | |
Adjacent Crosstalk | dB | ≥23 | ≥26 | |
Non-adjacent Crosstalk | dB | ≥29 | ≥35 | |
Total Crosstalk | dB | ≥21 | ||
Polarization Dependent Loss(PDL) | dB | ≤0.5 Typ.0.25 | ≤0.7 Typ.0.35 | |
PMD2 | ps | ≤0.5 | ||
Chromatic Dispersion2 | ps/nm | ±20 | ||
Return Loss | dB | ≥40 | ||
Fiber |
Input Port | mm | Φ0.9 | |
Output Ribbon | - | - | ||
Fan Out | mm | Φ0.9 | ||
Operation Temperature | ℃ | -40~+85 | ||
Storage Temperature | ℃ | -40~+85 | ||
Package | mm | 80×40×9.6 |
Parameter | Unit | 16CH | 18CH | |
Operating Wavelength | nm | 1270 ~ 1611 | ||
Channel Spacing | nm | 20 | ||
Channel Passband | nm | CWL±6.5 | ||
Insertion Loss (Without Connectors) | Max. | dB | 1.6 | 1.8 |
Adjacent Channel Isolation | Min. | dB | 30 | |
Non-Adjacent Channel Isolation | Min. | dB | 45 | |
Directivity | Min. | dB | 55 | |
Return Loss | Min. | dB | 45 | |
Polarization Dependent Loss | Max. | dB | 0.2 | |
Polarization Mode Dispersion | Max. | dB | 0.3 | |
Passband Ripple | Max. | ps | 0.5 | |
Tensile Load | Min. | N | 5 | |
Power Handing | Min. | mW | 300 | |
Operating/Storage Temperature | ℃ | -40 ~ +80 | ||
Package Dimension (L x W x H) | mm | 50*50*6.6 |
