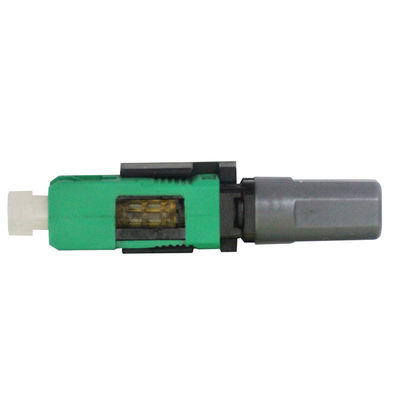

SC APC Fiber Optic Field Assembly Connectors 0.20dB 3.0mm Singlemode CATV

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: SGS, UL, ROHS
Model Number: 544
Minimum Order Quantity: MOQ is saying of 10000pcs
Price: Contact us
Packaging Details: 5pcs each PE pack
Delivery Time: 7 - 10 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 588888pcs monthly
Fiber Mode: Singlemode Connector Type: SC
Polish Type: APC Cable OD: 3.0mm
Color: Green Insertion Loss: 0.20dB
High Light:

SC APC Fiber Optic Field Assembly Connectors

,

0.20dB Fiber Optic Field Assembly Connectors

,

CATV Singlemode Fibre Optic Connector

3.0mm Singlemode SC APC Fiber Optic Field Assembly Quick Connector 0.20dB Insertion Loss



Item Description



EASYFast® 802 series are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or optical fibers. EASTFast® are compatible with 2.0 x 3.0mm (SC only) fiber optical cable.







Keyed Characteristic


• No epoxy, no Polish;
• Low insertion loss;
• Fiber can be reinserted up to 5 times;



Application



● All fiber interconnection;
● Telecom Distribution and Local Area Networks;
● FTTH and FTTx;
● Passive optical networks [ATM, WDM, Ethernet];
● Broadband, Cable TV(CATV).



Specification



Part Name Field Assembly Connector
Connector Type SC / APC & SC / UPC
Apply for FTTH Cable 2×3.0mm, Φ0.9mm, Φ2.0mm, Φ3.0mm
Length ≤52mm



Keyed Characteristics


● Linkage structure design, when docking with equipment and joints, the reserved microbend remains unchanged;
● Double V-slot structure design, fiber optic docking is stable and reliable;
● The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
● Easy to operate, fast construction, high installation success rate, long life cycle, easy maintenance in the later period.



SC APC Fiber Optic Field Assembly Connectors 0.20dB 3.0mm Singlemode CATV 0



SC APC Fiber Optic Field Assembly Connectors 0.20dB 3.0mm Singlemode CATV 1
