12 Cores Multimode Fiber Optic MPO MTP Cable / Multimode Fiber Optic Cable

Place of Origin China
Brand Name Hangalaxy
Certification CE, SGS, ROHS, UL
Model Number HGYN-018
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Mode ClearCurve OM3 Fiber Count 12
Cable Color Aqua Connector Type MTP
Cable OD 3.0mm Insertion Loss 0.5dB
Pin No Length 10ft
High Light

mpo cassette patch panel

,

fiber trunk cable

Leave a Message
Product Description

12 Cores MTP-MTP Female Fiber Multimode ClearCurve OM3 Optic Cable Aqua LSZH Jacket



The MTP is a mullti-fibre connector with the most popular accepting 12 cores. The connector was developed many years ago, primarily for use in pre-terminated systems. The pre-terminated systems allow fibre to be deployed and connected without the need for onsite termination. More recently the MTP (and the generic MPO connector) has been identified as the method of delivering parallel optic systems.



Key Characteristic



(1) High Density Fiber Management Solution;
(2) 8 or 12 Fibers per connecter;
(3) Mates to all MTP or MPO connectors;
(4) Precision polished for minimum insertion loss and back reflection;
(5) Push/Pull Connector Mating;
(6) Plenum Rated Cable;
(7) Meets EIA/TIA 568-B.3;
(8) Fanouts to discrete simplex connecters available;
(9) 50 and 62.5 micron core fiber available.



Application


(1) Local Area Network (LAN);
(2) Data communication network;
(3) Telecommunication optical transmission network;
(4) Optical access network(OAN);
(5) Active device termination;
(6) Fiber optics data transmission(FODT);
(7) Test Equipment;
(8) CATV.



Physical



Cable 50 micron 62.5 micron
Minimum Bend Radius 30mm 30mm
Core/Cladding Diameters 50/125um 62.5/125um
Certification/Flame Rating USA (UL)=OFNP, Canada (CSA)=OFN/FT6
Ferrule Material Glass Filled Resin
Guide Pins Surgical Grade Stainless Steel
Polish PC, 1 micron (typical) protrusion
Rematability (per EIA-455-21A) 200 200



Performance



Connectors (per termination) 50 micron 62.5 micron
Typical Insertion Loss 0.13-0.31 dB 0.10-0.24 dB
Maximum Insertion Loss 0.5dB 0.5dB
Maximum Return Loss 20.0dB 20.0dB
Standard Cable 850nm 1300nm
Cable Attenuation <5.0dB/km <3.0dB/km
Cable Attenuation @23º, Typ 3.5dB/km 0.75dB/km
LED Bandwidth-62.5u core >160MHz-km >500MHz-km
LED Bandwidth-50u core >500 MHz-km >500 MHz-km
Skew <45ps/m <45ps/m



Environmental



Operating Temperature Rating -5°C to +70°C (exceeds EIA/TIA 568-B.3)
Storage Temperature Rating -40°C to +70°C (exceeds EIA/TIA 568-B.3)

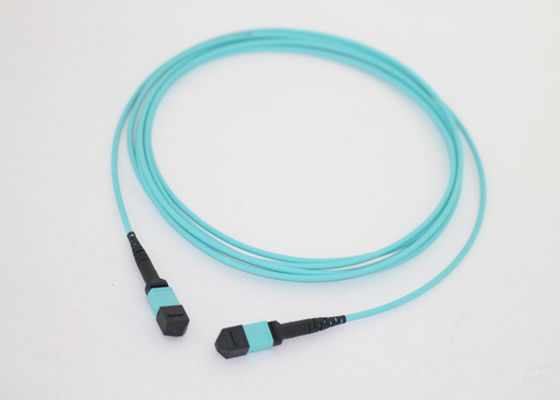

12 Cores Multimode Fiber Optic MPO MTP Cable / Multimode Fiber Optic Cable 0



Hangalaxy Factory

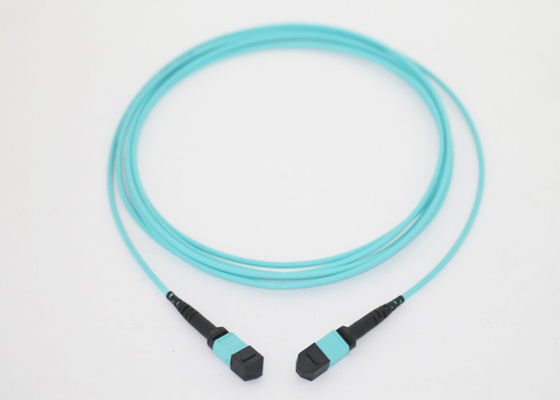

12 Cores Multimode Fiber Optic MPO MTP Cable / Multimode Fiber Optic Cable 1



Packing


(1) According to Stardard Export Packing.
(2) Carton box, wooden box, wooden pallet.

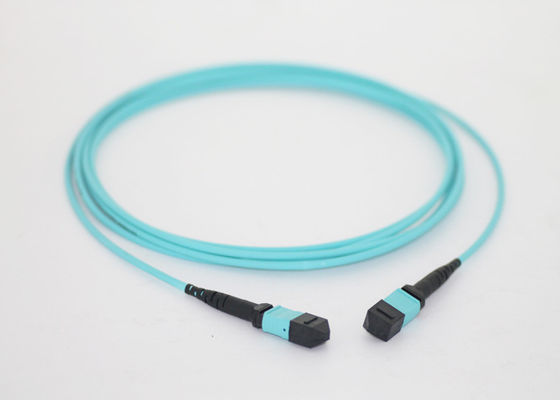

12 Cores Multimode Fiber Optic MPO MTP Cable / Multimode Fiber Optic Cable 2



Shipping


(1) International express such as UPS, TNT, DHL, etc.
(2) Internatioal air: CA, AA, EA, etc.
(3) By sea.



Hangalaxy Exhibition

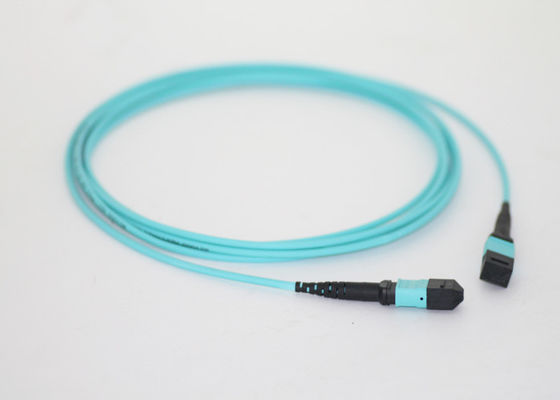

12 Cores Multimode Fiber Optic MPO MTP Cable / Multimode Fiber Optic Cable 3
