Sc Apc Fiber Connector For 2.0x3.0mm / FTTH Drop Cable 0.35dB Insertion Loss

Place of Origin China
Brand Name Hangalaxy
Certification CE, SGS, UL, ROHS
Model Number HGYN-002
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type SC Polish Type UPC
Color Blue Insertion Loss 0.35dB
Return Loss 55dB Cable OD 2.0x3.0
Housing Plastic Ferrule Cameric
High Light

lc apc fiber connector

,

sc apc fiber connector

Leave a Message
Product Description

Fiber Optic Field Assembly Connector SC/APC For 2.0x3.0mm FTTH Drop Cable



The Hangalaxy This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 2.0mm x 3.0mm jacket cable.



Features / Benefits



● Comply with TIA/EIA and IEC;
● Quick and easy fiber termination;
● RoHS compliant;
● Reusable termination capability [Up to 5 times];
● Easy to deploy fiber solution;
● High success rate of connections;
● Low Insertion & Back Reflection;
● No special tools required.



Application



● All fiber interconnection;
● Telecom Distribution and Local Area Networks;
● FTTH and FTTx;
● Passive optical networks [ATM, WDM, Ethernet];
● Broadband, Cable TV(CATV).



Technical Parameter



Category Specification
Applicable for Ф2.0 x 3.0mm Indoor Drop Cable
Fiber mode 9/125μm Singlemode
Polish Type APC / UPC
Dimension 55mm
Housing Green / Blue PC Plastic
Ferrule Material Ceramic(Zirconia)
Operation time S About 50(no fiber cut)
Insertion Loss dB ≤ 0.50
Insertion Loss Typical value dB ≤ 0.30
Return Loss dB ≥ 45.0
Fastening strength of naked fiber N ≥ 5
Tensile strength N ≥ 50
Reusable Time ≥ 10 times
Operating Temperature -40~+75
On-line tensile strength (10N) dB ΔIL≤ 0.3
Mechanical durability (500 times) dB ΔIL≤ 0.3

Drop-off test

(drop-off height4m,once per direction,totally 3 times)

dB ΔIL≤ 0.3
Conformance TIA/EIA 604-3

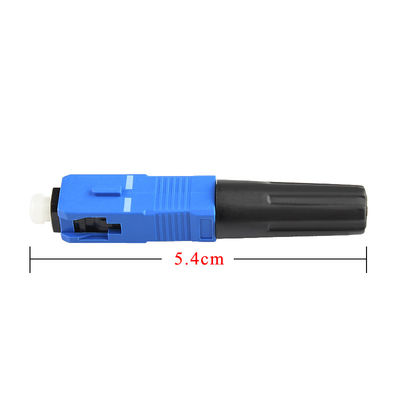

Sc Apc Fiber Connector For 2.0x3.0mm / FTTH Drop Cable 0.35dB Insertion Loss 0

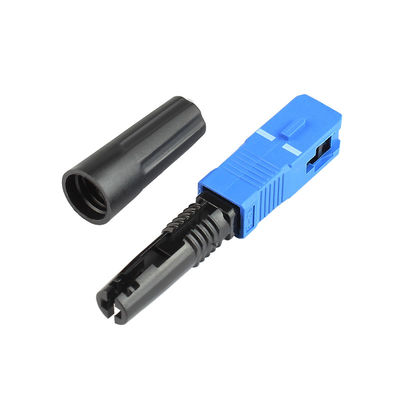

Sc Apc Fiber Connector For 2.0x3.0mm / FTTH Drop Cable 0.35dB Insertion Loss 1



Sc Apc Fiber Connector For 2.0x3.0mm / FTTH Drop Cable 0.35dB Insertion Loss 2



Advantages of Mechanical Splicer


● Mechanical splicer is ideal for used in FTTx projects, it does not require the fusion splicer to get to work, it can join the 2 optical fiberglass mechanically and precisely.



Packing Details for Reference (or Meet Customized Standard)



Outer Packing



  Size (cm) 49*32*32.5 49*32*17
QTY (Gift Box/Box) 50 50
QTY (Pcs/Box) 1000 1000
N.W (KG/Box) 6.8 3.4
G.W (KG/Box) 12 6.5kg
