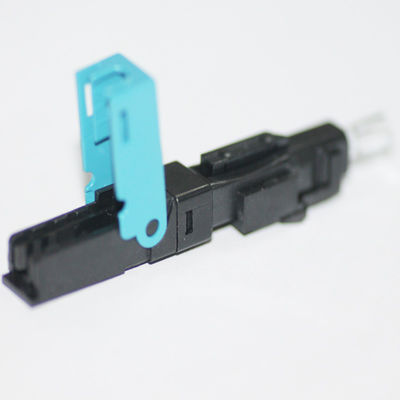

Sc Upc Fiber Connector Singlemode Pre Terminated Field Assembly 2.0x3.0mm

Place of Origin China
Brand Name Hangalaxy
Certification CE, UL, FCC, RoHs
Model Number HGYN-100
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Plastic Fiber Mode Singlmode, OS2
Fiber Count 1 Cable OD 2.0x3.0mm
Color Blue Connector Type SC
Ferrule Cameric Insertion Loss 0.35dB
High Light

lc apc fiber connector

,

sc apc fiber connector

Leave a Message
Product Description

SC UPC Fiber Optic Singlemode Pre-terminated Field Assembly Connector



The Field Assembly Connectors feature a pre-polished ferrule that couples to the fiber being terminated by precision mechanical alignment, insuring low loss with a proprietary gel. Compared with pre-polished field assembly connector, straight-through field assembly connector lessens one joint point and achieves low loss. Ferrule in optical fiber straight-through fast connector have no reserved fiber, there is no splice point in V-Groove, fiber end can be checked when construction, and without intermittent points in it. This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.



Keyed Characteristics



1. Easy assembly process.
2. Available in LC, SC, and ST connector styles.
3. Available in multimode or singlemode versions.
4. Factory polishing eliminates loss concerns
5. Fiber can be reseated.
6. No expensive tools required.
7. No epoxy required.
8. Anaerobic adhesive-style, field-installable connectors.
9. Most robust connection, ideal for indoor and outside plant applications.



Cable Technical Datasheet



No. Items Unit Specification
Single-mode
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter   μm 245±5
6 Coating Non-Circularity   % ≤6.0
7 Cladding-Coating Concentricity Error   μm ≤12.0
8 Cable Cutoff Wavelength   nm λcc≤1260
9 Attenuation(max.) 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
10 Fiber Type Corning SMF28-e



Technical Parameter



Cable Design
Fiber Count 1
Buffering Diameter 900μm
Tight Buffer Type Standard – strip up to 10cm or Easy strip
Tight Buffer Colour White (standard)
Tensile Strength Elements and/or Armored Layer 1 Aramid yarn
Outer Jacket Material

PVC/Flame-retardant, non-corrosive / low-smoke, zero-halogen

(FRNC / LSZH)

Outer Jacket Colour Yellow / Orange / Aqua
Outer Jacket Nominal Thickness 0.35mm



Sc Upc Fiber Connector Singlemode Pre Terminated Field Assembly 2.0x3.0mm 0



Sc Upc Fiber Connector Singlemode Pre Terminated Field Assembly 2.0x3.0mm 1



Sc Upc Fiber Connector Singlemode Pre Terminated Field Assembly 2.0x3.0mm 2



Application



1. Fiber optic communication system and telecommunication networks.
2. Fiber optic data transmission ; CATV ;
3. Optical access network.
4. Fibre to the Subscriber (FTTx) applications.
5. Optical cable interconnection.
6. Maintenance or emergency restoration of fiber networks.
7. Repair/replacement requirements ; Fiber optic equipment.



Hangalaxy provides fast fiber optical pre-installed connector works great, and Yes the connector can be screwed. Use it daily on our W&G Power meter for fibers.
