Hangalaxy 4K 8K HDMI Active Optical Cable / AOC Hdmi High Speed Cable 4k

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: SGS, CE, UL, FDA, ROHG
Model Number: HGYN-090
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15000PCS Monthly
Cable Length: 300m Connector Type: HDMI Standard Type A (Male) - HDMI Standard Type A (Male)
Connector Dimension: L5.07cm X W1.9cm X Thickness 9.1mm Data Speed: 18Gbps HDMI 2.0
Power Supply: No External Power Supply Power Consumption: 250mW
Cable Diameter: 4.1mm Tensile (Long-term / Short-term): 130N/230N
High Light:

hdmi high speed cable 4k


hdmi 2.1 48gbps cable

Hangalaxy 4K HDMI 2.0 AOC Active Optical Cable Long Distance Signal Transmission


In order to solve the longer transmission distance, copper wire manufacturers use circuit amplification chips. Although this method can increase the transmission distance, the disadvantages are that it is easy to burn out the main board of the main equipment, and it is weak in anti-electromagnetic and radio frequency signal interference. With the popularization of ultra-high-definition 4K pictures, projects often need to pass ultra-high-definition audio and video signals to a distance of more than ten meters or even hundreds of meters. The design and construction staff of many projects often struggle to solve the problem of transmitting ultra-high-definition signals and solving the problem of transmitting audio and video signals over long distances.


Benefits & Features


(1) 2.0 18Gbps HDMI AOC, Chip Power Consumption≤250mW;
(2) Support 4K @ 60hz, digital encoding format: 4: 4: 4 sampling;
(3) The optoelectronic module is packaged with a metal fully shielded inner shell, and the hybrid optical cable is fully shielded. It is highly resistant to electromagnetic radio frequency signal interference and has a transmission distance up to 150 meters;
(4) Using the transparent transmission technology for no driver program and well compatible for. Its easy Plug and Play;

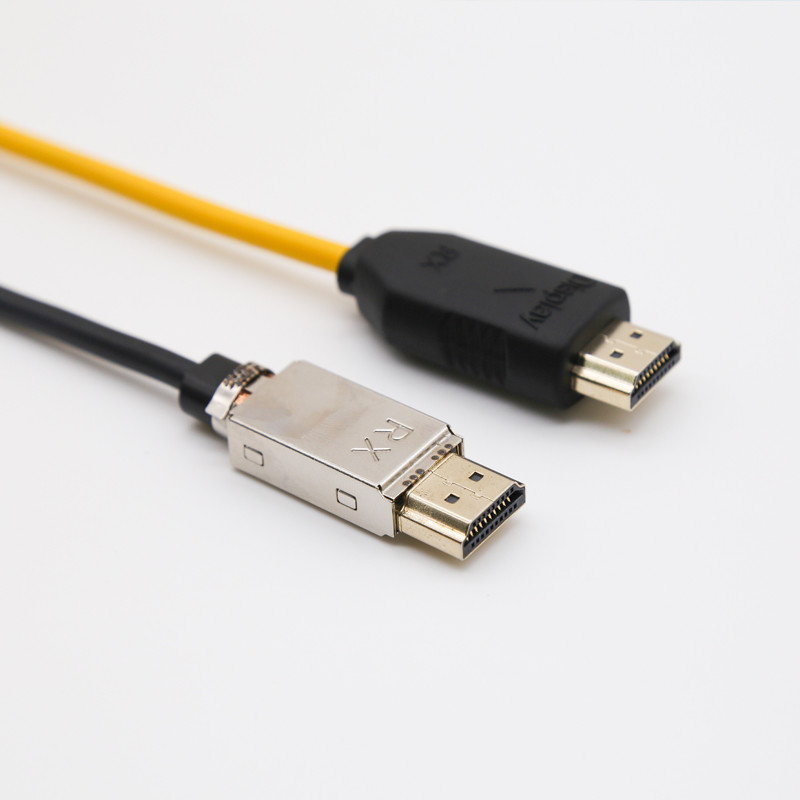

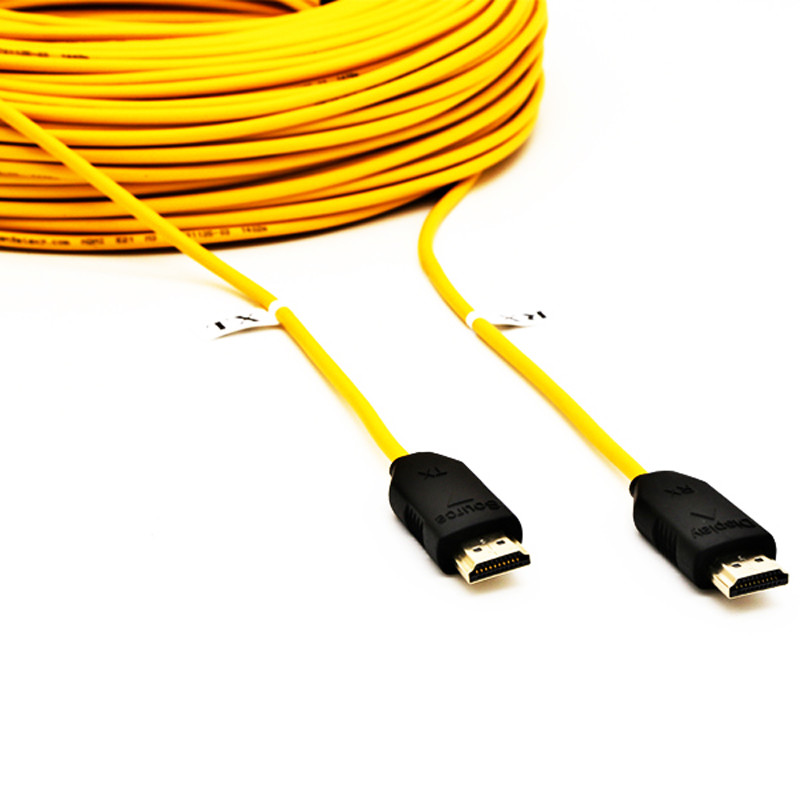

(5) Our HDMI connector made of PC plastic by injection molding, marked it as TX / RX, Source / Display and ▶◀, so the cable has fixed directivity and no error installation;
(5) No power supply required, the Source End make it 5V from the HDMI port of the main device, and the copper cable core in the hybrid cable supplies power to the display-side photoelectric module;
(6) Audio and video signals are transmitted by optical fiber to ensure the signal is true, no attenuation, and good audiovisual effect;
(7) Support ARC Audio Return ( Within 50meters );
(8) No support Ethernet, supports HDCP2.2; 1.4; HDR function;

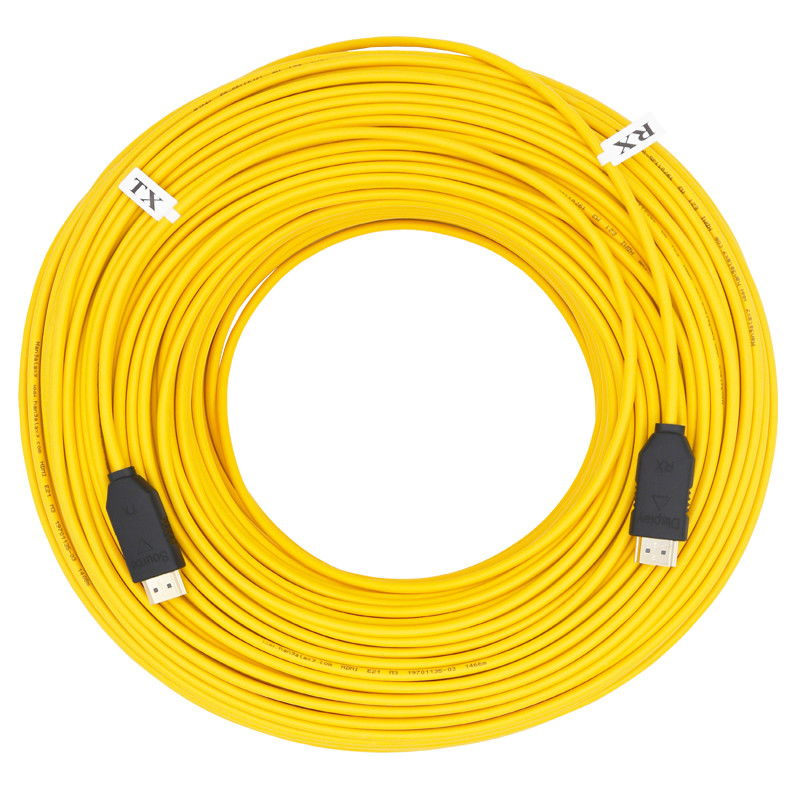

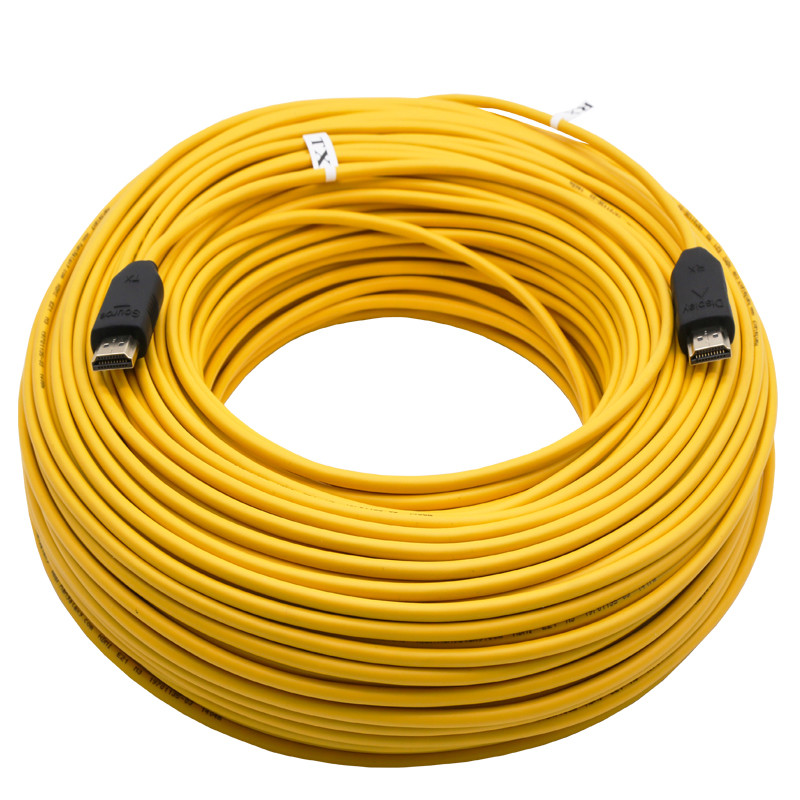

(9) Outer Jacket: TPU, Yellow;
(10) The cable is more thinner, lighter and softer.


Technical Parameter


Cable Length 15m/20m/25m/30m……90m/100m…150m
Connector Type HDMI Standard Type A (Male) - HDMI Standard Type A (Male)
Connector Dimension L5.07cm x W1.9cm x Thickness 9.1mm
Data Speed 18Gbps HDMI 2.0, support 4K@60HZ, Ultra HD image transmission
Power Supply No external power supply, 5V from HDMI port of the main device
Power Consumption ≦250mW


Physical / Environment
Cable Diameter 4.1mm
Tensile (Long-term / Short-term) 130N/230N
Bending (Long-term / Short-term) 200N/400N
Minimum Winding Radius 18mm
Operating / Storage Temp. 0℃ ~ 50℃ /-20℃ ~ 70℃


Products Model and Spec


Product Name Model AOC Length






Hangalaxy HDMI

AOC Transmission System

(2.0 S Series)

HD/2.0-15 S 15mtrs
HD/2.0-20 S 20mtrs
HD/2.0-25 S 25mtrs
HD/2.0-30 S 30mtrs
HD/2.0-35 S 35mtrs
HD/2.0-40 S 40mtrs
HD/2.0-45 S 45mtrs
HD/2.0-110 S 110mtrs
HD/2.0-120 S 120mtrs
HD/2.0-130 S 130mtrs
HD/2.0-140 S 140mtrs
HD/2.0-150 S 150mtrs


Hangalaxy 4K 8K HDMI Active Optical Cable / AOC Hdmi High Speed Cable 4k 0




(1) Home Theatre;
(2) HD video Conference System;
(3) Large Outdoor Screen Display;
(4) Large Medical Imaging System;
(5) Radio and Television System;
(6) HD Surveillance System.
