FBG Reflector Grating In Optical Fiber Green Housing Low Insertion Loss

  • FBG Reflector Grating In Optical Fiber Green Housing Low Insertion Loss
  • FBG Reflector Grating In Optical Fiber Green Housing Low Insertion Loss
Place of Origin China
Brand Name Hangalaxy
Certification ISO9001, CE, RohS, SGS, UL
Model Number HGYN-002787
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC Polish Type APC
Wavelength 1650nm Color Green
Material ABS Plastic Pass Band 1.0dB
PDL 0.4dB Max Power Optical Handling 27dBm
High Light

fiber bragg grating reflector

,

optical reflector
Leave a Message
Product Description

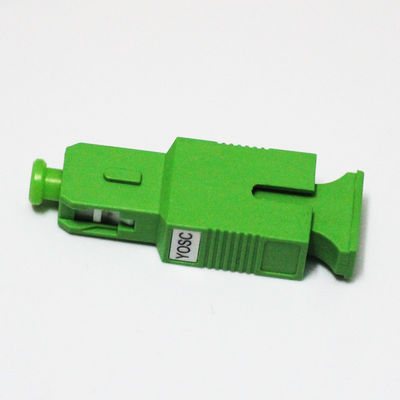

27dBm 1650nm OTDR SC APC Fiber Optic FBG Reflector Green Housing

 Characteristics



(1) High stability and reliability.
(2) Remote real-time detection.
(3) Low insertion loss.
(4) Easy connection for adapter structure.



Application


​The SC pigtail fiber (FBG) reflector provided by Hangalaxy has the advantages of low insertion loss, high reflectivity, convenient installation, etc., and is an ideal optical device for network link monitoring; It is widely used in PON network,OTDR testing, central computer room testing, FTTX and other fields.



Specification



Item Parameter Specification Unit Remarks
1 Wavelength Range Pass Band 1260~1625 nm -
    Reflect Band 1644.5~1655.5 nm





2





Pass Band



IL

 ≤1.0 dB @1260~1360
≤1.0 dB @1460~1600
≤1.5 dB @1600~1625



ORL

 >35 dB @1260~1580
>30 dB @1580~1620
>20 dB @1620~1625
3 Reflect Band IL >21 dB @1644.5~1655.5
ORL ≤1.0 dB @1644.5~1655.5
4 PDL ≤0.4 dB @1260~1600
5 Ripple ≤0.6 dB @1644.5~1655.5
6 TDL ≤0.5 dB @1260~1600
7 Max Power Optical Handling 27 dBm -
8 Plug Time >500 Times -
9 Connector Mode LC/APC - -



Work & Storage Conditions



Parameter Specification Unit
Working Temp. -25 ~ +65 ℃
Working Humidity 5 ~ 95 %RH
Storage Temp. -40 ~ +85 ℃
Working Humidity 5 ~ 95 %RH



Parameter Specification Unit Remarks
Grating Type High Reflectivity Grating Low Reflectivity Grating - nm
Center Wavelength 1064±0.5 1064±0.5 %
Matching Tolerance 0.2 nm
Bandwidth 2±0.2 1±0.2 nm Customizable
SMSR >15 dB
Withstand Power 30W, 100W -
Tensile Strength 80 Kpsi
Pigtail Length 0.5 m Customizable
Fiber Type Nufren-LMA-GDF-10/130-M - Customizable







Hangalaxy FBG Optical Reflector Workshop







OEM/ODM Service


The OTDR can determine whether the fiber line is normal by detecting the signal reflected by the fiber grating reflector. When the reflected signal is lower than the normal value, the line loss is too large; when the reflection value is 0, the optical fiber line is broken. Therefore, we can maintain the fiber line in time by the real-time monitoring of the fiber line.



Packing


(1) According to Stardard Export Packing;
(2) Carton box, wooden box, wooden pallet.



Shipping


(1) International express such as UPS, TNT, DHL, etc;
(2) Internatioal air: CA, AA, EA, etc;
(3) By sea.
