|Connector Type:||SC||Polishing Type:||APC|
|Cable OD:||2.0 X 3.0mm||Length:||55mm|
FTTH Fiber Optic Assembly Connector,
FCC Fiber Optic Assembly Connector,
SC APC Optical Fiber Connector

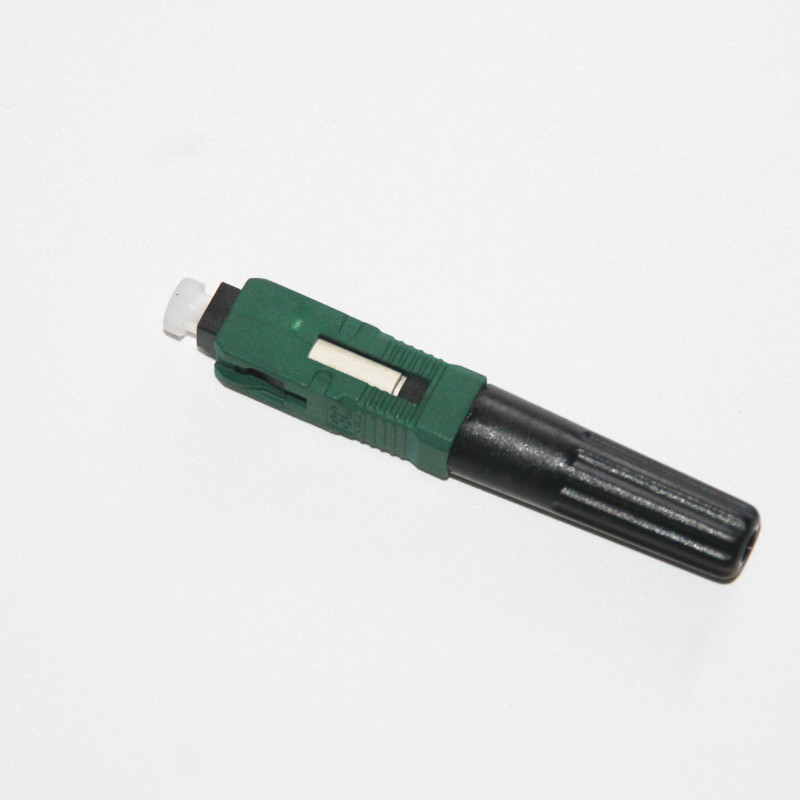

FTTH 2.0 x 3.0mm SC APC Polishing Fiber Optic Fast Assembly Connector
1, Item Description
This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 2.0mm x 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.
● All fiber interconnection;
● Telecom Distribution and Local Area Networks;
● FTTH and FTTx;
● Passive optical networks [ATM, WDM, Ethernet];
● Broadband, Cable TV(CATV).
3, Advantages of Mechanical Splicer
(1) Linkage structure design, when docking with equipment and joints, the reserved microbend remains unchanged;
(2) Double V-slot structure design, fiber optic docking is stable and reliable;
(3) The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
(4) Easy to operate, fast construction, high installation success rate, long life cycle, easy maintenance in the later period.
4, Technical Parameter
|Applicable for||3.1 x 2.0mm Drop cable,φ0.25 mm & φ0.90 mm Fiber|
|Optical fiber diameter||125μm (652 & 657)|
|Tight buffer diameter (μm)||250 μm|
|Fiber mode||Single & multi mode|
|Operation time||About 60s (no fiber cut)|
|Insert loss||≤ 0.15dB (1310nm & 1550nm)|
|Return loss||≤ -40dB|
|Fastening strength of naked fiber||>5 N|
|Fastening strength of naked fiber holder||>10 N|
|Repeatability (10 times)||△ IL ≤ 0.2dB △ RL ≤ 5dB|
|Inspection Item||Inspection Requirements||Judgement Standard|
|Insertion Loss||Loss detector standard line detection method|
PC: average value: ≤0.2dB, maximum value: ≤0.4dB,
|Return Loss||Loss detector standard line detection method||PC: ≥ 40 dB, APC: ≥ 50 dB.|
|Average Assembly Time||Normal skilled operator||≤2.5Mins|
|One Assembly Success rate||Normal skilled operator||≥98%|
|Repeatability||Insert 10 times||Insertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, such as deformation, cracks, Chi and other phenomena.|
|High Temperature||+85℃, 96hrs||Insertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, such as deformation, cracks, Chi and other phenomena.|
|Low Temperature||-45℃, 96hrs||Insertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, such as deformation, cracks, Chi and other phenomena.|
|Warm Cycle||-40℃ ~ +85℃, 30 cycles, a total of 240hrs|
|Damp Heat||+75℃, 95%, 96hrs|
|Soaking Water||25±2℃, 168hrs, tap water|
|Repeated Assembly||Assembly Times: 5 Times||Insertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, no obvious scratches on the surface of the pin.|
|Mechanical Durability||Plug and Pull>500 Times|
Cable Type: 20N, online measurement;
5, Disadvantages of Mechanical Fiber Splicer
Fiber optic mechanical splices have their cons too.
> Higher insertion loss. The typical insertion loss for a mechanical splice is about 0.2dB which is significantly higher than the 0.02dB loss for typical fusion splice.
> Mechanical splices are typically for multimode fibers. The tough alignment tolerance for single mode fibers makes it hard for mechanical splices to meet
> Mechanical splice is more expensive than fusion splices. But if you take into account the expensive fusion splicing machines that fusion splices need, the average cost is actually much lower for mechanical splice if you just do a few splices.
> Since the refractive index of most index matching compounds varies with temperature, so the optical performance of a mechanical splice can be sensitive to ambient temperature
> Mechanical splices are not thought to be as reliable as fusion splices over long periods of time
> Mechanical splices are used only in relatively benign environments such as inside an office building The principle of mechanical splice is simple and straightforward. Two fibers are stripped, cleaned and cleaved. They are then aligned and held in position either by epoxy resin or by mechanical clips.
