SC APC Fiber Optical Connector 3.0x2.0mm

Place of Origin China
Brand Name Hangalaxy
Certification CE, FDA, SGS, RoHs, ISO9001:2008
Model Number HGYN736
Minimum Order Quantity MOQ Saying is 1000pcs
Price Negotiation By email or Phone Call
Packaging Details 10PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability 250000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC Plug Polish Type APC
Insertion Loss 0.25dB Return Loss 65dB
Housing PC Plastic Dimension (mm) 50
Tensile Strength (N) >20 Individual Weight 0.003kg
High Light

SC APC Fiber Optical Connector

,

SGS Fiber Optical Connector

,

3.0x2.0mm Drop Cable Connectors

Leave a Message
Product Description

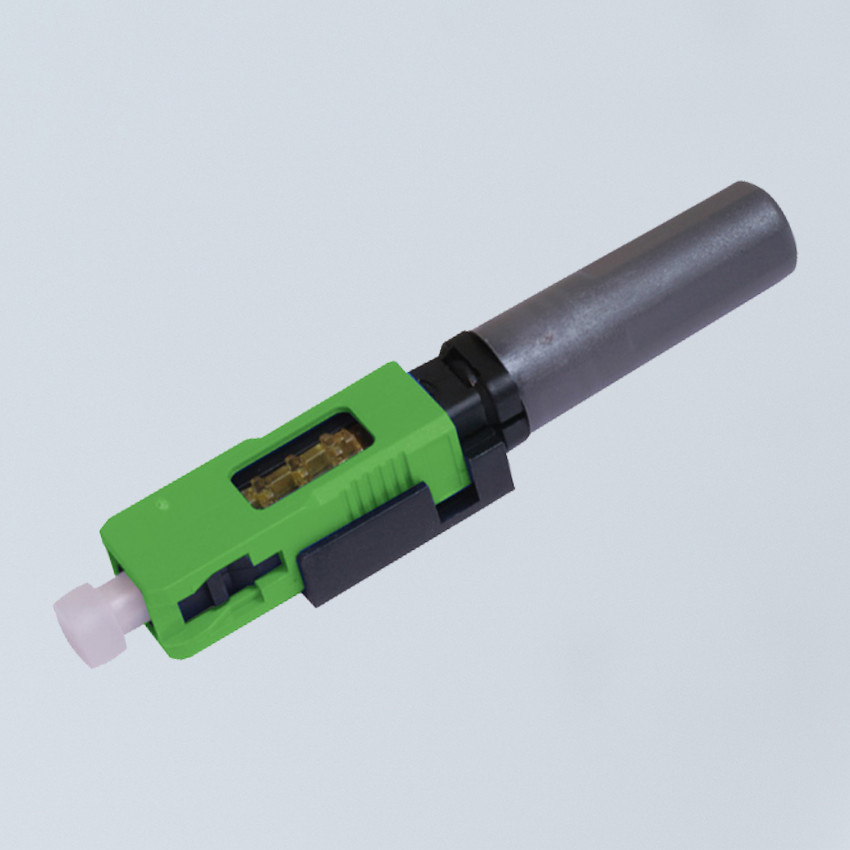

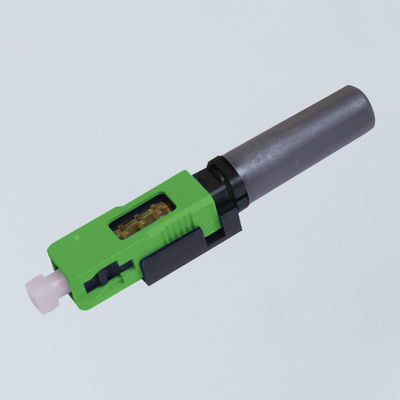

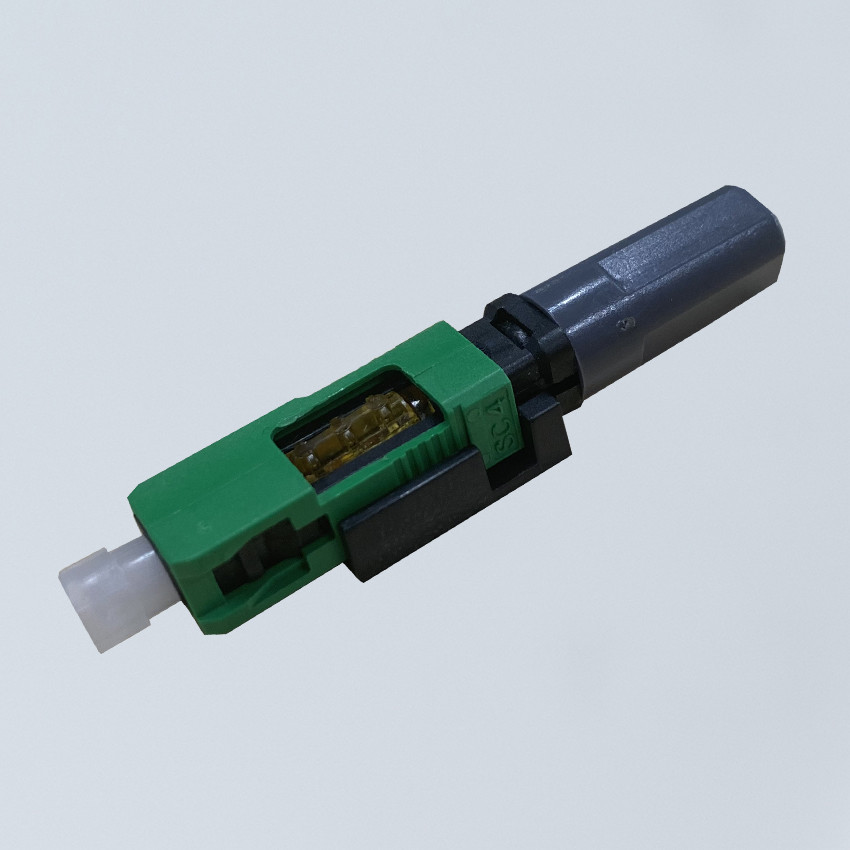

3.0 x 2.0mm SC APC Green Fiber Optical Field Assembly Connector



Product Description



This kind of Field Assembly SC Connectors from NEATEL is designed for quick termination and fiber network recovery without using fusion splicer. And it is applied in Thailand Telecom Projects for many years, The features of fast and easy to use, these connectors suit all operations with high precision and high reliability functions.



Feature



1, Better Ratio of Performance over Cost.
2, Push-Pull design.
3, Comes with wedge unit (exclude stripper and cleaver).
4, More convenient and save time.



Technical Parameter



Part No. NT-SCF002
Cable Size (mm) 2.0x3.0mm Drop Cable
Polishing Type APC / UPC
Housing Green / Blue
Ferrule Material Ceramic (Zirconia)
Dimension (mm) 50
Insertion Loss (dB) 0.3 (Typical); 0.5 (Max)
Return Loss (dB) UPC ≥ 40; APC ≥ 60
Tensile Strength (N) >20
Individual Weight 0.003kg
