IL 0.25dB SC APC Singlemode Field Assembly Optical Fast Connector

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: CE, FDA, SGS, RoHs, ISO9001:2008
Model Number: 888
Minimum Order Quantity: MOQ Saying is 5000pcs
Packaging Details: 10PCS Each Individual Quality PE Bag
Delivery Time: 7-10 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2500000PCS Monthly
Connector Type: SC APC Fiber Mode: Singlemode
Material: PC Plastic Housing: Green
Insertion Loss: 0.25dB Return Loss: 55dB

IL 0.25dB SC APC Singlemode Field Assembly Optical Fast Connector



The Hangalaxy his kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.



Feature



● Comply with TIA/EIA and IEC;
● Quick and easy fiber termination;
● RoHS compliant;
● Reusable termination capability [Up to 5 times];
● Easy to deploy fiber solution;
● High success rate of connections;
● Low Insertion & Back Reflection;
● No special tools required.

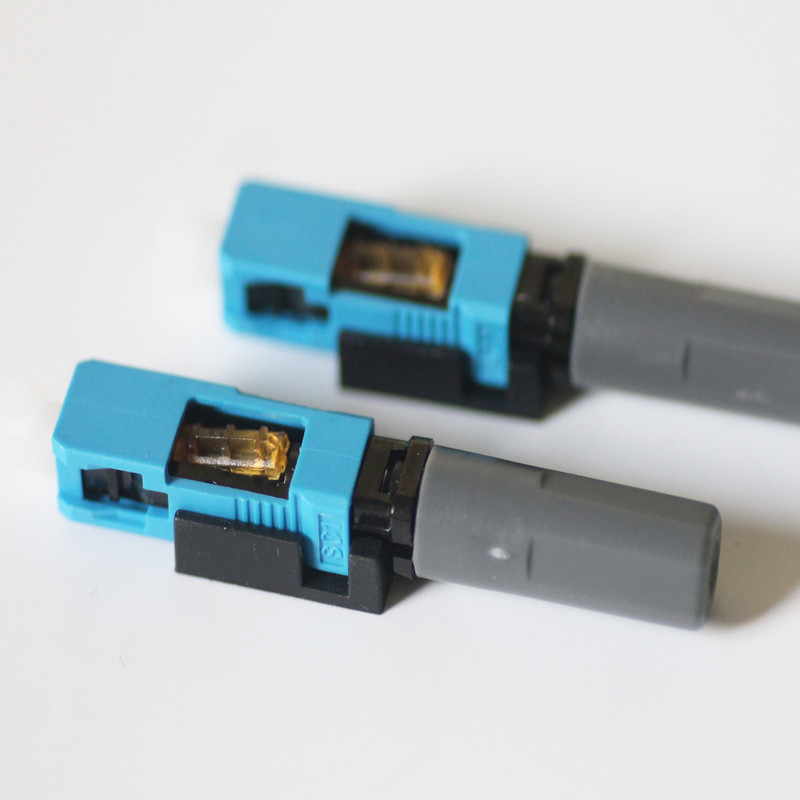

IL 0.25dB SC APC Singlemode Field Assembly Optical Fast Connector 0



IL 0.25dB SC APC Singlemode Field Assembly Optical Fast Connector 1



Application



● All fiber interconnection;
● Telecom Distribution and Local Area Networks;
● FTTH and FTTx;
● Passive optical networks [ATM, WDM, Ethernet];
● Broadband, Cable TV(CATV).



Specification



Category Specification
Applicable for Ф2.0 x 3.0mm Indoor Drop Cable
Fiber mode 9/125μm Singlemode
Polish Type APC / UPC
Dimension 55mm
Housing Green / Blue PC Plastic
Ferrule Material Ceramic(Zirconia)
Operation time S About 50(no fiber cut)
Insertion Loss dB ≤ 0.50
Insertion Loss Typical value dB ≤ 0.30
Return Loss dB ≥ 45.0
Fastening strength of naked fiber N ≥ 5
Tensile strength N ≥ 50
Reusable Time ≥ 10 times
Operating Temperature -40~+75
On-line tensile strength (10N) dB ΔIL≤ 0.3
Mechanical durability (500 times) dB ΔIL≤ 0.3

Drop-off test

(drop-off height4m,once per direction,totally 3 times)

dB ΔIL≤ 0.3
Conformance TIA/EIA 604-3



Advantages of Mechanical Splicer



Mechanical splicer is ideal for used in FTTx projects, it does not require the fusion splicer to get to work, it can join the 2 optical fiberglass mechanically and precisely.



> Mechanical splices require no power supplies;
> Many mechanical fiber splice designs require no extra tools beyond a fiber stripper and fiber cleaver;
> They can be used in situations where fusion splicing is not practical or impossible;
> Mechanical splices can be made within a couple of minutes, this makes it ideal for temporary connections.
