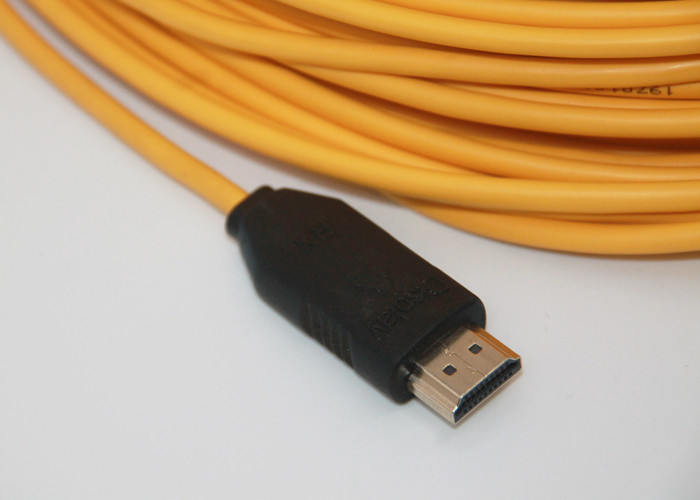

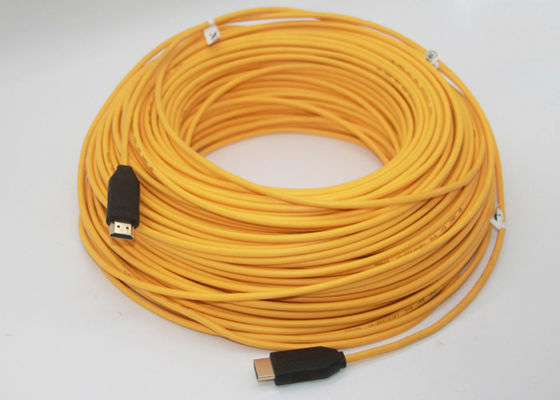

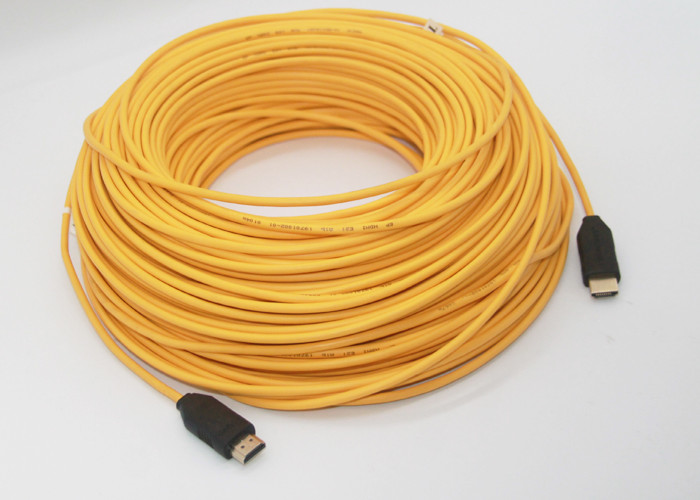

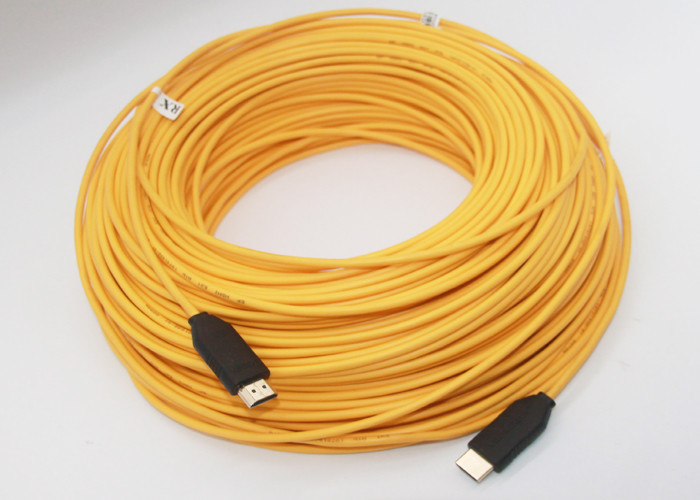

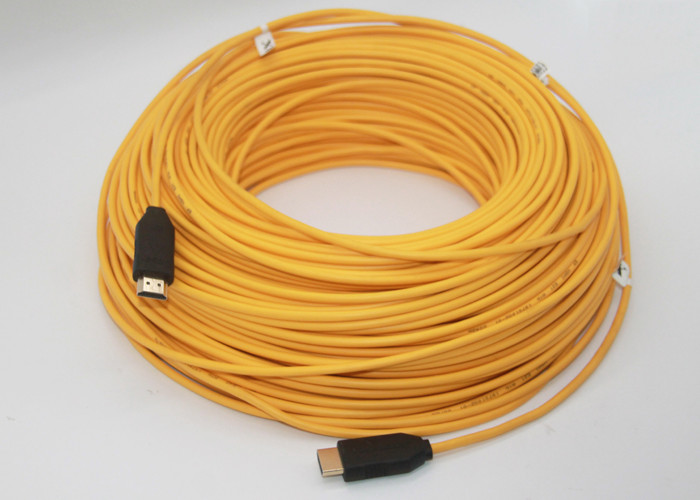

150m Pure 4K 8K HDMI Active Optical Cable LSZH Yellow Jacket 250mW Consumption

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: CE, FDA, SGS, RoHs, ISO9001:2008
Model Number: HGYN-011
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25055PCS Monthly
Cable Length: 150m Connector Type: HDMI Standard Type A (Male) - HDMI Standard Type A (Male)
Material: LSZH Data Speed: 18Gbps HDMI 2.0
Power Supply: No External Power Supply, 5V From HDMI Port Of The Main Device Power Consumption: 250mW
High Light:

hdmi 2.0 active optical cable


hdmi 2.1 48gbps cable

150m 18Gbps 4K HDMI 2.0 Pure Fiber Active Optical Cable LSZH Yellow Jacket


Item Description


Here our Hanglaxy brand using a fiber optic cable cable for optimizing the whole HDMI signal transmission system solution which is a professional solution to the long-distance transmission of 4K / 8k signals. We developed this solution in 2014 for few years ahead, we using the advanced photoelectric conversion technology and glass fiber transmission, integrated with chips and software go through the hybrid optical cable then achieve 4K / 8K audio and video signals transmission. For this technology and solution more than a hundred meters signal transmission. As a result, long distance and stable signal transmission problem get solved. So highly integrated with optical fiber cable can transmit 4K / 8K signals over 300 meters without loss, effectively solving the problem of transmission link stability. Compared with traditional copper wires, our HDMI AOC has the advantages of longer transmission distance, better signal quality, no electromagnetic interference, stable transmission links, thinner, softer, and lighter cables, this is our transmission system solution.




(1) Audio and video signals are transmitted by optical fiber to ensure the signal is true, no attenuation, and good audiovisual effect;
(2) Support ARC Audio Return (Within 50meters);
(3) No support Ethernet, supports HDCP2.2; 1.4; HDR function;
(4) Outer Jacket: TPU, Yellow;




Cable Length 15m/20m/25m/30m……90m/100m…150m
Cable Diameter 4.1mm
Tensile (Long-term / Short-term) 130N / 230N
Crush (Long-term / Short-term) 200N / 400N
Bend Radius (Dynamic / Static) 80mm / 40mm
Operating Temp. / Storage Temp. -10℃ ~ +50℃ / -20℃ ~ +80℃
Weight 50m<1kg
Connector Type HDMI Standard Type A (Male) - HDMI Standard Type A (Male)
Power Supply No external power supply, 5V from HDMI port of the main device
Power Consumption <250mW
Length Request 10m / 20m / 60m......100m / 300m (Has to be customized over 150m)
Minimum Winding Radius Up to 1080P/60Hz Full HD, 8-bit, 3D Deep Color
Connector Dimension L5.07cm x W1.9cm x Thickness 9.1mm


Products Model and Spec


Product Name Model AOC Length
Hangalaxy HDMI AOC Transmission System (2.0 S Series) HD/2.0-15 S 15mtrs
HD/2.0-30 S 30mtrs
HD/2.0-120 S 120mtrs
HD/2.0-150 S 150mtrs


Practical Advantages


In the current audio and video market, for signal transmission over a longer distance of more than 15 meters, the following two methods are usually used in industry engineering projects:


1. Network extender solution: One receive and one send network extender + network cable;
2. Digital Optical Transceiver Solution: One receive one light terminal + optical fiber. Although these two transmission methods have solved the problem of long-distance signal transmission to a certain extent, new problems have emerged: compressed bandwidth and signal delay caused by insufficient bandwidth; the link requires external power, and there are many connected devices, many interfaces, As a result, the stability of the signal transmission link is poor, the signal is easily get jammed, and it is not easy to be well protected; many new problems cannot be properly resolved.


Hangalaxy HDMI 2.0 S Series Solution


150m Pure 4K 8K HDMI Active Optical Cable LSZH Yellow Jacket 250mW Consumption 0




(1) Home Theatre;
(2) HD Video Conference System;
(3) Large Outdoor Screen Display;
(4) Large Medical Imaging System;
(5) Radio and Television System;
(6) HD Surveillance System.


150m Pure 4K 8K HDMI Active Optical Cable LSZH Yellow Jacket 250mW Consumption 1


Shipment Method



While it’s often considered dated, train or rail shipping is still a viable and economical way to ship freight. It can haul LTL or truckload shipments from one destination to another, or in combination with other modes of transportation.



If you need freight weighing more than 15,000 pounds shipped within the country, truckload shipping is the way to go. Truckload (TL) shipments usually deliver on the same trailer they were picked up on, limiting the potential for loss or damage.



If you don’t have quite enough freight for a full truckload, you may consider a less-than-truckload (LTL). An LTL load holds shipments for several shippers, organized into one shipment according to destination, class and delivery time.



Large ocean vessels can move freight from country to country, usually in large, metal, corrugated containers. This is the preferred method of shipping large amounts of freight.


2019 ISE Exhibition


150m Pure 4K 8K HDMI Active Optical Cable LSZH Yellow Jacket 250mW Consumption 2
