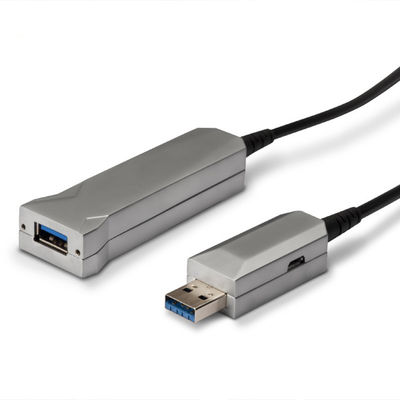

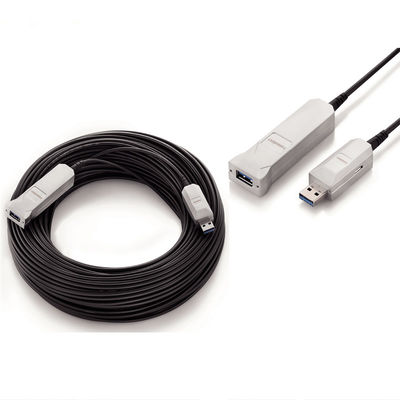

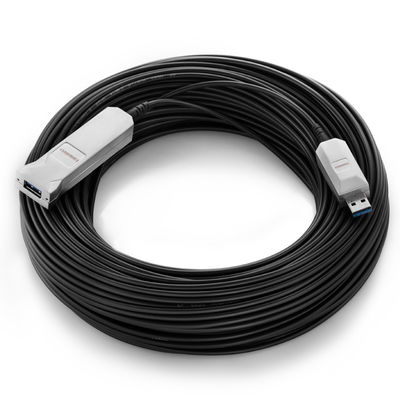

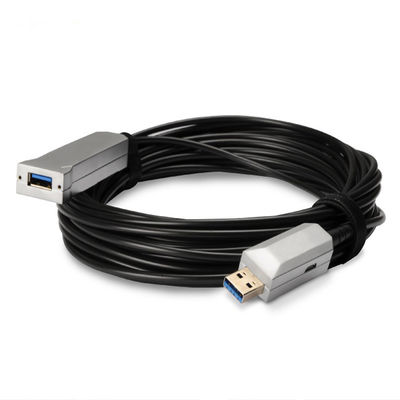

5Gbps USB3.0 AOC USB Active Optical Cable With Power Supply TPU Black Jacket
| Place of Origin | China |
|---|---|
| Brand Name | Hangalaxy |
| Certification | CE, FDA, SGS, ROHS |
| Model Number | HGYN-258 |
| Minimum Order Quantity | MOQ Saying is 10pcs |
| Price | Negotiation By email or Phone Call |
| Packaging Details | 1PCS Each Individual Quality PE Bag |
| Delivery Time | 7 Business Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 25055PCS Monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | TPU | Cable | 4.1mm |
|---|---|---|---|
| Fiber Type | OM3 | Length | 300m |
| Type | USB3.0 | Speed Rate | 5Gbps |
| Host Side | USB Power Supply | Power Consumption | 0.94W |
| High Light | usb 3.0 active optical cable,aoc optical cable |
||
Product Description
5Gbps USB3.0 AOC Active Optical Cable With Power Supply TPU Black Black Jacket
The USB 3.0 active optical cable is designed to be fully compliant with SuperSpeed USB electrical specifications and uses electrical-to-optical conversion on the cable ends to improve cable speed and distance performance that supports much longer distances than standard cable in copper, with lengths up to 100 meters. Thanks to an ultra-thin profile and a long reach, USB 3.0 AOC breaks the distance barrier and introduces USB 3.0 devices into a completely new range of applications, such as long-distance viewing, security and high-definition surveillance, the control of industrial and medical machines. AOC offers a quick solution to provide longer cables for the USB 3.0 application. Hangalaxy this kind of World’s very first Active Optical Cable + coaxial hybrid cable, No need of external conversion adapter.
Features & Benefits
1.Using active hybrid cable, integrated copper cable to supply power to the equipment. When the power supply of A type head is insufficient, the power supply capacity can be increased by micro USB B head;
2.Plug and play without driver dependent, no eternal power needed, highly resistant with EMI and RFI;
3. Backward compatible with USB2.0 / 1.1 device, greatly improve the bandwidth of USB2.0 devices.
Technical Parameter
| Connector Type | USB3.0 host port standard type A male head, USB3.0 devices port standard type A female seat (with locking screw hole) |
| Data Rate | 5Gbps, also compatible for USB2.0 / 1.1 |
| Host Side Device Side Supply Current | USB Bus Power Supply |
| Power Consumption | 940mW |
|
Dimension of the End |
Host Head: 44mm / 27mm / 13mm Device Side: 82mm / 26mm / 14.5mm |
| Cable Diameter | 3mm |
| Bend Radius | 20mm |
| Operating Temp. / Storage Temp. | -10℃ ~ +55℃ / -20℃ ~ +80℃ |
| Length Request | 10m / 20m / 50m/.....50m |
Application
(1) Convert the USB electrical data signal into an optical signal;
(2) Metal connector covers for superior EMI performance;
(3) Low energy consumption;
(4) Plug and play, no driver installation required;
(5) Lighter, thinner, cable diameter of only 4.6 mm;
(6) Windows and Mac compatible.
Package Contents
(1) USB 3.0 AOC 20m fiber optic extension;
(2) USB A / Micro B cable 1 meter;
(3) 5V 2.1A USB power supply.
Hanglaxy Exhibition
USD3.0 AOC Cabling Solution
As a Results
(1) Adopt Hangalaxy integrated USB3.0 AOC, and our each cable is highly integrated in the factory, customized and tested, two ports in one cable, less interface, stronger stability, standard length saying 10 meters to 100 meters .
(2) Using Hangalaxy's USB3.0 integrated AOC, the required power is directly taken from the USB interface of the main device (also supports auxiliary power supply), 5V voltage, the main device is stable, the voltage is stable, and the signal is naturally more stable ;
(3) It adopts Hangalaxy integrated USB3.0 AOC can meet 5Gbps data to transmit audio and video signals with high bandwidth. The transmission technology by optical fiber, and the optical fiber itself is not interfered by electromagnetic and radio frequency signals, so there will be no delays or stuck.
