5Gbps USB3.0 Active Optical Cable Hybrid Power Supply

Place of Origin China
Brand Name Hangalaxy
Certification CE, SGS, RoHs, UL
Model Number 5456
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7 Business Days
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability 5055PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Data Speed 5Gbps Connector A USB 3.0 Type A Plug TX
Connector B USB 3.0 Type A Socket RX Plug Type USB3.0
Power Consumption 940mW Cable Diameter 3.0mm
Bend Radius 20mm
High Light

Hybrid Power USB Active Optical Cable

,

USB3.0 Active Optical Cable

,

USB Active Optical Cable 5Gbps

Leave a Message
Product Description

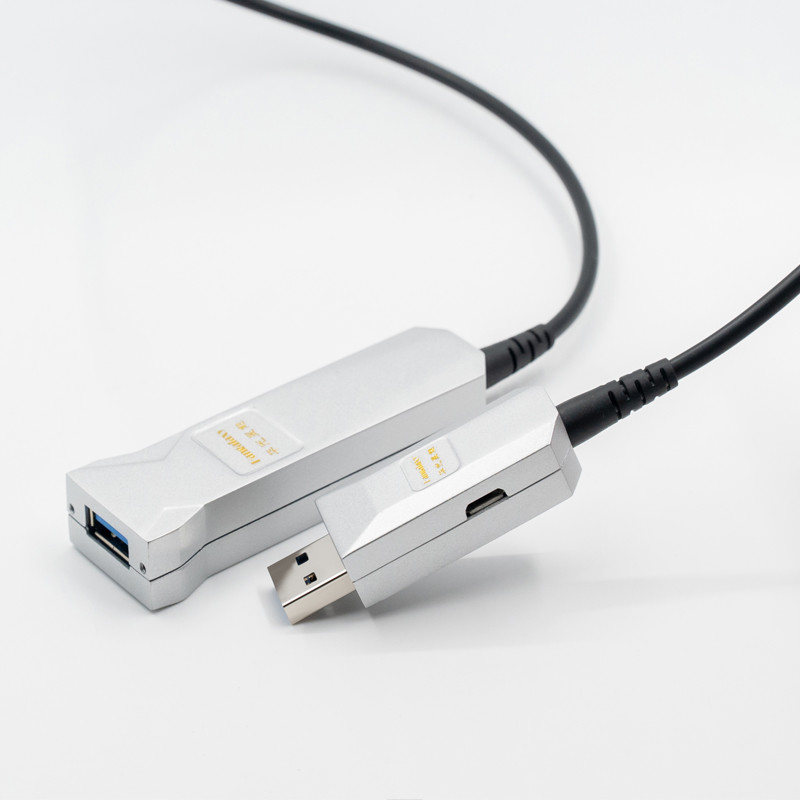

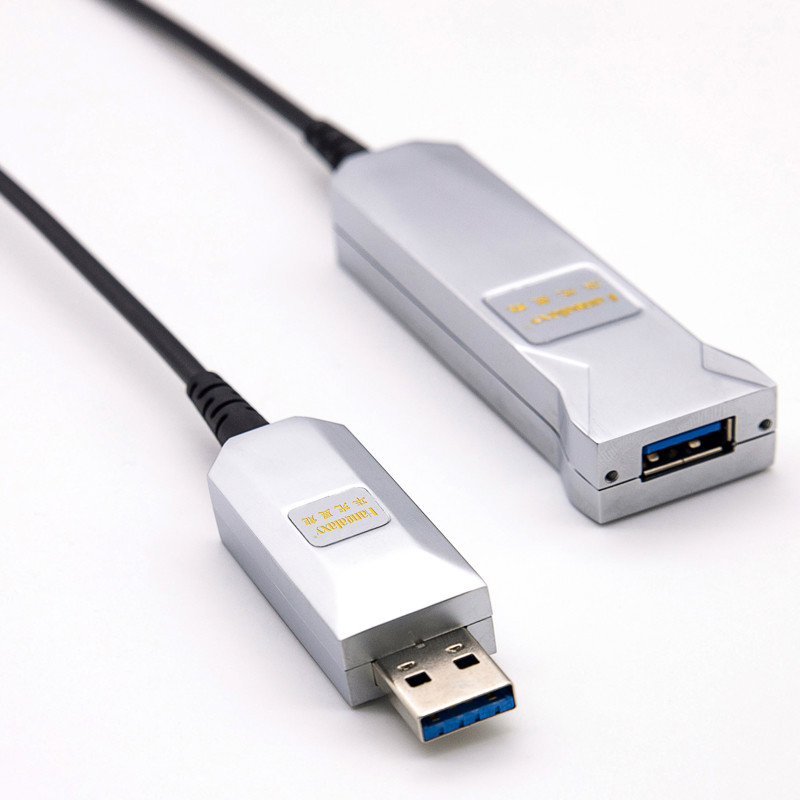

5Gbps USB3.0 Hybrid Power Supply Active Optical Cable



Revolutionary USB ACTIVE OPTICAL CABLE



This kind of USB3.0 Active Optical Cable from Hangalaxy is an optical hybrid cable that transfers high-resolution multimedia data with high speed up to 5 Gbps up to 50 meters. AOC is a cabling technology that accepts the same electrical inputs of connected devices as a traditional cable. These are converted into optical signals for the transfer via fibers. The cable provides excellent installation characteristics, it is very thin (3.0 mm), flexible, and durable.



5Gbps USB3.0 Active Optical Cable Hybrid Power Supply 0



Features & Benefits:



● Using active hybrid cable, integrated copper cable to supply power to the equipment. When the power supply of A type head is insufficient, the power supply capacity can be increased by micro USB B head;

● Plug and play without driver dependent, no eternal power needed, highly resistant with EMI and RFI;

● Backward compatible with USB2.0 / 1.1 device, greatly improve the bandwidth of USB2.0 devices.



Applications:



● The USB 3.0 Active Optical Cable is backward compatible, and is ideal for a wide variety of USB devices from printers, scanners, hard drives, and audio devices to touch screens, web cams, and game controllers.



5Gbps USB3.0 Active Optical Cable Hybrid Power Supply 1



Technical Parameter:



Data Speed 5Gbps
Connector A USB 3.0 Type A Plug TX
Connector B USB 3.0 Type A Socket RX
Plug Type USB3.0 host port standard type A male plug, USB3.0 devices port standard type A female socket (with locking screw hole)
Compatibility USB 3.0 / USB 2.0 / USB 1.1
Dimension of Plugs

Host Head: 44mm / 27mm / 13mm

Device Side: 82mm / 26mm / 14.5mm

Power Consumption 940mW
Cable Diameter 3.0mm
Bend Radius 20mm
Operating Temp. 0℃ ~ +55℃
Storage Temp. -20℃ ~ +80℃
Customized Length 10m/15m/35m/.....50m
Color Cable: Black Plugs: Silver



SOLUTION - USB AOC HU3H Series



5Gbps USB3.0 Active Optical Cable Hybrid Power Supply 2
