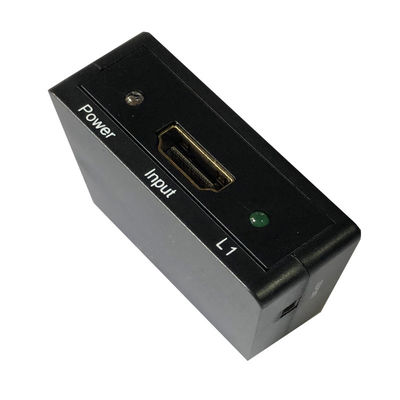

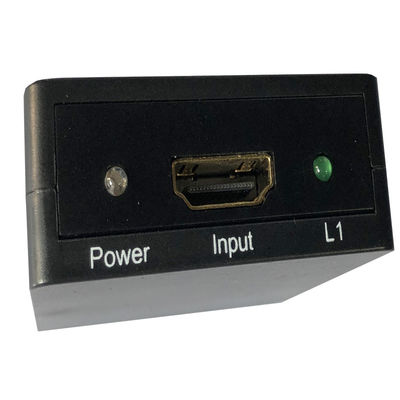

120Hz 48Gbs 4K 8K HDMI Splitter Extenders / Hdmi Audio Cord HDR 4 4 4 Lossless Amplifier

Place of Origin China
Brand Name Hangalaxy
Certification CE, UL, SGS, ROHS, ISO9001
Model Number HGYN-0878
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Interfaces 1 X HDMI Type A Female (Black) Impedance 100 Ώ
Max. Distance 1.8m / 4K@60Hz (4:4:4) Max. Data Rate 48Gpbs (6 Gbps Per Lane)
Max. Pixel Clock Ma600 MHz Power 1 X DC Jack
Housing Metal Weight 0.48 Kg ( 1.06 Lb )
High Light

hdmi audio cord

,

hdmi switch 4k 60hz

Leave a Message
Product Description

120Hz 48Gbs with Audio Video HDMI Cord HDR 4:4:4 Lossless Amplifier



This kind of True 8K HDMI Splitter from Hanglaxy Company is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs. The 8K HDMI Splitter is HDMI 2.1 compliant, 8K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.



Key Characteristic



1. Connects one HDMI source to four HDMI displays at the same time;
2. HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible;
3. Supports HDR10+;
4. Supports max resolutions of up to 7096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4);
5. Long distance transmission- up to 15 m(1920x1200) / 1.8m (True 4K)*;
6. Max pixel clock rate up to 600 MHz;
7. Max data rate up to 48 Gbps (6 Gbps per lane);
8. LED indication of power status and source devices;
9. EDID Expert™ – Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP;

10. Switch, allowing users to effortlessly switch among Port 1, Default, and Auto;
11. Plug-and-play – No software installation required.



Benefits



1. Dual power supply;
2. Up to 32 connection profiles;
3. Videowall and scaler function;
4. Install up to 4 in- and 4 output boards;
5. Connect up to 16 sources and 16 displays;
6. Mobile control via award-winning Web GUI;
7. Seamless Switch technology: < 0,1 seconds;
8. Compatible with various interfaces: HDMI, DVI-D, HDBaseT, VGA and SDI.



Technical Parameter



Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100Ώ
Max. Distance 1.8m / 4K@60Hz (4:4:4)
Video Output
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100Ώ
Max. Distance 1.8m / 4K@60Hz (4:4:4)
Video
Max. Data Rate 18Gpbs (6 Gbps Per Lane)
Max. Pixel Clock 600 MHz
Compliance HDMI (3D, Deep Color, 4K); HDCP Compatible
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)



Audio
Input 1 x HDMI Type A Female (Black)
Output 4 x HDMI Type A Female (Black)
Connectors
Power 1 x DC Jack
Power Consumption DC5V:4.84W:23BTU
Physical Properties
Housing Metal
Weight 0.48 kg ( 1.06 lb )
Dimensions (L x W x H) 20.00 x 8.00 x 2.50cm (7.87 x 3.15 x 0.98 in.)



120Hz 48Gbs 4K 8K HDMI Splitter Extenders / Hdmi Audio Cord HDR 4 4 4 Lossless Amplifier 0



Ideal Application



120Hz 48Gbs 4K 8K HDMI Splitter Extenders / Hdmi Audio Cord HDR 4 4 4 Lossless Amplifier 1



Hangalaxy Exhibition Activities



120Hz 48Gbs 4K 8K HDMI Splitter Extenders / Hdmi Audio Cord HDR 4 4 4 Lossless Amplifier 2



Package Contents


1 x VS184B 4-Port True 4K HDMI Splitter
1 x Power adapter
1 x HDMI cable
1 x User Instructions



Note



For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
