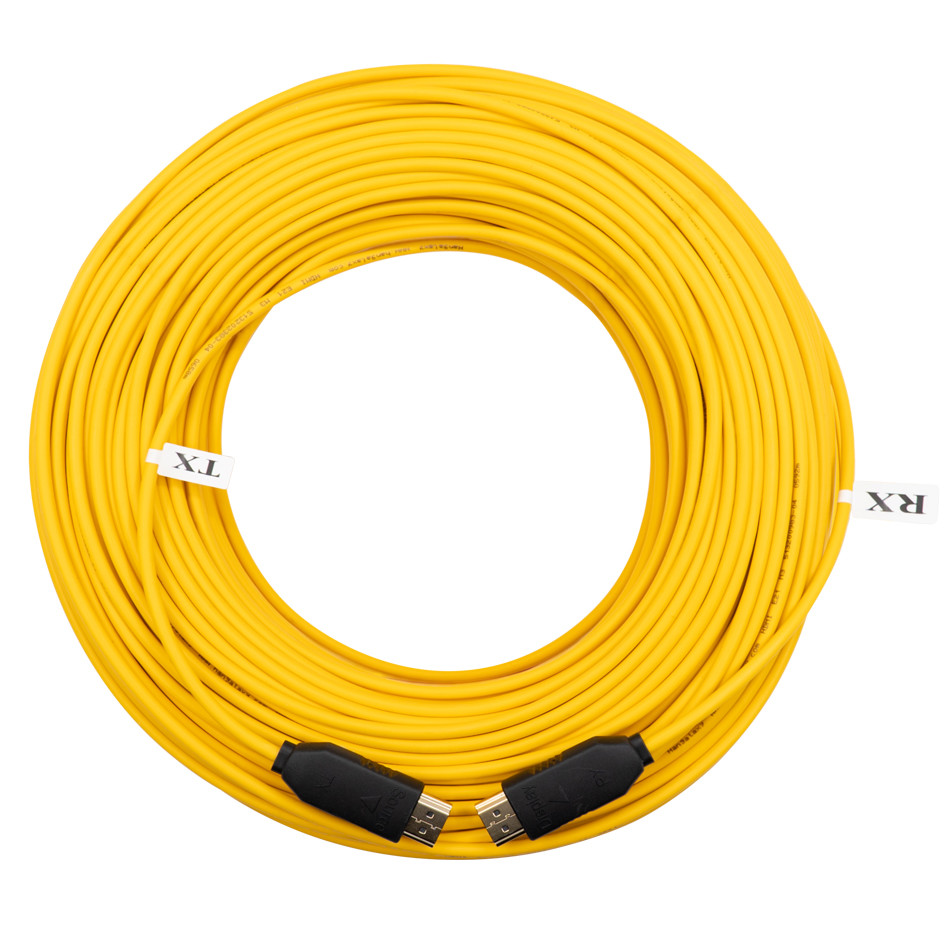

18Gbps Active Optical Cable Pure Fiber 300m HDMI 2.0 Multimode OM3

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: CE, SGS, RoHs, UL
Model Number: HGYN-0259
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5055PCS Monthly
Cable OD: 3.0mm Cable Material: TPU
Cable Color: Yellow Connector: HDMI
Data Rate: 18Gbps Length: 300m
Version: 2.0 Fiber Mode: Multimode, OM3
High Light:

18Gbps Active Optical Cable

,

Multimode OM3 Active Optical Cable

,

300m Active Hdmi Cable

18Gbps Long Reach HDMI 2.0 Active Optical Cable Pure Fiber 300m Cable



In the current audio and video market, for signal transmission over a longer distance of more than 15 meters, the following two methods are usually used in industry engineering projects:

1. Network extender solution: One receive and one send network extender + network cable;
2. Digital Optical Transceiver Solution: One receive one light terminal + optical fiber. Although these two transmission methods have solved the problem of long-distance signal transmission to a certain extent, new problems have emerged: compressed bandwidth and signal delay caused by insufficient bandwidth; the link requires external power, and there are many connected devices, many interfaces, As a result, the stability of the signal transmission link is poor, the signal is easily get jammed, and it is not easy to be well protected; many new problems cannot be properly resolved.



HDMI is a digital video / audio interface that can simultaneously transmit audio and video signals, and supports data transmission from 5Gbps to 48Gbps. In the 4K era, copper HDMI can stable transmit 18 meters.

Nowadays the latest marketing of HDMI copper cable transmission as follows:
HDMI1.4: Bandwidth of 10.2Gpbs, stable transmission 18m;
HDMI2.0: Bandwidth of 18Gpbs, stable transmission of 9m;
HDMI2.1: Bandwidth of 48Gpbs, stable transmission of 1.5m.



Technical Parameter



Cable Length Max 300 meters
Connector Type HDMI Standard Type A (Male) - HDMI Standard Type A (Male); USD dual Male
Connector Dimension L5.07cm x W1.9cm x Thickness 9.1mm
Data Speed 32Gbps HDMI 2.0, support 4096@2160@60HZ, Ultra HD image transmission, 12-bit color

Power Supply

External power supply is required. A 25cm USB interface cable is provided at each end of the Display / Source. The external power supply jack is used for backup power supply at the Source end, and a 5V power supply interface must be inserted at the Display end.
Power Consumption ≦750mW



Products Model and Spec



Product Name Model AOC Length

Hangalaxy HDMI AOC Transmission System

(2.0 32Gbps F Series)

HD/2.0-15F 15mtrs
HD/2.0-20F 20mtrs
HD/2.0-25F 25mtrs
HD/2.0-30F 30mtrs
HD/2.0-35F 35mtrs
HD/2.0-40F 40mtrs
HD/2.0-45F 45mtrs
HD/2.0-50F 50mtrs
HD/2.0-60F 60mtrs
HD/2.0-70F 70mtrs
HD/2.0-80F 80mtrs
HD/2.0-90F 90mtrs
HD/2.0-100F 100mtrs
HD/2.0-110F 110mtrs
HD/2.0-120F 120mtrs
HD/2.0-130F 130mtrs
HD/2.0-250F 250mtrs
HD/2.0-300F 300mtrs



18Gbps Active Optical Cable Pure Fiber 300m HDMI 2.0 Multimode OM3 0



Our Workshop



18Gbps Active Optical Cable Pure Fiber 300m HDMI 2.0 Multimode OM3 1



Hangalaxy 2019 ISE Exhibition



18Gbps Active Optical Cable Pure Fiber 300m HDMI 2.0 Multimode OM3 2



Shipment by DHL, UPS, FedEx, TNT



This item does not ship to China. Please check other sellers who may ship internationally. Due to increased demand, we temporarily have reduced product selection available for delivery to your region. We are working to improve selection availability as soon as possible.
