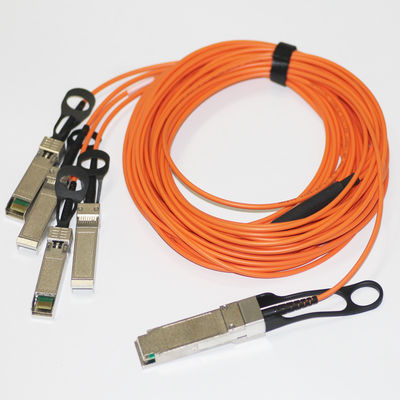

MMF Active Optical Fan Out Cable 40G QSFP+ To 4 SFP+ AOC OM2 OD 3.0mm

  • MMF Active Optical Fan Out Cable 40G QSFP+ To 4 SFP+ AOC OM2 OD 3.0mm
  • MMF Active Optical Fan Out Cable 40G QSFP+ To 4 SFP+ AOC OM2 OD 3.0mm
  • MMF Active Optical Fan Out Cable 40G QSFP+ To 4 SFP+ AOC OM2 OD 3.0mm
  • MMF Active Optical Fan Out Cable 40G QSFP+ To 4 SFP+ AOC OM2 OD 3.0mm
Place of Origin China
Brand Name Hangalaxy
Certification ROHS, UL, SGS, CE
Model Number HGYN-003
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Pieces Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Data Transmitted 40G Cable OD 3.0mm
Cable Color Orange Connector Type QSFP
Cable Material PVC Length 10m
Fiber Mode Multimode, OM2 Applications 40GBase-AOC
High Light

40g breakout cable

,

fan out cable
Leave a Message
Product Description

40G QSFP+ to 4 SFP+ AOC Splitter Cable OM2 MMF Active Optical Fan-Out Cable



Data centers often use several different types of high-speed interconnects matching each interconnect type to specific requirements. DACs (Direct Attach Copper) is the lowest cost, but after about 3-7 meters the attenuation of the signal is significant and it becomes unrecognizable. AOCs (Active Optical Cable) are used from 3 meters to about 30 meters. It is not practical to install AOCs that are longer than 30 meters. This Active Optical Cable is specifically programmed to be fully compatibility and seamlessly connect Extreme devices to Extreme devices with a wavelength of 850nm. Our extensive quality control measures begin with physically inspecting each module, verification of hardware type, wavelength, transmit power, receive power, and full optical monitoring functionality (if applicable). We are an Chinese owned and operated company. Our products are used by corporates, medium and small business including leading ISPs, Telco’s, Universities, Data Centres and Government Departments.



Applications



● 25GBASE-SR Ethernet;

● InfiniBand QDR, SDR, DDR;

● Servers, switches, storage and host card adapters.



Keyed Characteristics



● Hot-pluggable SFP28 form factor;
● Supports 25Gbps data rate;
● Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF;
● 850nm VCSEL laser and PIN photo-detector;
● Holder with guiding (air-/water-cooled);
● Internal CDR on both Transmitter and Receiver channel;
● Single 3.3V power supply;
● Power dissipation < 1W;
● Digital diagnostics functions are available via the I2C interface;
● RoHS-6 compliant;
● Commercial case temperature range: 0°C to 70°C.



Absolute Maximum Ratings



Parameter Symbol Min Max Unit
Storage Temperature TST -20 85 ℃
Relative Humidity RH 0 85 ％
Case Operating Temperature TOPC 0 70 ℃
Supply Voltage VCC -0.3 3.6 V



Recommended Operating Conditions



Parameter Symbol Min Typical Max Unit
Operating Case temperature TA 0   +70 ℃
Supply Voltage VCC 3.13 3.3 3.47 V
Supply current Icc     300 mA
Channel Data Rate Dr - 25.78125   Gbps



Transmitter



Parameter Symbol Min Typical Max Unit
Input differential impedance Zin 90 100 110 Ω
Differential Data Input Swing Vin PP 300   1100 mV
Transmit Enable Voltage VEN     0.8 V
Transmit Disable Voltage VD 2.0     V
Average launch power PAVG -7.5 -1 +2.5 dBm
Extinction Ratio ER 2.0     dB
Centre Wavelength λc 840 850 860 nm



MMF Active Optical Fan Out Cable 40G QSFP+ To 4 SFP+ AOC OM2 OD 3.0mm 0



Ordering information



PN Cable Imformation
NOT850M28GA#xxx

OM3 MMF without UL Certification(xxx≤70 meter)

OM4 MMF without UL Certification(70＜xxx≤100meter)
NOT850M28GAU#xxx

OM3 MMF with UL Certification(xxx≤70 meter)

OM4 MMF with UL Certification(70＜xxx≤100meter)
xxx :001~100,1~100 Length in meters;
Further details are available from any tri-light sales representative



CWDM/DWDM Module Workshop



MMF Active Optical Fan Out Cable 40G QSFP+ To 4 SFP+ AOC OM2 OD 3.0mm 1



Hangalaxy Exhibition



MMF Active Optical Fan Out Cable 40G QSFP+ To 4 SFP+ AOC OM2 OD 3.0mm 2



The rate of Hangalaxy 40G AOC cable is quite stable on our Cisco Nexus 9000 series equipment with no compatibility issue. Very pleased with my first order for nice products' performance. Regarding to my next project, will order FS products again.



Dispatch



All orders received before 4pm Monday to Friday will ship the same day. We will endeavour to ship any orders received after this deadline, however please call if you require confirmation.
