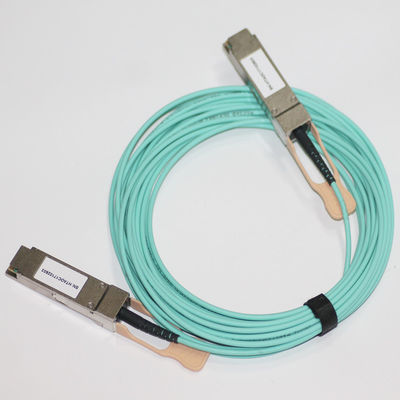

850nm 10 Meter QSFP+ Active Optical Cable Assembly Compatible 40GBASE AOC

  • 850nm 10 Meter QSFP+ Active Optical Cable Assembly Compatible 40GBASE AOC
  • 850nm 10 Meter QSFP+ Active Optical Cable Assembly Compatible 40GBASE AOC
  • 850nm 10 Meter QSFP+ Active Optical Cable Assembly Compatible 40GBASE AOC
  • 850nm 10 Meter QSFP+ Active Optical Cable Assembly Compatible 40GBASE AOC
Place of Origin China
Brand Name Hangalaxy
Certification ROHS, UL, SGS, CE
Model Number HGYN-0982
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7 Business Days
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 25055PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cable OD 3.0mm Fiber Mode Multimode, OM3
Cable Material OFNP Connector QSFP+
Length 10m Data Rate 40G
Cable Type QSFP AOC Cable Applications 40GBase-AOC
High Light

40g aoc cable

,

40g breakout cable
Leave a Message
Product Description

Compatible 40GBASE-AOC QSFP+ Active Optical Cable Assembly 850nm 10 meter



Hangalaxy QSFP+ to 4x SFP+ breakout Active Optical Cable offers IT professionals a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers. For typical applications, users can install this splitter Active Optical cable between an available QSFP+ port on their 40Gbps rated switch and feed up to four upstream 10GbE SFP+ enabled switches. Each QSFP+-SFP+ splitter Active Optical cable features a single QSFP+ connector (SFF-8436) rated for 40Gbps onone end and (4) SFP+ connectors (SFF-8431), each rated for 10-Gb/s.



Features



1. Electrical interface compliant to QSFP+ connector (SFF-8436) and SFP+ connectors (SFF-8431);

2. Hot Pluggable;
3. 850nm VCSEL transmitter, PIN photo-detector receiver;
4. Up to 100m on OM3 MMF;
5. Operating case temperature: 0to 70°C;
6. All-metal housing for superior EMI performance;
7. RoHS compliant (lead free).



Applications



1. 40 Gigabit Ethernet;
2. Fibre Channel Applications;
3. InfiniBand QDR, SDR, DDR;
4. High-performance computing clusters;
5. Servers, switches, storage and host card adapters.



Technical Parameter



Parameter Symbol Min Max Unit
Storage Temperature TST -20 85 ℃
Relative Humidity RH 0 85 ％
Case Operating Temperature TOPC 0 70 ℃
Supply Voltage VCC -0.3 3.6 V



Recommended Operating Conditions



Parameter Symbol Min Typical Max Unit
Operating Case temperature TA 0   +70 ℃
Supply Voltage VCC 3.13 3.3 3.47 V
Supply current Icc     300 mA
Channel Data Rate Dr - 25.78125   Gbps



Transmitter



Parameter Symbol Min Typical Max Unit
Input differential impedance Zin 90 100 110 Ω
Differential Data Input Swing Vin PP 300   1100 mV
Transmit Enable Voltage VEN     0.8 V
Transmit Disable Voltage VD 2.0     V
Average launch power PAVG -7.5 -1 +2.5 dBm
Extinction Ratio ER 2.0     dB
Centre Wavelength λc 840 850 860 nm



850nm 10 Meter QSFP+ Active Optical Cable Assembly Compatible 40GBASE AOC 0



CWDM/DWDM Module Workshop



850nm 10 Meter QSFP+ Active Optical Cable Assembly Compatible 40GBASE AOC 1



Hangalaxy ISE Exhibition



850nm 10 Meter QSFP+ Active Optical Cable Assembly Compatible 40GBASE AOC 2



Quality Guarantee



Hangalaxy has this QSFP+ to 4 x SFP+ AOC Cable, 1 Meter - AOC-QSFP-4SFP-1M in stock and ready to ship. This cable is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.
