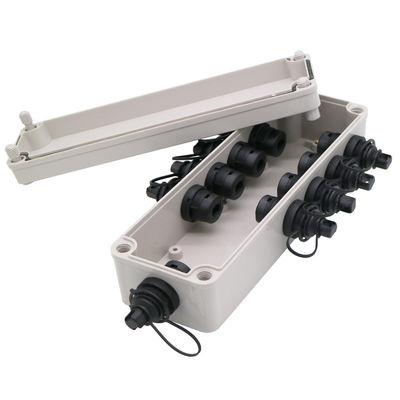

SC APC Loaded Fiber Optic Termination Box / Otb Optical Termination Box

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: ROHS, UL, SGS, CE
Model Number: HGYN-087741
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25055PCS Monthly
Material: ABS Protection Grade: IP67
Color: White Connector: SC APC
Dimension: 250* 80*70mm Weight: 0.52KG
Insulation Resistance: 2*104MΩ Dielectric Strengt: 15KV
High Light:

fiber optic distribution box


outdoor fiber termination box

SC APC Loaded Outdoor Waterproof Pre-terminated Fiber Optic Termination ABS Box


Hangalaxy ODVA BBU RRU Patch Cable is for CPRI application, that widely used in 3G, 4G and WIMAX base station, Long term Evolution(LTE), and Remote Radio Units to the FTTA connectivities. The boxes can be supplied fully loaded with all common adaptors including ST, SMA, SC, FC, SC Duplex, FDDI and ESCON types. They are supplied in a number of popular formats including 1in/1out, 1in/2out and 2in/2out. We provide a custom machining service enabling us to supply any other splice box configuration or hybrid enclosures on very short lead times.



1. FTTA,FTTH Application;
2. 3G,4G Base Station;
3. Horizontal and Vertical Cabling;



Termination Box Specifications


Dimensions (W*H*D) 250* 80*70mm
Adapter Capacity 12 x SC/FC simplex adapters or LC duplex adapters
Number of Cable Entrance/Exit 12 simplex drop cables (Pre-connectorized cables supported)
Optional Accessories Adapters, Pigtails, Heat Shrink Tubes
Weight 0.85 KG


Operation Conditions


Temperature -10℃to 50℃ (Other materials available upon request for extreme weather conditions)
Protection Grade IP67
Air Pressure 70kPa – 106kPa


Shipping Information


Package Contents Distribution box: 1 unit; Wall mount installation accessories: 1 set
Package Dimensions(W*H*D) 265mm*225mm*100mm
Material Carton box
Weight 1.5 KG
Lead Time 10-15 working days normally



● Reasonable design, aluminum box, light weight;
● Electrostatic powder painting, grey or black color;
● ABS plastic blue splice tray, rotatable design, compact structure;
● Max. 12 fibers capacity;
● FC, ST, LC, SC ... different adapter port available;
● DIN rail mounted application.


Hangalaxy’s distribution box terminates outside optical cables with up to 12 fibers; it allocates 12 adapters for connecting with max 12 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.


Competitive Advantage


Hangalaxy strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.


SC APC Loaded Fiber Optic Termination Box / Otb Optical Termination Box 0


Hangalaxy Fiber Optic Termination Box Assembly Factory


SC APC Loaded Fiber Optic Termination Box / Otb Optical Termination Box 1


SC APC Loaded Fiber Optic Termination Box / Otb Optical Termination Box 2


Quality Guarantee


Hangalaxy has this fiber optical termination box in stock and ready to ship. This ABS box for FTTH network is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.
