FTTH Metal 8 Ports Outdoor Fiber Termination Box IP65 SC LC FC ST Black

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: ROHS, UL, SGS, CE
Model Number: HGYN-08754
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25055PCS Monthly
Material: Metal Protection Grade: IP65
Color: Black Connector: SC APC
Dimension: 250* 80*70mm Weight: 0.52KG
Insulation Resistance: 2*104MΩ Dielectric Strengt: 15KV
High Light:

fiber optic distribution box


ftth termination box

IP65 8 Ports SC LC FC ST Fiber Optic Termination FTTH Box Metal Black


Hangalaxy ODVA BBU RRU Patch Cable is for CPRI application, that widely used in 3G, 4G and WIMAX base station, Long term Evolution(LTE), and Remote Radio Units to the FTTA connectivities. The boxes can be supplied fully loaded with all common adaptors including ST, SMA, SC, FC, SC Duplex, FDDI and ESCON types. They are supplied in a number of popular formats including 1in/1out, 1in/2out and 2in/2out. We provide a custom machining service enabling us to supply any other splice box configuration or hybrid enclosures on very short lead times.



1. Telecommunications;
2. Local Area Networks;
3. FTTH deployment;
4. CATV.



Termination Box Specifications


Dimensions (W*H*D) 250* 135*70mm
Adapter Capacity 8 x SC/FC simplex adapters or LC duplex adapters
Number of Cable Entrance/Exit 8 simplex drop cables (Pre-connectorized cables supported)
Optional Accessories Adapters, Pigtails, Heat Shrink Tubes
Weight 0.34 KG


Operation Conditions


Environment Temperature

Relative Humidity ≤85%( 30°C)
Air Pressure 70kPa – 106kPa


Shipping Information

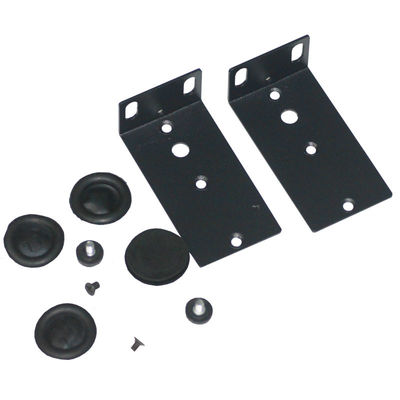

Package Contents Distribution box: 1 unit; Wall mount installation accessories: 1 set
Package Dimensions(W*H*D) 265mm*225mm*100mm
Material Carton box
Weight 1.5 KG
Lead Time 10-15 working days normally



● Electrostatic spraying, beautiful appearance, easy to operate;
● Equip with cable fixed device, splice tray, thread ring;
● Splice tray use superposition structure,max capacity 96core,ribbon fiber up to144cores;
● It can insulate the cable metal parts and the terminal box shell and with grounding device;
● Have enough space for terminal placement and remaining fiber storage;
● Size is customize.


Hangalaxy’s distribution box terminates outside optical cables with up to 12 fibers; it allocates 12 adapters for connecting with max 12 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.


Competitive Advantage


Hangalaxy strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.


FTTH Metal 8 Ports Outdoor Fiber Termination Box IP65 SC LC FC ST Black 0


Hangalaxy Fiber Optic Termination Box Assembly Factory


FTTH Metal 8 Ports Outdoor Fiber Termination Box IP65 SC LC FC ST Black 1


FTTH Metal 8 Ports Outdoor Fiber Termination Box IP65 SC LC FC ST Black 2


Quality Guarantee


Hangalaxy has this fiber optical termination box in stock and ready to ship. This ABS box for FTTH network is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.
