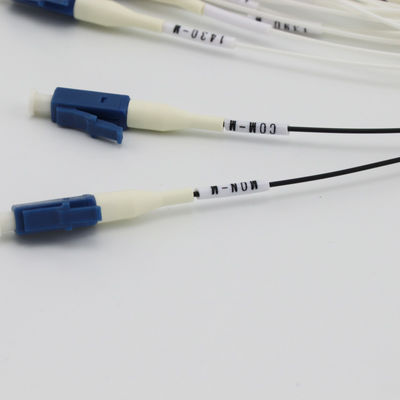

18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength

  • 18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength
  • 18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength
  • 18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength
  • 18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength
Place of Origin China
Brand Name Hangalaxy
Certification CE, FCC, RoHs, SGS, ISO9001
Model Number HGYN-115
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5055PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Wavelength 1270 ~ 1611nm Channel Spacing 20nm
Channel Passband CWL±6.5nm Adjacent Channel Isolation 30dB
Directivity 55dB PDL 0.2dB
High Light

fiber optic plc splitter

,

fiber optic dwdm
Leave a Message
Product Description

18CH LC UPC CWDM Demux Mux Optical Mudule



DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux)modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Fixed Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.



Keyed Characteristics


● Telcordia GR-1221 compliance;
● High temperature stability;
● Low insertion loss;
● Epoxy-free optical path;
● Compact size.



Application


● Metro/Access communication networks;
● Fiber optic instruments;
● Mobile optical networks.



Technical Parameter



Parameter Unit 16CH 18CH
Operating Wavelength nm 1270 ~ 1611
Channel Spacing nm 20
Channel Passband nm CWL±6.5
Insertion Loss (Without Connectors) Max. dB 1.6 1.8
Adjacent Channel Isolation Min. dB 30
Non-Adjacent Channel Isolation Min. dB 45
Directivity Min. dB 55
Return Loss Min. dB 45
Polarization Dependent Loss Max. dB 0.2
Polarization Mode Dispersion Max. dB 0.3
Passband Ripple Max. ps 0.5
Tensile Load Min. N 5
Power Handing Min. mW 300
Operating/Storage Temperature ℃ -40 ~ +80
Package Dimension (L x W x H) mm 50*50*6.6



18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength 0



18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength 1



18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength 2



Hangalaxy Factory



18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength 3
