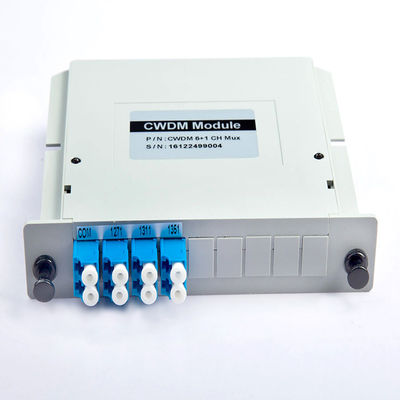

Compact 4CH Fiber Optic CWDM DWDM AAWG Module LC Connector Type UPC Polish

Place of Origin China
Brand Name Hangalaxy
Certification CE, FCC, RoHs, SGS, ISO9001
Model Number HGYN-198
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5055PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Wavelength 1270 ~ 1611nm Channel Spacing 20nm
Channel Passband CWL±6.5nm Adjacent Channel Isolation 30dB
Directivity 55dB PDL 0.2dB
Connector Type LC Polish Type UPC
High Light

fiber optic plc splitter

,

fiber optic dwdm

Leave a Message
Product Description

Compact 4CH Fiber Optic CWDM MUX DEMUX Module



Compact Coarse Wavelength Division Multiplexer (CCWDM MUX DEMUX) can solve the shortage of fiber resources and transparent transmission of business, and reduce the cost of network Construction. With low-cost and compact dimension, it is mainly used in metropolitan area network and access layer, also be used to build networks.



Keyed Characteristics


(1) Compact size;
(2) Low insertion loss;
(3) Low PDL;
(4) High channel isolation;
(5) Excellent environmental reliability;
(6) Epoxy-Free Optical Path.



Application


● Metro/Access communication networks;
● Fiber optic instruments;
● Mobile optical networks.



Technical Parameter



Parameter Unit Value
Pass Band Type - Flat-top Gaussian
Channel Spacing GHz 150
Channel Number CH 17
Wavelength Accuracy nm ±0.05
1dB Pass Band nm ≥0.38 ≥0.2
3dB Pass Band nm ≥0.58 ≥0.4
Insertion Loss1 dB ≤6.0 Typ.4.5 ≤3.5 Typ.2.8
Ripple dB ≤0.5 ≤1.5
Uniformity dB ≤1.5 ≤1.5
Adjacent Crosstalk dB ≥23 ≥26
Non-adjacent Crosstalk dB ≥29 ≥35
Total Crosstalk dB ≥21
Polarization Dependent Loss(PDL) dB ≤0.5 Typ.0.25 ≤0.7 Typ.0.35
PMD2 ps ≤0.5
Chromatic Dispersion2 ps/nm ±20
Return Loss dB ≥40



Fiber

Input Port mm Φ0.9
Output Ribbon - -
Fan Out mm Φ0.9
Operation Temperature -40~+85
Storage Temperature -40~+85
Package mm 80×40×9.6



Parameter Unit 16CH 18CH
Operating Wavelength nm 1270 ~ 1611
Channel Spacing nm 20
Channel Passband nm CWL±6.5
Insertion Loss (Without Connectors) Max. dB 1.6 1.8
Adjacent Channel Isolation Min. dB 30
Non-Adjacent Channel Isolation Min. dB 45
Directivity Min. dB 55
Return Loss Min. dB 45
Polarization Dependent Loss Max. dB 0.2
Polarization Mode Dispersion Max. dB 0.3
Passband Ripple Max. ps 0.5
Tensile Load Min. N 5
Power Handing Min. mW 300
Operating/Storage Temperature -40 ~ +80
Package Dimension (L x W x H) mm 50*50*6.6





Compact 4CH Fiber Optic CWDM DWDM AAWG Module LC Connector Type UPC Polish 0



Workshop



Compact 4CH Fiber Optic CWDM DWDM AAWG Module LC Connector Type UPC Polish 1



The Hangalaxy Athermal AWG (Arrayed Waveguide Grating) is a high performance DWDM mux/demux device operating on 150GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths. Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics. These AWGs offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. Hangalaxy’s athermalization technology simplifies deployment of AWG multiplexers/demultiplexers by DWDM network providers.
