Pre Terminated Outdoor Fiber LC UPC Multimode OM3 OFNP 24 Cores
| Place of Origin | China |
|---|---|
| Brand Name | Hangalaxy |
| Certification | CE, ROHS, UL, SGS |
| Model Number | HGYN-087 |
| Minimum Order Quantity | MOQ Saying is 10pcs |
| Price | Negotiation By email or Phone Call |
| Packaging Details | 1PCS Each Individual Quality PE Bag |
| Delivery Time | 7 Business Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 25055PCS Monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Count | 24 | Jacket Color | Aqua |
|---|---|---|---|
| Cable OD | 10.5mm | Cable Material | LSZH |
| Connector Type | LC UPC | Polishing | UPC |
| Wavelength | 850/1300nm | Insertion Loss | 0.35dB |
| High Light | pre terminated outdoor fiber,lszh patch cord |
||
Product Description

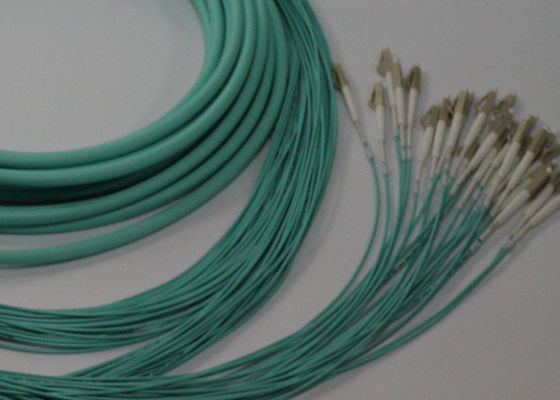

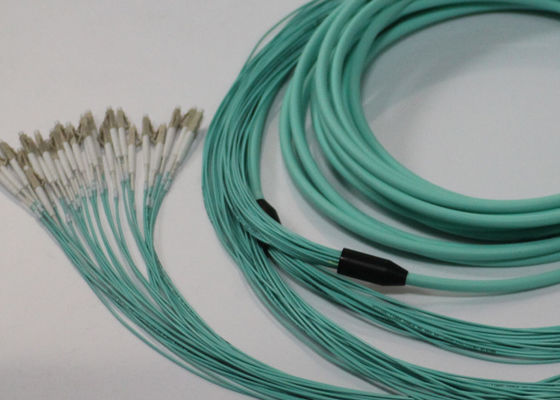

24 Cores LC UPC Fiber Optic Multimode OM3 OFNP Plenum Patch Cable Aqua Fanout Jacket
● Feature
√ Available in OM1, OM2, OM3, OM4 (ISO/IEC) and G.652D(OS1/OS2), G657A1 fibre types;
√ Available with SC, LC, FC, ST, and E2000 connector types;
√ 2 - 24 core tight buffer cable with standard connectivity;
√ Fast installation plug and play system;
√ No splicing or connector termination required.
● Benefits
√ Robust crush resistant protection tube;
√ High tensile strength pulling element;
√ Economical, light and compact assembly;
√ Low waste packaging;
√ User friendly link loss test certificate;
√ Installation guide supplied.
Cable Performance
| FibreType (ISO/IEC 11801) | OS1/OS2 | OM1 | OM2 | OM3 | OM4 |
|
Attenuation Coefficient [dB/km] |
≤ 0.38 Max (1310nm) ≤ 0.25 Max (1550nm) ≤ 0.34 Typ (1310nm) ≤ 0.19 typ (1550nm) |
≤ 3.5 Max (850nm) ≤ 1.5 Max (1300nm) ≤ 2.9 Typ (850nm) ≤ 1.2 typ (1300nm) |
≤ 3.5 Max (850nm) ≤ 1.5 Max (1300nm) ≤ 2.7 Typ (850nm) ≤ 0.9 typ (1300nm) |
||
|
Minimum Bandwidth: Overfilled Launch [Mhz-km] |
NA |
≥ 200 (850nm) ≥ 500 (1300nm |
≥ 500 (850nm) ≥ 500 (1300nm) |
≥ 1500 (850nm) ≥ 500 (1300nm) |
≥ 3500 (850nm) ≥ 500 (1300nm |
|
Minimum Bandwidth: Laser Effective Modal Bandwidth [Mhz-km] |
NA |
NA |
NA |
≥ 2000 (850nm |
≥ 4700 (850nm) |
Connector Performance
| CONNECTOR MATING | IL Average Standard | IL MAX Standard | IL Average Premium | IL MAX Premium | RETURN LOSS |
| Multimode | 0.15 dB | 0.30 dB | 0.08 dB | 0.15dB | NA |
| Singlemode | 0.18dB | 0.30dB | 0.12dB | 0.15dB | >55/65dB |
Hangalaxy PLC Splitter Workshop
Hangalaxy Exhibition Activities Show
Pulling Eye Recommendations
Optional pulling eyes are highly recommended. The pulling eye pulling eye (and associated cable netting) will protect the pre-terminated ends during the pull. In many cases, pulling is not done from point to point, but rather from an intermediate point pulling back in each direction to each termination location. In that scenario, you will need to order the cable with two pulling eyes. In many cases, a cable run is planned to pull direct from point to point. When the installation begins, occasionally, the decision is made to pull from an intermediate point rather than from point to point (in which case you'll be glad that you ordered the extra pulling eye).
