LC Duplex MM OM3 50um 2F Zipcord Riser Pre Terminated Cable

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: CE, FDA, SGS, RoHs, ISO9001:2008
Model Number: 003
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7-10 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25000PCS Monthly
Connector 1: LC UPC Connector 2: SC APC
Fiber Mode: SM G.652D Fiber Count: 12
Polish Type: APC, UPC Cable OD: 3.0mm
Cable Color: Yellow Cable Length: 10m
High Light:

Zipcord Riser Pre Terminated Cable


50um Pre Terminated Cable


OM3 LC Duplex Optic Cable

Fiber Optic Cable LC Duplex MM, OM3 50um, 2F, Zipcord Riser Pre Terminated LSZH Cable


This cable is factory made, quality controlled fibre optic assembly is specified for short internal optical links. The 900μm tight buffer presentation lends itself to installation within a patch panel, wall box or Optical Distribution Frame (ODF). Crush resistant protective tubing assures secure transportation and installation. The high strength pulling element allows fast, safe and effective pulling. The overall assembly and packing are light and compact, reducing transport cost and storage space. Installation waste is also reduced. A unique link loss certificate accompanies all multifiber assemblies.

Feature & Keyed Characteristic

● Strong, flexible and easy to install;
● Ideal for indoor applications, thanks to the LSZH sheath;
● Great mechanic resistance;
● Totally dielectric.


● Application

√ Data centers.
√ Structured cabling systems.
√ LAN interbuilding installations (Campus) 1, 10, 40 and 100 Gbps applications.
√ Security and transport systems.
√ Community access television (CATV) & multi-system operator (MSO).
√ Central office and local loop.


Item Description

The Hangalaxy Multifiber cable made by 900μm diameter optical patch cords helically wrapped on a central element. It is possible to order the cable with all available connectors.


Technical Parameter


Specification Value
Fibre Grade OS1/OS2, G.657A1, OM1, OM2, OM3, OM4 (ISO/IEC)
Cable Specification

Tight buffer 4, 8, 12 and 24 cores (ISO/IEC 60794)

Max OD 24 cores 6.5 ± 0.2

Connectors IEC 61753, IEC 61754, IEC 61755
Pulling Element

a) No pulling element: length < 20mtr

b) A side pulling element: length ≥ 20mtr


Length ≤ 100 Coil in heavy duty polymer bag

Length > 100 Drum

Operating Temperature -20 ~ +60°C
Storage Temperature -40 ~ +70°C
Cable Color Yellow, Black, Aqua or customized
Application Indoor / Outdoor

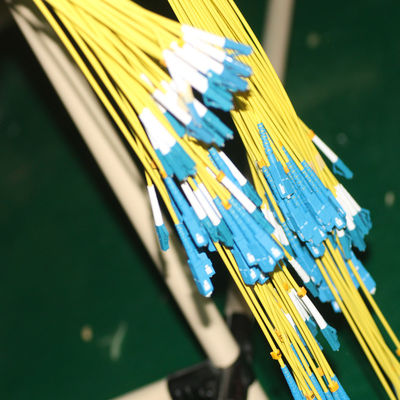

LC Duplex MM OM3 50um 2F Zipcord Riser Pre Terminated Cable 0


Application in the field

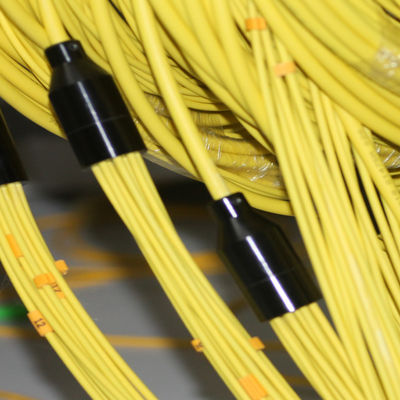

LC Duplex MM OM3 50um 2F Zipcord Riser Pre Terminated Cable 1


Fiber Optic Patch Cord, Multi-fiber, Singlemode, 4 fibers, SC/UPC to SC/UPC, yellow, 16 m
