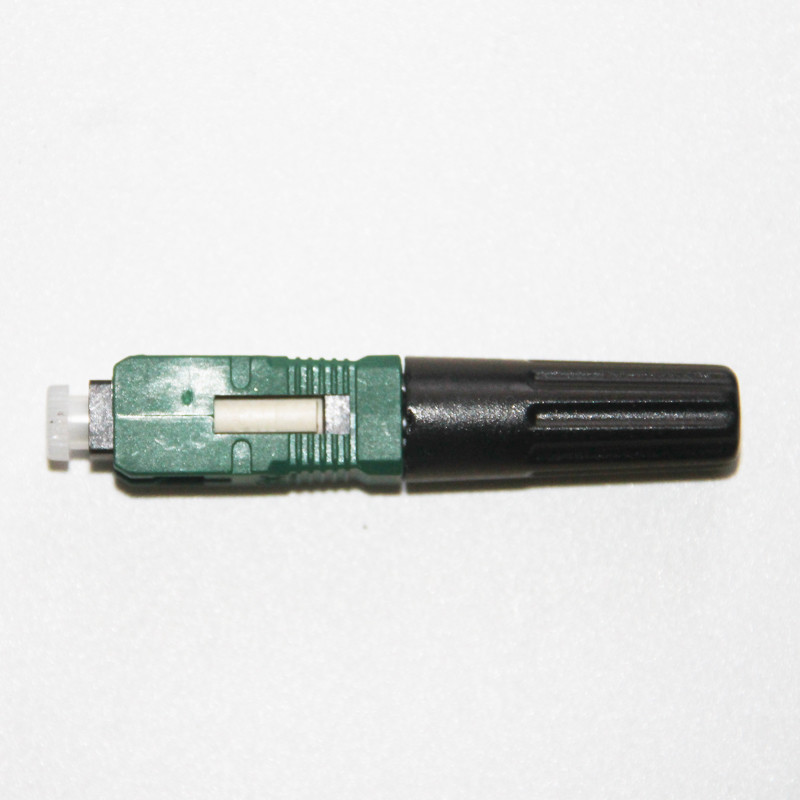

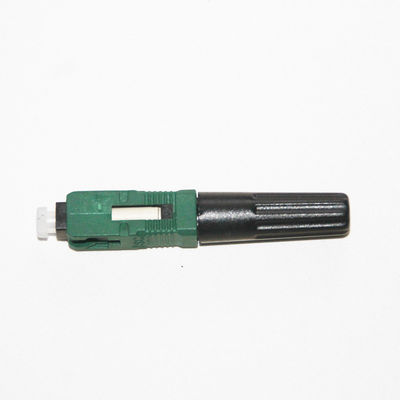

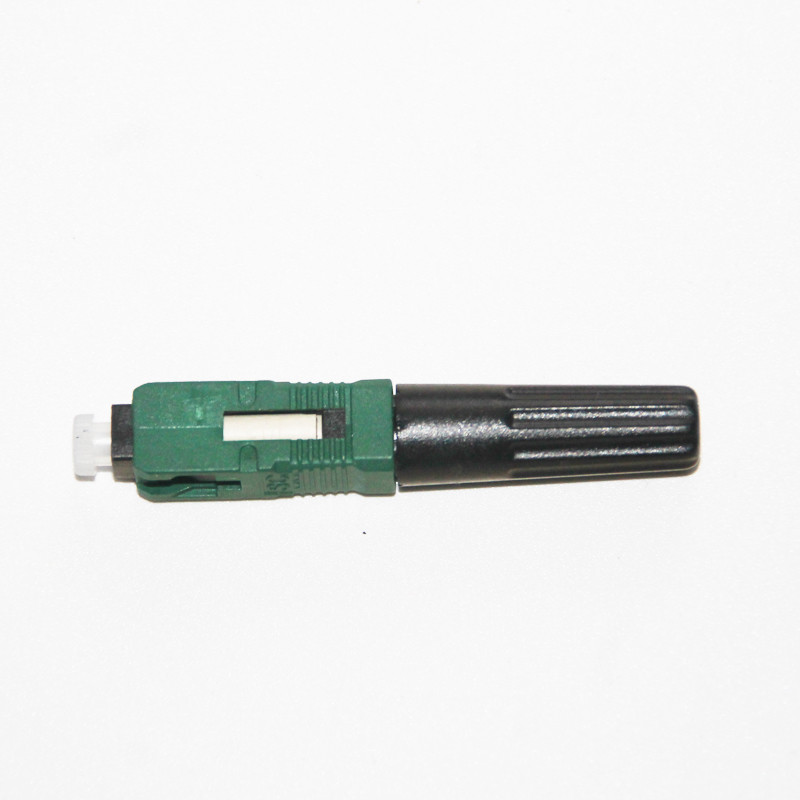

CATV SC UPC Optical Fiber Cable Connector
Place of Origin | China |
---|---|
Brand Name | Hangalaxy |
Certification | CE, UL, FCC, RoHs, ISO9001:2008 |
Model Number | H-002 |
Minimum Order Quantity | MOQ Saying is 10pcs |
Price | Negotiation By email or Phone Call |
Packaging Details | 1PCS Each Individual Quality PE Bag |
Delivery Time | 7-10 Business Days |
Payment Terms | L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability | 250000PCS Monthly |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xConnector Type | SC | Polishing Type | UPC |
---|---|---|---|
Color | Blue | Housing | PC Plastic |
Cable OD | 2.0 X 3.0mm | Length | 55mm |
Highlight | SC UPC Optical Fiber Cable Connector,CATV Optical Fiber Cable Connector,55mm Length Fiber Optic Cable Connector |
2.0 x 3.0mm SC UPC Polishing Fiber Optic Quick Assembly Connector Blue Housing
1, What Is Mechanical Fiber Splicer?
Fiber optic mechanical splicer performs a similar function to the fusion splice except that the fibers are held together by mechanical means rather than by a welding technique. Mechanical splices somewhat look like fusion splice protection sleeves. In a mechanical splice, two cleaved fiber tips are mechanically aligned to each other by a special housing. Usually, index matching gel is positioned between the fiber tips to maximize coupling and minimize back reflection.
2, Application
● All fiber interconnection;
● Telecom Distribution and Local Area Networks;
● FTTH and FTTx;
● Passive optical networks [ATM, WDM, Ethernet];
● Broadband, Cable TV(CATV).
3, Advantages of Mechanical Splicer
Mechanical splicer is ideal for used in FTTx projects, it does not require the fusion splicer to get to work, it can join the 2 optical fiberglass mechanically and precisely.
> Mechanical splices require no power supplies;
> Many mechanical fiber splice designs require no extra tools beyond a fiber stripper and fiber cleaver;
> They can be used in situations where fusion splicing is not practical or impossible;
> Mechanical splices can be made within a couple of minutes, this makes it ideal for temporary connections.
4, Technical Parameter
Applicable for | 3.1 x 2.0mm Drop cable,φ0.25 mm & φ0.90 mm Fiber |
Optical fiber diameter | 125μm (652 & 657) |
Color | Blue |
Tight buffer diameter (μm) | 250 μm |
Polishing Type | UPC |
Fiber mode | Single & multi mode |
Operation time | About 60s (no fiber cut) |
Insert loss | ≤ 0.15dB (1310nm & 1550nm) |
Return loss | ≤ -40dB |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Repeatability (10 times) | △ IL ≤ 0.2dB △ RL ≤ 5dB |
5, Disadvantages of Mechanical Fiber Splicer
Fiber optic mechanical splices have their cons too.
> Higher insertion loss. The typical insertion loss for a mechanical splice is about 0.2dB which is significantly higher than the 0.02dB loss for typical fusion splice.
> Mechanical splices are typically for multimode fibers. The tough alignment tolerance for single mode fibers makes it hard for mechanical splices to meet
> Mechanical splice is more expensive than fusion splices. But if you take into account the expensive fusion splicing machines that fusion splices need, the average cost is actually much lower for mechanical splice if you just do a few splices.
> Since the refractive index of most index matching compounds varies with temperature, so the optical performance of a mechanical splice can be sensitive to ambient temperature
> Mechanical splices are not thought to be as reliable as fusion splices over long periods of time
> Mechanical splices are used only in relatively benign environments such as inside an office building The principle of mechanical splice is simple and straightforward. Two fibers are stripped, cleaned and cleaved. They are then aligned and held in position either by epoxy resin or by mechanical clips.
