SC APC Fiber Optic Quick Connector FTTH Solution

Place of Origin China
Brand Name Hangalaxy
Certification CE, UL, FCC, RoHs, ISO9001:2008
Model Number H-005
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 250000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type SC Polishing Type APC
Color Green Housing PC Plastic
Cable OD 2.0 X 3.0mm Length 55mm
High Light

APC Fiber Optic Quick Connector

,

CATV Fiber Optic Quick Connector

,

FTTH Solution Optical Fiber Connector

Leave a Message
Product Description

FTTH Solution 3.0mm SC APC Fiber Optic Field Assembly Quick Connector

1, Item Description

This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 2.0mm x 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.
2, Advantages of Mechanical Splicer

(1) Linkage structure design, when docking with equipment and joints, the reserved microbend remains unchanged;
(2) Double V-slot structure design, fiber optic docking is stable and reliable;
(3) The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
(4) Easy to operate, fast construction, high installation success rate, long life cycle, easy maintenance in the later period.

3, Application
● All fiber interconnection;
● Telecom Distribution and Local Area Networks;
● FTTH and FTTx;
● Passive optical networks [ATM, WDM, Ethernet];
● Broadband, Cable TV(CATV).

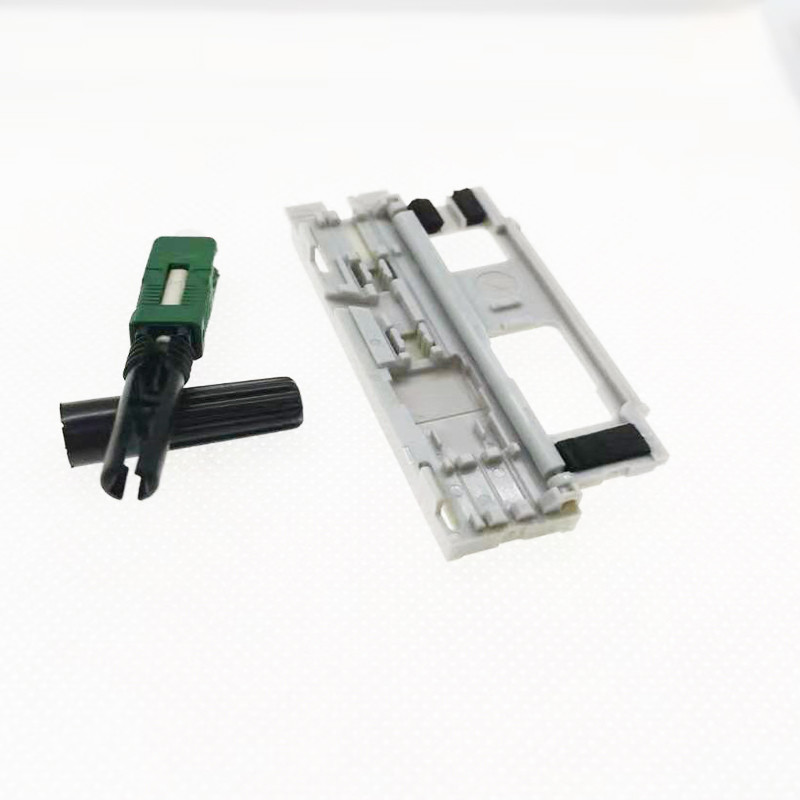

SC APC Fiber Optic Quick Connector FTTH Solution 0

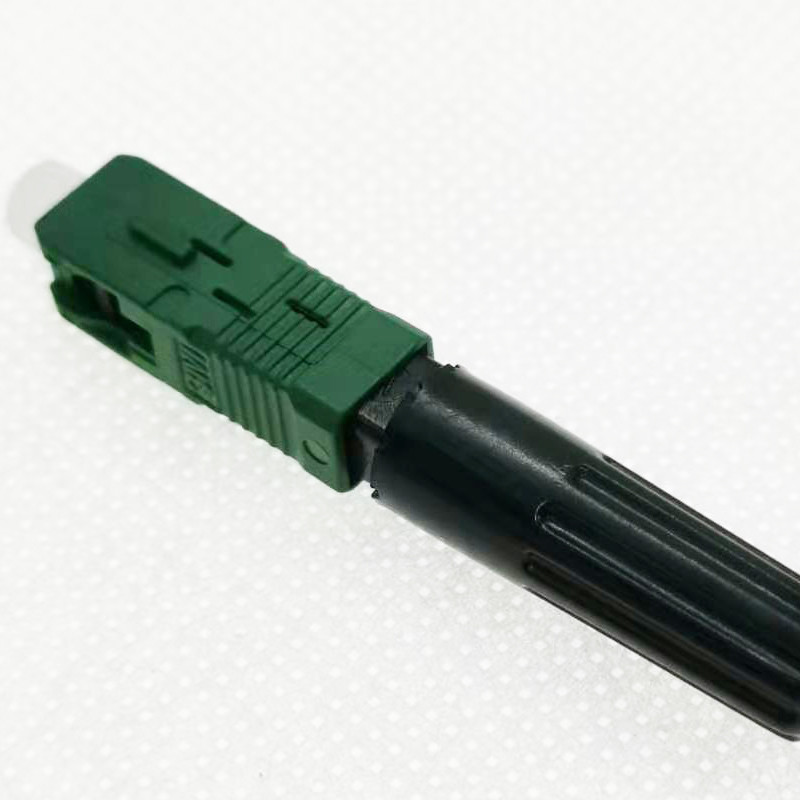

SC APC Fiber Optic Quick Connector FTTH Solution 1

4, Technical Parameter


Applicable for3.1 x 2.0mm Drop cable,φ0.25 mm & φ0.90 mm Fiber
Optical fiber diameter125μm (652 & 657)
ColorBlue
Tight buffer diameter (μm)250 μm
Polishing TypeUPC
Fiber modeSingle & multi mode
Operation timeAbout 60s (no fiber cut)
Insert loss≤ 0.15dB (1310nm & 1550nm)
Return loss≤ -40dB
Fastening strength of naked fiber>5 N
Fastening strength of naked fiber holder>10 N
Repeatability (10 times)△ IL ≤ 0.2dB △ RL ≤ 5dB



Inspection ItemInspection RequirementsJudgement Standard
Insertion LossLoss detector standard line detection method

PC: average value: ≤0.2dB, maximum value: ≤0.4dB,
APC: average value: ≤ 0.3 dB, maximum value: ≤ 0.5 dB.

Return LossLoss detector standard line detection methodPC: ≥ 40 dB, APC: ≥ 50 dB.
Average Assembly TimeNormal skilled operator≤2.5Mins
One Assembly Success rateNormal skilled operator≥98%
RepeatabilityInsert 10 timesInsertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, such as deformation, cracks, Chi and other phenomena.
High Temperature+85℃, 96hrsInsertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, such as deformation, cracks, Chi and other phenomena.
Low Temperature-45℃, 96hrsInsertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, such as deformation, cracks, Chi and other phenomena.
Warm Cycle-40℃ ~ +85℃, 30 cycles, a total of 240hrsInsertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, such as deformation, cracks, Chi and other phenomena.
Damp Heat+75℃, 95%, 96hrsInsertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, such as deformation, cracks, Chi and other phenomena.
Soaking Water25±2℃, 168hrs, tap waterInsertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, such as deformation, cracks, Chi and other phenomena.
Repeated AssemblyAssembly Times: 5 TimesInsertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, no obvious scratches on the surface of the pin.



Vibration (Sine)

Frequency: 10-50Hz
Sweep: 45 times per minute
Amplitude: 0.75mm single amplitude
Time: three directions, each 2hrs



Insertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, no obvious scratches on the surface of the pin.

Fall Test

Height: 1.5m
No. of times: 8 times

Insertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, such as deformation, cracks, Chi and other phenomena.
Mechanical DurabilityPlug and Pull>500 TimesInsertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, such as deformation, cracks, Chi and other phenomena.
Tensile

Cable Type: 20N, online measurement;
Cable Type: 30N, not measured online, the time is 2 minutes.

Insertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, such as deformation, cracks, Chi and other phenomena.


Torsion (optical cable type)

Load: 15N
Rate: 10 times / min
No. of times: 200 times


Insertion loss change: ≤0.2dB, return loss change: ≤4dB. No mechanical damage, such as deformation, cracks, Chi and other phenomena.


5, Disadvantages of Mechanical Fiber Splicer
Fiber optic mechanical splices have their cons too.
> Higher insertion loss. The typical insertion loss for a mechanical splice is about 0.2dB which is significantly higher than the 0.02dB loss for typical fusion splice.
> Mechanical splices are typically for multimode fibers. The tough alignment tolerance for single mode fibers makes it hard for mechanical splices to meet
> Mechanical splice is more expensive than fusion splices. But if you take into account the expensive fusion splicing machines that fusion splices need, the average cost is actually much lower for mechanical splice if you just do a few splices.
> Since the refractive index of most index matching compounds varies with temperature, so the optical performance of a mechanical splice can be sensitive to ambient temperature
> Mechanical splices are not thought to be as reliable as fusion splices over long periods of time
> Mechanical splices are used only in relatively benign environments such as inside an office building The principle of mechanical splice is simple and straightforward. Two fibers are stripped, cleaned and cleaved. They are then aligned and held in position either by epoxy resin or by mechanical clips.
