| Place of Origin: | China |
|---|---|
| Brand Name: | Hangalaxy |
| Certification: | ISO9001, CE, RohS, SGS, UL |
| Model Number: | HGYN-012 |
| Minimum Order Quantity: | MOQ Saying is 10pcs |
| Price: | Negotiation By email or Phone Call |
| Packaging Details: | 1PCS Each Individual Quality PE Bag |
| Delivery Time: | 7-10 Business Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000PCS Monthly |
| Fiber Type: | Multimode | Fiber Count: | 2 |
|---|---|---|---|
| Connector 1: | FDDI | Connector 2: | SC |
| Wavelength: | 850nm | Cable OD: | 3.0mm |
| Cable Color: | Orange | Length: | 10m |
| High Light: | fiber optic cable patch cord,fiber optic jumper cables |
||

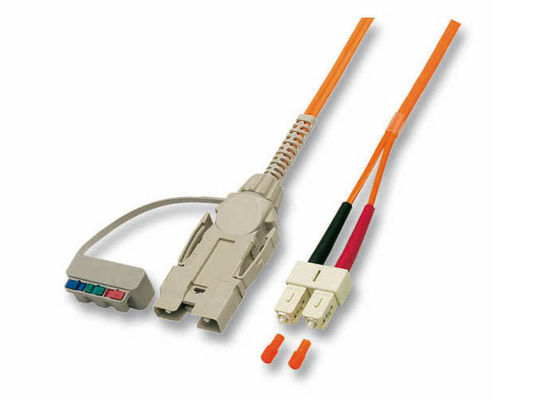

3.0mm FDDI to SC Multimode Fiber Optic Duplex Cables, LSZH Orange Jacket
Company Information
Our factory which was established by an expert team, has been exporting FTTX passive products since 2007. We pay attention on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the fiber optic connectivity industry. We also offer training, pre and post-sales support. We help you select the right products for your optical network's needs.
Keyed Characteristic
(1) High Return Loss & Low Insertion Loss;
(2) High reliability and stability;
(3) Telcordia’s GR-326-Core, IEC Standard;
(4) Green Production, CE, RoHS Standard;
(5) Excellent Polished and 100% tested;
(6) High stability various environments;
(7) Customize order is available
Application
(1) High bit rate data transmission;
(2) Telecommunication networks;
(3) Data processing networks;
(4) Metro applications;
(5) Testing instruments;
(6) Military, medical and industrial;
(7) Active device termination;
(8) CATV system;
(9) Active device terminations;
(10) LAN / WAN;
(11) FTTx (including FTTB, FTTC, FTTD, FTTH).
Technical Parameter
| Fiber Type | SM | MM | |||
|
Connector Tytpe |
MTRJ |
D4, FC, SC, ST, LC, E-2000, MU |
D4, FC, SC, ST, LC, FDDI E-2000, MU |
MTRJ | |
| Insertion Loss (Typical) | ≤0.4dB | ≤0.2dB | ≤0.4dB | ≤0.2dB | |
| Insertion Loss (Max) | ≤0.5dB | ≤0. 3dB | ≤0.3dB | ≤0.5dB | |
|
Return Loss (Typical) |
PC | ≥50dB | |||
| APC | ≥65dB | ||||
| UPC | ≥55dB | ≥55dB | |||
| Mating Durability | ≤0.2dB | ||||
| Durability | ≥1000 times | ||||
| Storage Temperature | - 40℃～+ 85℃ | ||||
Dimensions
| Cable Diameter | 3.0mm |
| Jacket Color | Orange |
| Connector 1 | FDDI |
| Connector 2 | SC |
| Polishing Type | UPC |
| Fiber Type | Multimode |
| Cable Length | 1m / 10ft; or customized |
| Total Fibers, quantity | 2 |
