The Hangalaxy Loose Tube (LT) optical fibre cables with Steel Wired Armor (SWA) have been designed and manufactured for harsh rugged outdoor environments. The SWA enables direct burial of the cable and the steel wire protects the inside cores from any damage from external crush and impact. The loose tubes are filled with gel which allows the flexibility and protection when pulling the cable and enables easier and faster installation on site. The SWA armored cable is suitable for outdoor Campus and building Backbones. All cables designed are designed to IEC 11801 standards. The cable can contain 24 colour coded fibres in un-stranded form and are available in OS2,OM3 and OM4 variants. The cable outer sheath is flame retardant LSOH.
(1) 250 μm optical fibres;
(2) Gel filled loose tube with longitudinally applied water swellable tape;
(3) Corrugated Steel Tape (CST) armouring;
(4) LSZH or PE jacket with radially opposed steel wire strength members.
(1) Choice of fibre type;
(2) Choice of colour coded fibres;
(3) CST armouring for enhanced impact and crush resistance;
(4) Compact 250 μm loose tube construction;
(5) Flame retardant LSZH jacket for enhanced fire performance or PE jacket;
(6) for environmental protection and water permeation resistance.
No. Of Fiber
Product Warranty Period (Worldwide)
Lifetime limited warranty
Fiber Optic Mode Conditioning Patch Cable (ST/LC)
Legend / Key
UOM (Unit of Measure)
Cable Diam Ø
9: 9/125μm Single-mode
6: 6.25/125μm Multimode
7: 50/125μm OM3 Laser Optimized Multimode
4: 50/125μm OM4
2: 200/230μm Multimode
1: 100/140μm Multimode
P: Panda PM Fiber
B: Bowtie PM Fiber
E: Eliptical PM Fiber
S: Simplex (1 Fiber)
D: Duplex (2 Fiber)
R: Riser (OFNR)
P: Plenum (OFNP)
L: Low Smoke Zero Halogen (LSZH)
V: PVC Jacket
2: 2mm Jacket
3: 3mm Jacket
4: 900μm (.9mm)
6: 250μm Bare
7: 500μm Bare
Hangalaxy Exhibition Activities

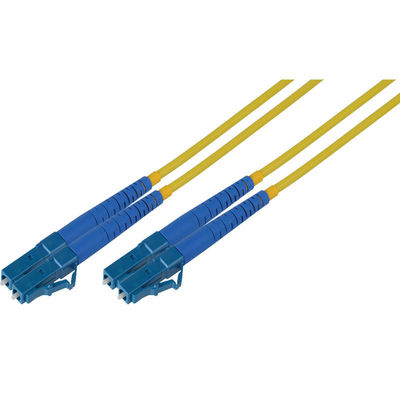

Push-Pull LC Duplex Fiber Optic Patch Cords containing the custom push-pull strain relief boot and duplex clip, allow users easy accessibility in tight areas when deploying very high density LC patch fields in data center applications. They are available in riser (OFNR), plenum (OFNP), and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances. Push-Pull LC Duplex Fiber Optic Patch Cords are available in OM4, OM3 or OS1/OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fibre Channel.
Quality and standards are the foundation of Hangalaxy. We are dedicated to providing clients with the outstanding, standards-compliant products and services. Hanglaxy has passed many quality system verification, like ISO, RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
