5.0mm MTP To MTP Cable Female Fiber Optic Clear Curve OM3 Aqua LSZH Jacket

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: CE, SGS, ROHS, UL
Model Number: HGYN-019
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7-10 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25000PCS Monthly
Fiber Mode: ClearCurve OM3 Fiber Count: 12
Cable Color: Aqua Connector Type: MTP
Cable OD: 5.0mm Insertion Loss: 0.45dB
Boot: 5.0mm Length: 50ft
High Light:

mpo cassette patch panel

,

mtp to mtp cable

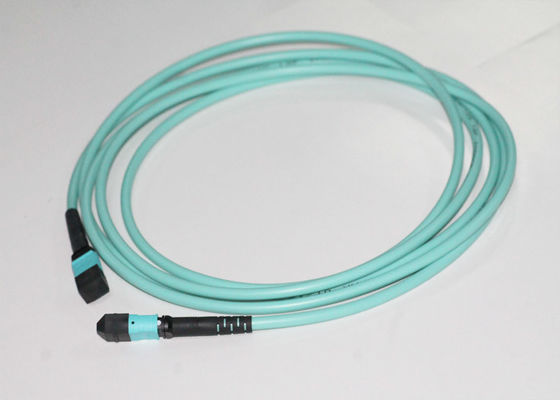

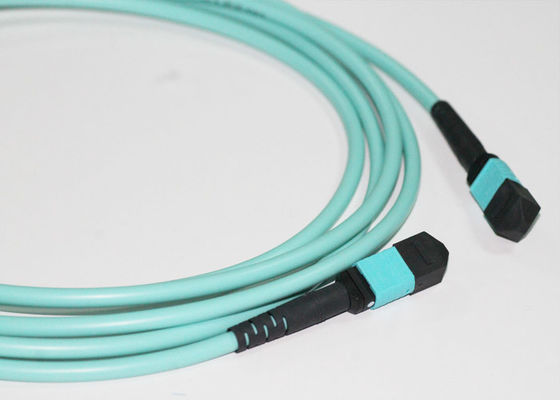

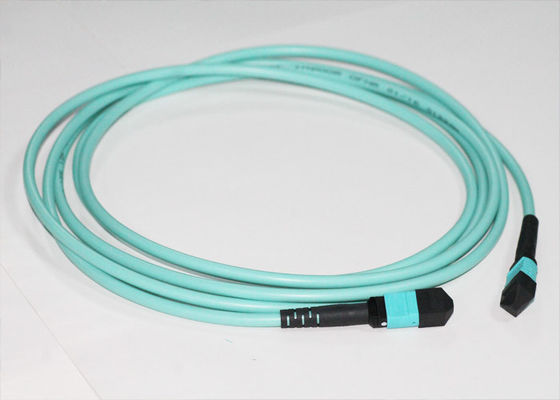

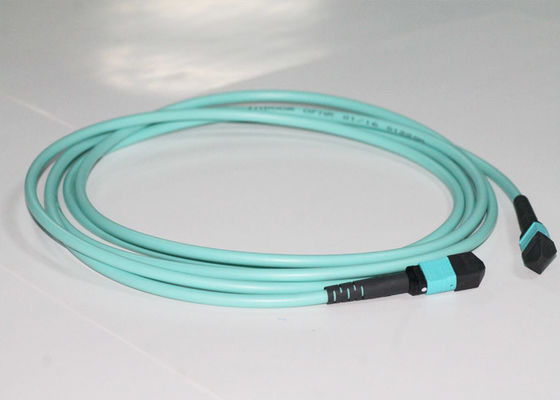

5.0mm MTP-MTP Female Fiber Optic Multimode ClearCurve OM3 Patch Cable Aqua LSZH Jacket



The MTP is a mullti-fibre connector with the most popular accepting 12 cores. The connector was developed many years ago, primarily for use in pre-terminated systems. The pre-terminated systems allow fibre to be deployed and connected without the need for onsite termination. More recently the MTP (and the generic MPO connector) has been identified as the method of delivering parallel optic systems. Over multimode fibre, up to and including 10 Gigabit Ethernet, duplex configuration has been used (2 fibre). One fibre for Transmit (Tx) and one fibre for Receive (Rx). New Ethernet applications over multimode fibre will use parallel optics. This is to say, multiple fibres for transmit and receive. The MTP, having 12 cores, will satisfy this requirement and support the following emerging Ethernet applications.



Key Characteristic



(1) 40GBASE-SR4 40 Gigabit Ethernet 4 fibres transmit & 4 fibres receive;
(2) 1 qty 12 Core MTP Connector;
(3) Mates to all MTP or MPO connectors;
(4) Precision polished for minimum insertion loss and back reflection;
(5) Push/Pull Connector Mating;
(6) Plenum Rated Cable;
(7) Meets EIA/TIA 568-B.3;
(8) Fanouts to discrete simplex connecters available;
(9) 50 and 62.5 micron core fiber available.



Application


(1) Local Area Network (LAN);
(2) Data communication network;
(3) Telecommunication optical transmission network;
(4) Optical access network(OAN);
(5) Active device termination;
(6) Fiber optics data transmission(FODT);
(7) Test Equipment;
(8) CATV.



Physical



Cable 50 micron 62.5 micron
Minimum Bend Radius 30mm 30mm
Core/Cladding Diameters 50/125um 62.5/125um
Certification/Flame Rating USA (UL)=OFNP, Canada (CSA)=OFN/FT6
Ferrule Material Glass Filled Resin
Guide Pins Surgical Grade Stainless Steel
Polish PC, 1 micron (typical) protrusion
Rematability (per EIA-455-21A) 200 200



Performance



Connectors (per termination) 50 micron 62.5 micron
Typical Insertion Loss 0.13-0.31 dB 0.10-0.24 dB
Maximum Insertion Loss 0.5dB 0.5dB
Maximum Return Loss 20.0dB 20.0dB
Standard Cable 850nm 1300nm
Cable Attenuation <5.0dB/km <3.0dB/km
Cable Attenuation @23º, Typ 3.5dB/km 0.75dB/km
LED Bandwidth-62.5u core >160MHz-km >500MHz-km
LED Bandwidth-50u core >500 MHz-km >500 MHz-km
Skew <45ps/m <45ps/m



Environmental



Operating Temperature Rating -5°C to +70°C (exceeds EIA/TIA 568-B.3)
Storage Temperature Rating -40°C to +70°C (exceeds EIA/TIA 568-B.3)



Part Numbers



High Density OM3 MTP Fibre Cassette 6 Duplex LC (12 Core) 208-0114
High Density OM3 MTP Fibre Cassette 12 Duplex LC (24 Core) 208-0124
High Density OM4 MTP Fibre Cassette 6 Duplex LC (12 Core) 208-0124
High Density OM4 MTP Fibre Cassette 12 Duplex LC (24 Core) 208-0154
High Density OS2 MTP Fibre Cassette 6 Duplex LC (12 Core) 208-0184
High Density OS2 MTP Fibre Cassette 12 Duplex LC (24 Core) 208-01778



Standard


♦ Using a standard cassette at each end of the trunk cable will achieve the following configurations;
♦ EN 50174-1;
♦ ISO/IEC 14763-2;
♦ ANSI/TIA-568-C Method B (modified).
