Place of Origin: | China |
---|---|
Brand Name: | Hangalaxy |
Certification: | CE, SGS, ROHS, UL |
Model Number: | HGYN-020 |
Minimum Order Quantity: | MOQ Saying is 10pcs |
Price: | Negotiation By email or Phone Call |
Packaging Details: | 1PCS Each Individual Quality PE Bag |
Delivery Time: | 7-10 Business Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 25000PCS Monthly |
Fiber Mode: | Mulimode, OM3 | Fiber Count: | 12 |
---|---|---|---|
Cable Color: | Aqua | Connector Type: | MPO |
Cable OD: | 3.0mm | Polarity Mode: | B |
Boot: | 3.0mm | Length: | 50ft |
High Light: | mpo cassette patch panel,fiber trunk cable |

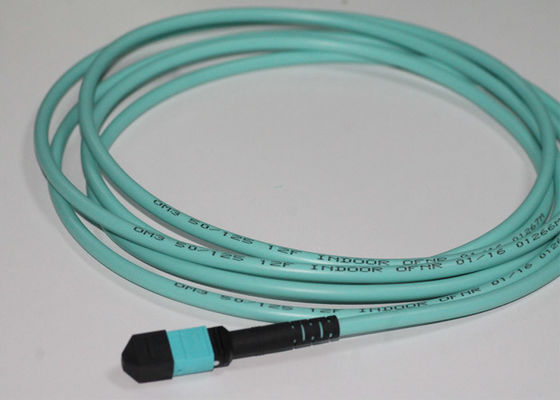

3.0mm MPO to MPO Fiber Optic Multimode OM3 Patch Cord Polarity B Aqua Cable
The MTP is a mullti-fibre connector with the most popular accepting 12 cores. The connector was developed many years ago, primarily for use in pre-terminated systems. The pre-terminated systems allow fibre to be deployed and connected without the need for onsite termination. More recently the MTP (and the generic MPO connector) has been identified as the method of delivering parallel optic systems. Over multimode fibre, up to and including 10 Gigabit Ethernet, duplex configuration has been used (2 fibre). One fibre for Transmit (Tx) and one fibre for Receive (Rx). New Ethernet applications over multimode fibre will use parallel optics. This is to say, multiple fibres for transmit and receive. The MTP, having 12 cores, will satisfy this requirement and support the following emerging Ethernet applications.
Key Characteristic
(1) 40GBASE-SR4 40 Gigabit Ethernet 4 fibres transmit & 4 fibres receive;
(2) 1 qty 12 Core MTP Connector;
(3) Mates to all MTP or MPO connectors;
(4) Precision polished for minimum insertion loss and back reflection;
(5) Push/Pull Connector Mating;
(6) Plenum Rated Cable;
Application
(1) Local Area Network (LAN);
(2) Data communication network;
(3) Telecommunication optical transmission network;
(4) Optical access network(OAN);
(5) Active device termination;
(6) Fiber optics data transmission(FODT);
Physical
Cable | 50 micron | 62.5 micron |
Minimum Bend Radius | 30mm | 30mm |
Core/Cladding Diameters | 50/125um | 62.5/125um |
Certification/Flame Rating | USA (UL)=OFNP, Canada (CSA)=OFN/FT6 | |
Ferrule Material | Glass Filled Resin | |
Guide Pins | Surgical Grade Stainless Steel | |
Polish | PC, 1 micron (typical) protrusion | |
Rematability (per EIA-455-21A) | 200 | 200 |
Performance
Connectors (per termination) | 50 micron | 62.5 micron |
Typical Insertion Loss | 0.13-0.31 dB | 0.10-0.24 dB |
Maximum Insertion Loss | 0.5dB | 0.5dB |
Maximum Return Loss | 20.0dB | 20.0dB |
Standard Cable | 850nm | 1300nm |
Cable Attenuation | <5.0dB/km | <3.0dB/km |
Cable Attenuation @23º, Typ | 3.5dB/km | 0.75dB/km |
LED Bandwidth-62.5u core | >160MHz-km | >500MHz-km |
LED Bandwidth-50u core | >500 MHz-km | >500 MHz-km |
Skew | <45ps/m | <45ps/m |
Environmental
Operating Temperature Rating | -5°C to +70°C (exceeds EIA/TIA 568-B.3) |
Storage Temperature Rating | -40°C to +70°C (exceeds EIA/TIA 568-B.3) |
Part Numbers
High Density OM3 MTP Fibre Cassette 6 Duplex LC (12 Core) | 208-0114 |
High Density OM3 MTP Fibre Cassette 12 Duplex LC (24 Core) | 208-0124 |
High Density OM4 MTP Fibre Cassette 6 Duplex LC (12 Core) | 208-0124 |
High Density OM4 MTP Fibre Cassette 12 Duplex LC (24 Core) | 208-0154 |
High Density OS2 MTP Fibre Cassette 6 Duplex LC (12 Core) | 208-0184 |
High Density OS2 MTP Fibre Cassette 12 Duplex LC (24 Core) | 208-01778 |
Packing Specification
All connector end faces shall be protected with dust covers. The PRODUCT shall be packaged in bulk. A maximum of ten individual PRODUCTs shall be sealed in a single bubble bag envelop or equivalent protective closure. Each sealed product shall be labeled with a pack label. Each pack label shall include part number, part description, purchase order reference, quantity and date of manufacture. The shipping container, in conjunction with the internal packagings, shall satisfy the performance requirements necessary to provide adequate product protection against the normal hazards encountered during handling, storage, and transportation from the source to the final customer. The size and type of shipping container shall be dictated by the material to be shipped. As a rule, however, the smallest appropriate container shall be utilized for shipment of material in order to minimize the void space in the shipping container and reduce the risk of collapse during shipment. Void fill material (sheet cushioning, blocking/bracing, expandable cushioning, etc.) shall be utilized in the shipping container, as appropriate, to fill container voids, protect the material from transportation shock and vibration damage, and to prevent shifting of material during transportation.
