3.0mm 12 Cores Fiber Optic MPO MTP Cable / OFNP Om4 Patch Cord Red Color

Place of Origin China
Brand Name Hangalaxy
Certification CE, SGS, UL, ROHS
Model Number HGYN-0187
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Cable OD 3.0mm Jacket Color Violet
Fiber Count 12 Fiber Mode Multimode, OM4
Length 100ft Connector MPO
Cable Material OFNP Wavelength 850/1300nm
High Light

mpo cassette patch panel


fiber trunk cable

Leave a Message
Product Description

3.0mm 12 Cores Fiber Optic MPO Multimode OM4 OFNP Red Patch Cord


Item Description


Hangalaxy this kind of B-type MPO/MTP optical jumper has the opposite arrangement of the fiber cores at both ends of the jumper, and the position of the core 1 at one end is 12 at the other end, and the positioning keys at both ends have the same direction. Hangalaxy’s MTP® Trunk Cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.



(1) Precision low-loss factory polished connector with integral splice and fiber clamp;
(2) Simple and fast connector termination, with no adhesives or field polishing required;
(3) Provisions for visual light source verification to achieve optimal splice transmission;
(4) Fibers supported: OM1, OM2, OM3, OM4, SM;
(5) Wide operating temperature range for thermally stable optical performance.


Product Specifications


Connector A MTP® Female (Pinless) Connector B MTP® Female (Pinless)
Fibre Mode OM4 50/125μm Wavelength 850/1300nm
Polish Type UPC to UPC Mini Bend Radius 30mm
Insertion Loss 0.35dB Max (0.15dB Typ.) Return Loss ≥20dB
Jacket OD 3.0mm Cable Jacket Plenum (OFNP)
Installation Tensile Load 100N Long-Term Tensile Load 50N
Storage Temperature -40℃ to +85℃ Operating Temperature -10℃ to +70℃


Connector Performance - MTP®


Type and Color
Code Connectors
Loss (IL)
Return Loss (RL)
Multimode MTP® Standard Connector 0.35 dB Typical (All Fibers)
0.75 dB Maximum (Single Fiber)1,3
> 20 dB
(0°Flat Polished)2,3
-40℃ to 75℃
1 IL test according to IEC 61300-3-4;
2 RL test according to IEC 61300-3-6;
3 Tested with proposed encircled flux launch condition on 50μm fiber & 850nm per IEC 61280-4-1.



(1) Intra-building backbone and horizontal fiber interconnections;
(2) Inter-building OSP entrance terminations;
(3) Data Center and WAN main cross-connect terminations;
(4) Quick deployment remote data links;
(5) Fiber to the Subscriber (FTTX);
(6) Low reflection angle polish single-mode applications.

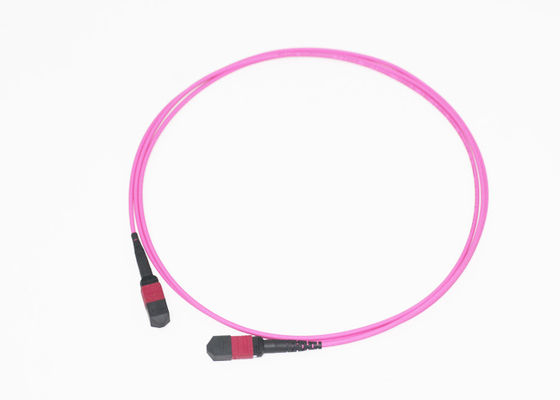

3.0mm 12 Cores Fiber Optic MPO MTP Cable / OFNP Om4 Patch Cord Red Color 0

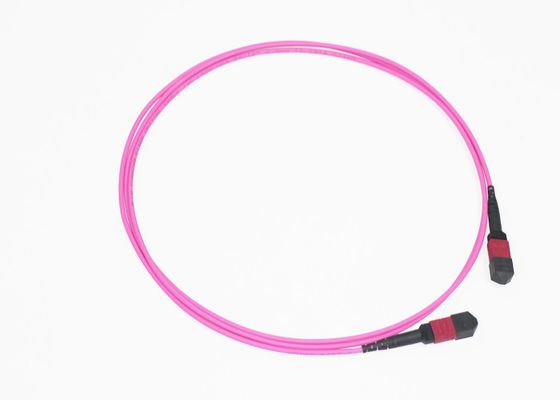

3.0mm 12 Cores Fiber Optic MPO MTP Cable / OFNP Om4 Patch Cord Red Color 1


Ordering Guide

(1) The big length with pulling eyes for each reel packed.
(2) The fiber channeling of our 40G / 100G Solution will be illustrated in NEATEL drawings, please contact us more details.
(3) The MPO / MTP® Trunk Assemblies in our 40G / 100G Solution are connected via key-up to key-up MPO adapter (Type-B), please contact us if different adapter orientation is required.
(4) Please refer to the "MPO Trunk Assembly" leaftlet if MPO assemblies with 12-Fiber cable or other fiber counts are needed.


Data Center Application


3.0mm 12 Cores Fiber Optic MPO MTP Cable / OFNP Om4 Patch Cord Red Color 2


Hangalaxy Factory


3.0mm 12 Cores Fiber Optic MPO MTP Cable / OFNP Om4 Patch Cord Red Color 3


Qualified Certificate


3.0mm 12 Cores Fiber Optic MPO MTP Cable / OFNP Om4 Patch Cord Red Color 4


Packing Information


1PCS Each Individual Quality PE Bag


If you feel any more request about the fiber optic connectivity, please give us a email and a call for asking and we will try our best service for you.
