| Place of Origin: | China |
|---|---|
| Brand Name: | Hangalaxy |
| Certification: | CE, UL, SGS, ROHS |
| Model Number: | HGYN-098 |
| Minimum Order Quantity: | MOQ Saying is 10pcs |
| Price: | Negotiation By email or Phone Call |
| Packaging Details: | 1PCS Each Individual Quality PE Bag |
| Delivery Time: | 7 Business Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 15000PCS Monthly |
| Polish Type: | UPC | Color: | Blue |
|---|---|---|---|
| Connector Type: | LC | Ferrule Type: | Zirconia Ceramic |
| Connector Gender: | Fixed Male To Female | Transfer Mode: | Singlemode |
| Attenuation: | 5dB | Max Optical Input Power: | 200mW |
| High Light: | fixed optical attenuator,variable optical attenuator |
||

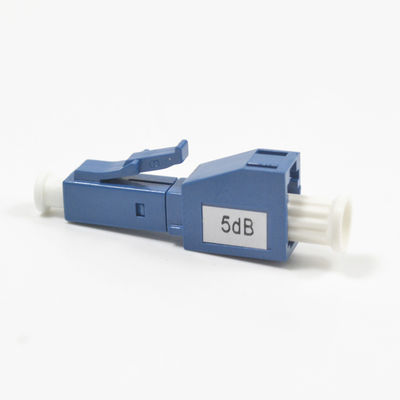

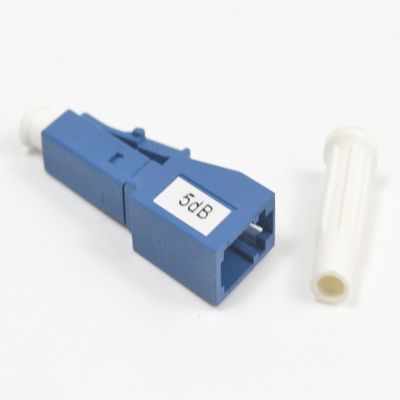

5dB LC UPC Fixed Singlemode Fiber Optic Attenuator Blue Housing
Products Description
Fiber optic attenuators are devices which reduce (attenuate) the strength of a fiber optic signal within a fiber optic network. Attenuators are usually used when the signal arriving at the receiver is too strong and hence may overpower the receiving elements. This may occur because of a mismatch between the transmitters/receivers (transceivers, media converters), or because the media converters are designed for a much longer distance than for which they are being used. Sometimes attenuators are also used for stress testing a network link by incrementally reducing the signal strength (increasing the dB attenuation) until the optical link fails, thus determining the signal’s existing safety margin.
Application
Optical attenuator is a passive device used to reduce the power level of an optical signal. It is generally used in single-mode long-haul applications to prevent optical overload at the receiver. Optical attenuator is widely used in CWDM&DWDM, CATV systems, data center networks, test equipment and other high power applications.
Technical Parameter
| Connector Type | LC |
| Polish Type | UPC |
| Color | Blue |
| Attenuation | 5dB |
| Ferrule Type | Zirconia Ceramic |
| Attenuation Accuracy | ±0.5dB |
| Return Loss | ≥45dB |
| Max Optical Input Power | 200mW |
| Humidity | 95%RH |
| Polarization Dependent Loss | ≤0.2dB |
| Item | Specifications |
| Wavelength | 850 nm (Multi-Mode 50/125um) |
| Attenuation Tolerance (dB) | 2dB,5dB,10dB <±1.0dB ( typical ) standard |
| 15dB<±10% ( typical ) standard | |
| 2dB,5dB,10dB <±0.5dB ( typical ) premium | |
| 15dB<±5% ( typical ) premium | |
| Return Loss | / |
| Operating Temperature | -40℃~+85℃ |
| Storage Temperature | -40℃~+85℃ |
Features
(1) Precise attenuation values;
(2) Low PDL & insertion loss;
(3) Precisional reflection polishing.
1. Flexiable case for easy portability
Accurate size armed with elegant dust cap, better ensure the handy installation and protection from out-service.
2. Durable plastic shell for permanent protection
Shaped with precision refined Polymer, our attenuators perfectly protect the core insert from external damage.
3. Elaborately designed packing for no-damage delivery
Professional designed 10-pack bag, fitting size will maximum buffered the collision in transit and ensure no-damage delivery.
Hangalaxy Factory Overview
Packing Detail as bellow
FBG Array is a series of Bragg grating written on a single optical fiber. It can meet the requirements for long monitoring and multi-points monitoring. It can improve the stability and reliability, as well as simplify the system. Hangalaxy can customize the FBG array for different customers.
