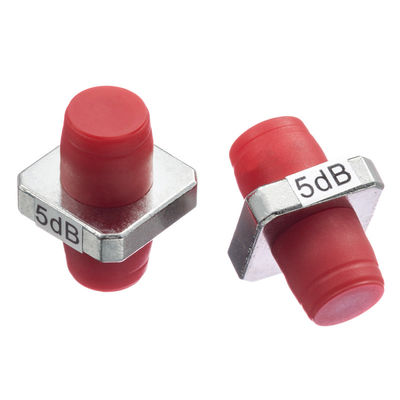

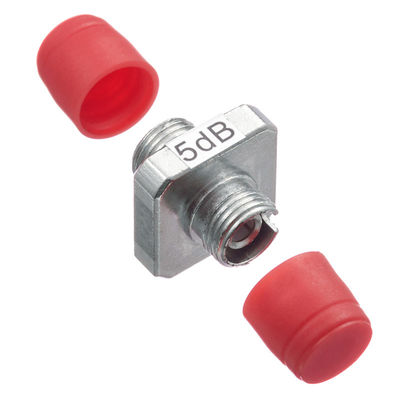

1310nm 5dB FC UPC Fixed Optical Attenuator Hybrid For Test Data Equipment

  • 1310nm 5dB FC UPC Fixed Optical Attenuator Hybrid For Test Data Equipment
  • 1310nm 5dB FC UPC Fixed Optical Attenuator Hybrid For Test Data Equipment
Place of Origin China
Brand Name Hanglaxy
Certification CE, UL, SGS, ROHS, ISO9001
Model Number HGYN-001
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Attenuator Values 5dB Attenuator Tolerance <5 DB: +0.4
Fiber Mode Singlemode Connector Type FC UPC
Wavelength 1310nm Return Loss 45dB
High Light

fixed optical attenuator

,

variable optical attenuator
Leave a Message
Product Description

1310nm 5dB FC UPC Fixed Singlemode Fiber Optic Hybrid Attenuators



Hangalaxy are offered with a complete range of attenuation values in 1dB increments (1 - 20 dB standard; 21 to 30 dB optional). These products are doped fiber, low ripple, and environmentally stable for excellent performance. Both multimode and single mode are available with attenuation at the specified wavelengths above. In addition to our standard line of fixed products, variable attenuators are available and can be provided on request. At Hangalaxy, our goal is 100% customer satisfaction and we will work closely with your team to meet your requirements. If you have a question or would like pricing, we welcome you to contact your local sales representative to discuss the opportunity.



Benefits


1. Very cost-effective;
2. Excellent stability and repeatability;
3. Environmentally stable;
4. Polarization insensitive.



Ideal Applications


1.Telecommunications systems;
2. CATV & LAN systems;
3. Test and data equipment;
4. Passive Optical Networks;
5. Test Areas/Labs.



Specification



Attenuation values 0~10 dB / 15dB / 20dB / 25dB /Specified
Polish Type PC UPC APC
Return Loss 50dB 55dB 65dB
Connector Type FC, SC, ST, LC, MU, E2000, MPO FC, SC, E2000, LC, MPO
Attenuation Accuracy <±0.45dB for 0-10dB , <±1dB for 11-30dB
Wave Length 850nm, 1310nm 1550nm, 1310nm & 1550nm
Bandwidth ±40nm
Operating Temperature -40℃ ~ +80℃
Storage Temperature -55℃ ~ +85℃
Ferrule Material Ceramic



Ordering Information - Optical Attenuator



Fiber Type Connector Type Polish Type Attenuation Operating Wavelength

5-50/125 6-62.5/125 9-9/125

O-OM3

F-FC

S-SC

T-ST

L-LC

M-MU

P-PC

U-UPC

A-APC

00-0dB

01-1dB

02-2dB

03-3dB

05-5db

07-7dB

10-10dB

15-15dB

20-20dB

25-25dB

1-850nm

2-1310nm

3-1550nm 4-1310/1550nm

5-1310/1490nm



1310nm 5dB FC UPC Fixed Optical Attenuator Hybrid For Test Data Equipment 0



Hanglaxy Factory



1310nm 5dB FC UPC Fixed Optical Attenuator Hybrid For Test Data Equipment 1



Hangalaxy Exhibition Activities



1310nm 5dB FC UPC Fixed Optical Attenuator Hybrid For Test Data Equipment 2



Optical attenuators are typically classified as fixed or variable attenuators. Fixed attenuators have a fixed optical power reduction number, such as 1dB, 5dB, 10dB, etc. Variable attenuators’ attenuation level can be adjusted, such as from 0.5 dB to 20dB, or even 50dB. Some variable attenuators have very fine resolution, such as 0.1dB, or even 0.01dB.



Quality Guarantee



Hangalaxy has those fiber optical attenuators in stock and ready to ship. This cable is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.



Shipment Available



1310nm 5dB FC UPC Fixed Optical Attenuator Hybrid For Test Data Equipment 3



Questions & Answers



Q:Is there any difference in application between the single mode and multimode optical attenuator?
A:There is no difference in application between the single mode and multimode optical attenuators. The separate colours are designed for matching colours of fiber patch cables, proving convenience for distinguishing corresponding cables when cabling.


Q:Hi! What's the Ø of the fixing hole?
A:The diameter of the fixing hole hole is 2.0mm, and please kindly note that the M2*8 screw could be used for mounting.
