Singlemode Sfp Fiber Optic Transceiver 1470nm 80km 1.25Gbps CWDM QSFP28

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: CE, UL, SGS, ROHS, ISO9001
Model Number: HGYN-0554
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7 Business Days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 15000PCS Monthly
Cisco Compatible: QSFP-100G-SR4-S Vendor Name: Hangalaxy
Form Factor: QSFP28 Max Data Rate: 10 Gbps
Connector: MTP/MPO-12 Media: MMF
Transmitter Type: VCSEL 850nm Receiver Type: PIN
High Light:

single mode fiber sfp module

,

sfp fiber optic transceiver

1470nm 80km 1.25Gbps CWDM Singlemode Fiber Optical SFP Transceiver

Hangalaxy’s NTSFC-**12-80BD Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector .The module data link up to 80KM in 9/125um single mode fiber. The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

Application

• Switch to Switch Interface.
• Gigabit Ethernet.
• Switched Backplane Applications.
• Router/Server Interface.
• Other Optical Links.

Keyed Characteristic

• Up to 1.25Gb/s data links.
• DFB laser transmitter and PIN photo-detector.
• Up to 80km on 9/125µm SMF.
• Hot-pluggable SFP footprint.
• Duplex LC/UPC type pluggable optical interface.
• Low power dissipation.
• Metal enclosure, for lower EMI.
• RoHS compliant and lead-free.
• Single +3.3V power supply.
• Support Digital Diagnostic Monitoring interface.
• Compliant with SFF-8472.
• Case operating temperature: 0°C to +70°.

Product Selection


WavelengthxxClasp Color CodeWavelengthxxClasp Color Code
1270 nm27Gray1450 nm45Brown
1290 nm29Gray1470 nm47Gray
1310 nm31Gray1490 nm49Purple
1330 nm33Purple1510 nm51Blue
1350 nm35Blue1530 nm53Green
1370 nm37Green1550 nm55Yellow
1390 nm39Yellow1570 nm57Orange
1410 nm41Orange1590 nm59Red
1430 nm43Red1610 nm61Brown














Pin Descriptions


PinSymbolName/DescriptionNOTE
1VEETTransmitter Ground (Common with Receiver Ground)1
2TFAULTTransmitter Fault.
3TDISTransmitter Disable. Laser output disabled on high or open.2
4MOD_DEF(2)Module Definition 2. Data line for Serial ID.3
5MOD_DEF(1)Module Definition 1. Clock line for Serial ID.3
6MOD_DEF(0)Module Definition 0. Grounded within the module.3
7Rate SelectNo connection required4
8LOSLoss of Signal indication. Logic 0 indicates normal operation.5
9VEERReceiver Ground (Common with Transmitter Ground)1
10VEERReceiver Ground (Common with Transmitter Ground)1
11VEERReceiver Ground (Common with Transmitter Ground)1
12RD-Receiver Inverted DATA out. AC Coupled
13RD+Receiver Non-inverted DATA out. AC Coupled
14VEERReceiver Ground (Common with Transmitter Ground)1
15VCCRReceiver Power Supply
16VCCTTransmitter Power Supply
17VEETTransmitter Ground (Common with Receiver Ground)1
18TD+Transmitter Non-Inverted DATA in. AC Coupled.
19TD-Transmitter Inverted DATA in. AC Coupled.
20VEETTransmitter Ground (Common with Receiver Ground)1


























Notes:

1.Circuit ground is internally isolated from chassis ground.
2.Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.
3.Should be pulled up with 4.7k - 10kohms on host board to a voltage between 2.0V and 3.6V.MOD_DEF (0) pulls line low to indicate module is plugged in.
4.This is an optional input used to control the receiver bandwidth for compatibility with multiple data rates (most likely Fiber Channel 1x and 2x Rates).If implemented, the input will be internally pulled down with > 30kΩ resistor.

Singlemode Sfp Fiber Optic Transceiver 1470nm 80km 1.25Gbps CWDM QSFP28 0

We Offer Compatibles Service:

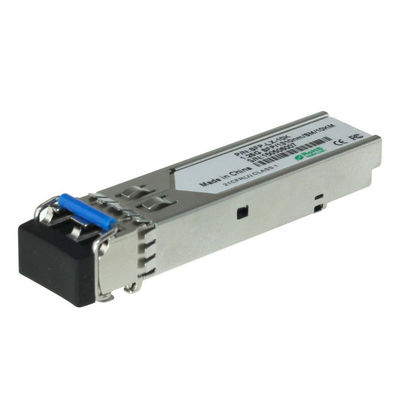

Singlemode Sfp Fiber Optic Transceiver 1470nm 80km 1.25Gbps CWDM QSFP28 1

Singlemode Sfp Fiber Optic Transceiver 1470nm 80km 1.25Gbps CWDM QSFP28 2

Quality Guarantee

Hangalaxy has those Fiber Optic Transceivers in stock and ready to ship. This cable is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.

Products Description

These adapters come with flange for added stability by screw-mounting the adapter to your adapter plate. Reduced flange models are also available. Adapters ship with standard plug-style dust caps.
