1.25G 1310nm 40KM Fiber Optical Transceivers Module / Gigabit Fiber Sfp

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: CE, UL, SGS, ROHS, ISO9001
Model Number: HGYN-0558
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7 Business Days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 15000PCS Monthly
Cisco Compatible: QSFP-100G-SR4-S Vendor Name: Hangalaxy
Form Factor: QSFP28 Max Data Rate: 10 Gbps
Connector: MTP/MPO-12 Media: MMF
Transmitter Type: VCSEL 1310nm Receiver Type: PIN
High Light:

10g sfp single mode

,

single mode fiber sfp module

1.25G 1310nm 40KM LC CWDM DDM Fiber Singlemode Optical Transceiver



Hangalaxy offers a range of SFP (Small Form-factor Pluggable transceivers) for communication over optical fiber at data speeds up to 4.25 Gbps and distances up to 160 km. The extended SFP portfolio for Dual Fiber SFP’s includes a complete range of standard optics as well as CWDM and DWDM transceivers for WDM networks.



Keyed Characteristic


Operating Data Rate up to 1.25Gbps;
1470nm DFB Laser Transmitter;
25dB Power Budget at Least;
80km with 9/125 μm SMF;
Single 3.3V Power Supply and TTL Control Logic Interface;
Hot-Pluggable SFP Footprint Duplex LC Connector Interface;
Class 1 FDA and IEC60825-1 Laser Safety Compliant;
Compliant with SFP MSA Specification;
Compliant with SFF-8472 Digital Diagnostic Monitor Interface;
Operating Case Temperature Standard:0ºC~+70ºC.


Applications


Gigabit Ethernet;
Fiber Channel;
Other Optical Links.



Technical Parameter



Wavelength xx Clasp Color Code Wavelength xx Clasp Color Code
1270 nm 27 Gray 1450 nm 45 Brown
1290 nm 29 Gray 1470 nm 47 Gray
1310 nm 31 Gray 1490 nm 49 Purple
1330 nm 33 Purple 1510 nm 51 Blue
1350 nm 35 Blue 1530 nm 53 Green
1370 nm 37 Green 1550 nm 55 Yellow
1390 nm 39 Yellow 1570 nm 57 Orange
1410 nm 41 Orange 1590 nm 59 Red
1430 nm 43 Red 1610 nm 61 Brown















Pin Descriptions


Pin Symbol Name/Description NOTE
1 VEET Transmitter Ground (Common with Receiver Ground) 1
2 TFAULT Transmitter Fault.
3 TDIS Transmitter Disable. Laser output disabled on high or open. 2
4 MOD_DEF(2) Module Definition 2. Data line for Serial ID. 3
5 MOD_DEF(1) Module Definition 1. Clock line for Serial ID. 3
6 MOD_DEF(0) Module Definition 0. Grounded within the module. 3
7 Rate Select No connection required 4
8 LOS Loss of Signal indication. Logic 0 indicates normal operation. 5
9 VEER Receiver Ground (Common with Transmitter Ground) 1
10 VEER Receiver Ground (Common with Transmitter Ground) 1
11 VEER Receiver Ground (Common with Transmitter Ground) 1
12 RD- Receiver Inverted DATA out. AC Coupled
13 RD+ Receiver Non-inverted DATA out. AC Coupled
14 VEER Receiver Ground (Common with Transmitter Ground) 1
15 VCCR Receiver Power Supply
16 VCCT Transmitter Power Supply
17 VEET Transmitter Ground (Common with Receiver Ground) 1
18 TD+ Transmitter Non-Inverted DATA in. AC Coupled.
19 TD- Transmitter Inverted DATA in. AC Coupled.
20 VEET Transmitter Ground (Common with Receiver Ground) 1

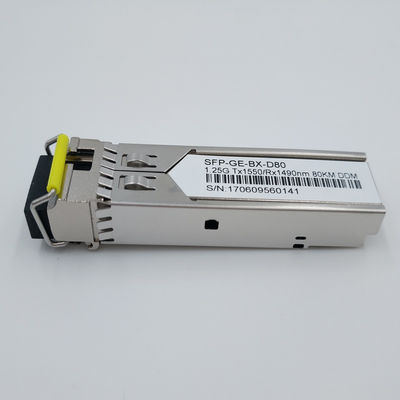

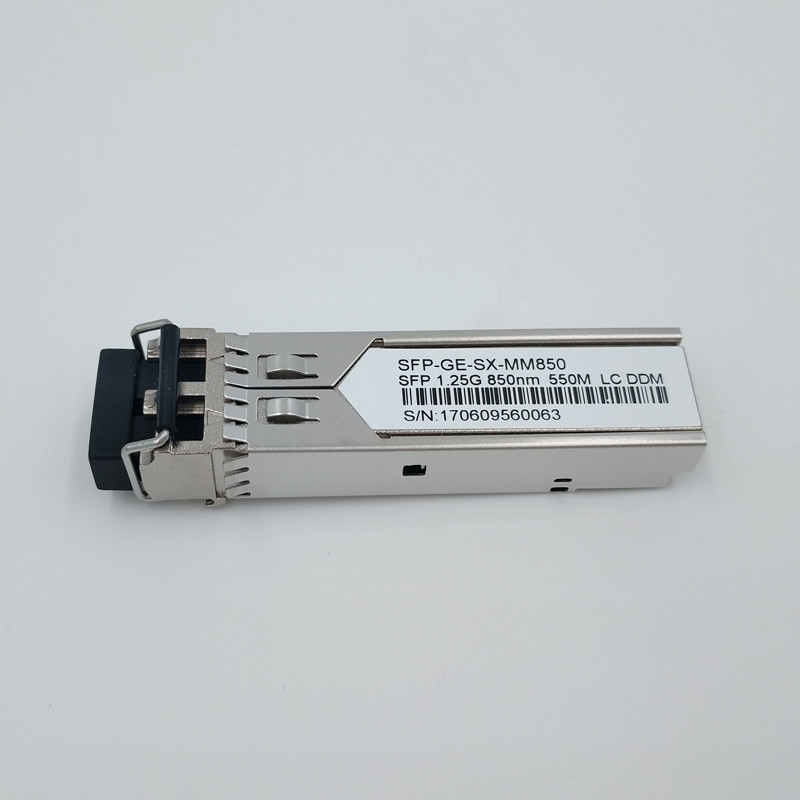

1.25G 1310nm 40KM Fiber Optical Transceivers Module / Gigabit Fiber Sfp 0

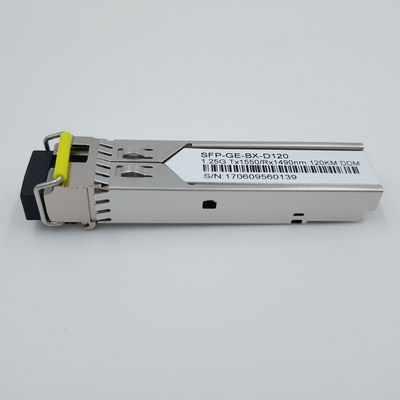

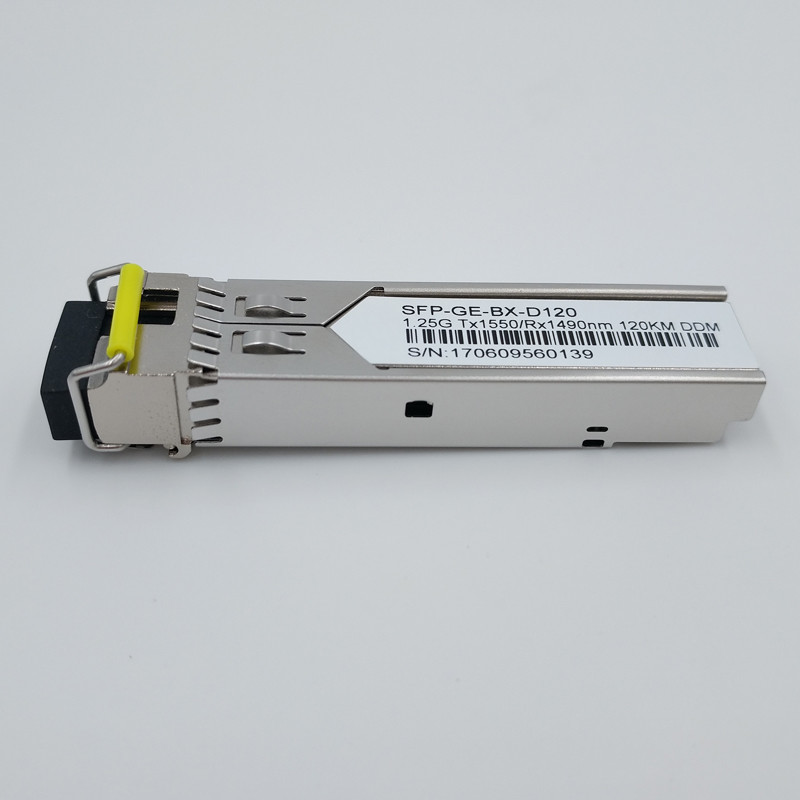

1.25G 1310nm 40KM Fiber Optical Transceivers Module / Gigabit Fiber Sfp 1

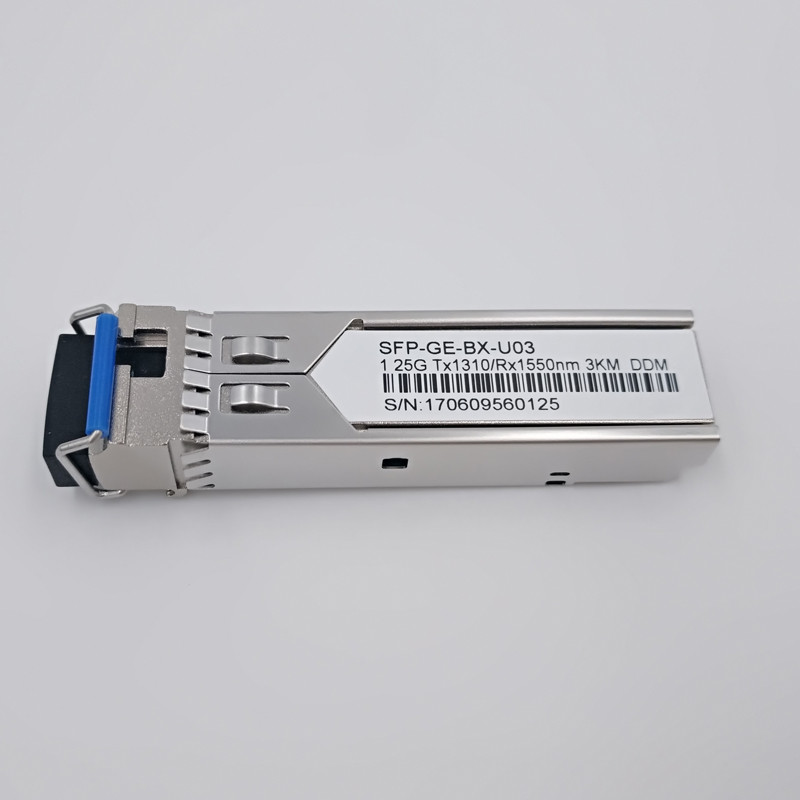

1.25G 1310nm 40KM Fiber Optical Transceivers Module / Gigabit Fiber Sfp 2



Hangalaxy provides SFP transceivers for both MultiMode as SingleMode fiber, compatible with most of today’s switch vendors. Opticonnect’s Dual Fiber SFP’s support data ranges between 100 Mbit/s and 4.25 Gbps and distances up to 160 km. Go to the Opticonnect SFP product range.
