Fast Fiber Optic Field Assembly Connectors SC UPC For 2.0x3.0mm FTTH Drop Cable

  • Fast Fiber Optic Field Assembly Connectors SC UPC For 2.0x3.0mm FTTH Drop Cable
  • Fast Fiber Optic Field Assembly Connectors SC UPC For 2.0x3.0mm FTTH Drop Cable
Place of Origin China
Brand Name Hangalaxy
Certification CE, SGS, UL, ROHS
Model Number HGYN-001
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type SC Polish Type UPC
Color Blue Insertion Loss 0.35dB
Return Loss 55dB Cable OD 2.0x3.0
Housing Plastic Ferrule Cameric
High Light

sc apc fiber connector

,

fc apc fiber connector
Leave a Message
Product Description

Optical Fiber Fast Field Assembly Connector SC/UPC For 2.0x3.0mm FTTH Drop Cable



The Hangalaxy his kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm and 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.



Feature



● Comply with TIA/EIA and IEC;
● Quick and easy fiber termination;
● RoHS compliant;
● Reusable termination capability [Up to 5 times];
● Easy to deploy fiber solution;
● High success rate of connections;
● Low Insertion & Back Reflection;
● No special tools required.



Application



● All fiber interconnection;
● Telecom Distribution and Local Area Networks;
● FTTH and FTTx;
● Passive optical networks [ATM, WDM, Ethernet];
● Broadband, Cable TV(CATV).



Technical Parameter



Category Specification
Applicable for Ф2.0 x 3.0mm Indoor Drop Cable
Fiber mode 9/125μm Singlemode
Polish Type APC / UPC

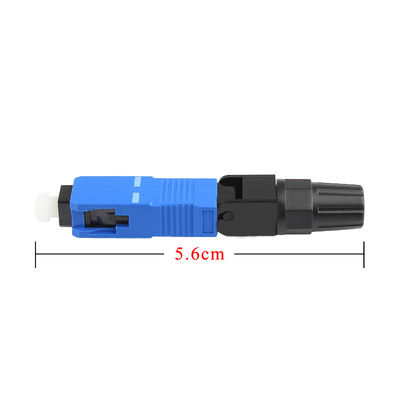

Dimension 55mm
Housing Green / Blue PC Plastic
Ferrule Material Ceramic(Zirconia)
Operation time S About 50(no fiber cut)
Insertion Loss dB ≤ 0.50
Insertion Loss Typical value dB ≤ 0.30
Return Loss dB ≥ 45.0
Fastening strength of naked fiber N ≥ 5
Tensile strength N ≥ 50
Reusable Time ≥ 10 times
Operating Temperature ℃ -40～+75
On-line tensile strength (10N) dB ΔIL≤ 0.3
Mechanical durability (500 times) dB ΔIL≤ 0.3

Drop-off test

(drop-off height4m,once per direction,totally 3 times)

 dB ΔIL≤ 0.3
Conformance TIA/EIA 604-3



Fast Fiber Optic Field Assembly Connectors SC UPC For 2.0x3.0mm FTTH Drop Cable 0



Fast Fiber Optic Field Assembly Connectors SC UPC For 2.0x3.0mm FTTH Drop Cable 1



Fast Fiber Optic Field Assembly Connectors SC UPC For 2.0x3.0mm FTTH Drop Cable 2



Packing Details for Reference (or Meet Customized Standard)



Blister Box Packing - Usage Instruction Included



  Size (CM) 12*9
QTY (PCS/Bag) 5
Net Weight (KG/PCS) 0.005kg
