3.0mm DIN Fiber Optic Field Assembly Connectors / Apc Fiber Connector

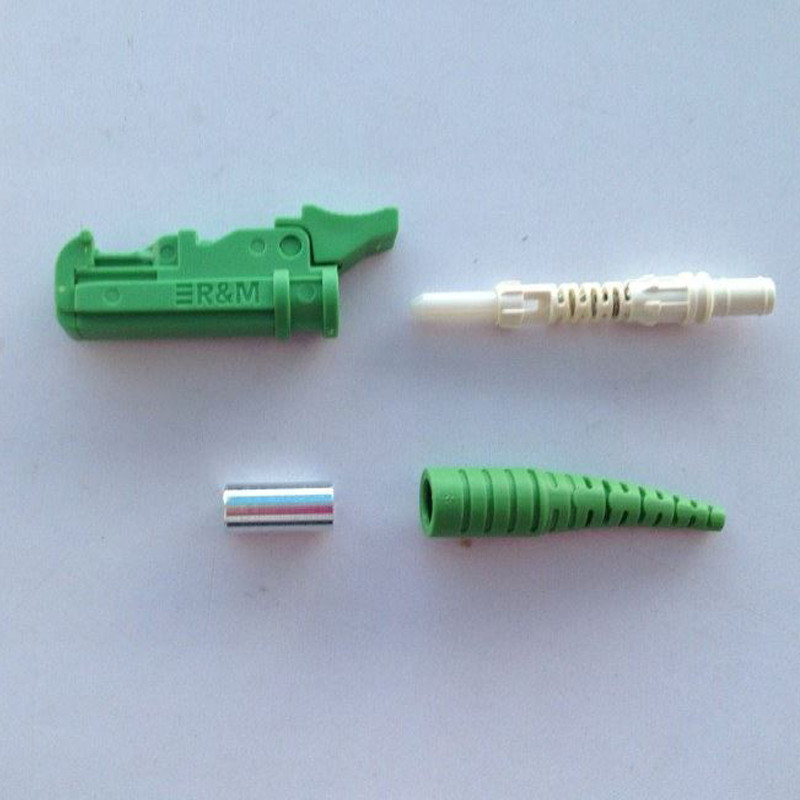

3.0mm DIN Fiber Optic Field Assembly Connector

Field assembly connector is very easy installable and re-usable field assembly connector which the fiber can be connected/disconnected only by on/off of a small latch attached on connector body, which is composed of two parts of a connector body and a boot it is designed to have the structure and the function to construct the more economic FTTH network.

Advantages of Mechanical Splicer

Fiber to the x (FTTX) (also indicated as Fiber to the x) or fiber in the loop is an abbreviation and a term for any broadband network that uses optical fiber to give all or part of the local loop implemented for last mile telecommunications. Fiber optic cables can ensure much more data than copper cables, especially if we consider long distances.

Features / Benefits

● No need to use special Jig for assembling;
● Can be reusable about 10 times;
● Various cable can be acceptable with one type FAC (Ø250-900μm,1.6×2.0mm,2.0×3.0mm,3.0mm);
● RoHS compliant;
● Reusable termination capability [Up to 5 times];
● Easy to deploy fiber solution;
● High success rate of connections;
● Low Insertion & Back Reflection;
● No special tools required.

Application

● FTTH end user termination;
● Patch panels;
● Rapid repair of optical networks;
● Direct equipment termination.

Technical Parameter

Hangalaxy Workshop

Hangalaxy Exhibition Activities

Advantages of Mechanical Splicer

> Mechanical splices require no power supplies;
> Many mechanical fiber splice designs require no extra tools beyond a fiber stripper and fiber cleaver;
> They can be used in situations where fusion splicing is not practical or impossible;
> Mechanical splices can be made within a couple of minutes, this makes it ideal for temporary connections.

Packing Details for Reference (or Meet Customized Standard)

Outer Packing

Notes:

All materials are picked up from the source, 100% factory tested to ensure quality products.
