0.9 LC APC Singlemode Fiber Optic Field Assembly Connectors / Apc Fiber Optic
| Place of Origin | China |
|---|---|
| Brand Name | Hangalaxy |
| Certification | CE, UL, FCC, RoHs |
| Model Number | HGYN-987 |
| Minimum Order Quantity | MOQ Saying is 10pcs |
| Price | Negotiation By email or Phone Call |
| Packaging Details | 1PCS Each Individual Quality PE Bag |
| Delivery Time | 7-10 Business Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 25000PCS Monthly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing | Plastic | Fiber Mode | Singlmode, OS2 |
|---|---|---|---|
| Fiber Count | 1 | Cable OD | 0.9mm |
| Color | Green | Connector Type | LC |
| Ferrule | Cameric | Length | 15mm |
| High Light | lc apc fiber connector,sc apc fiber connector |
||
Product Description

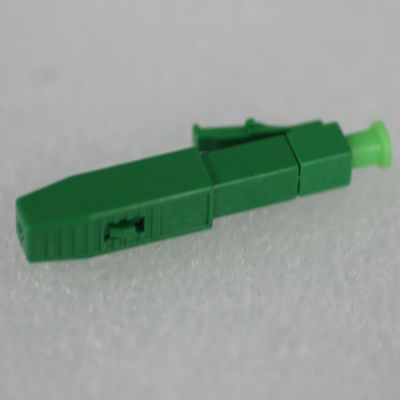

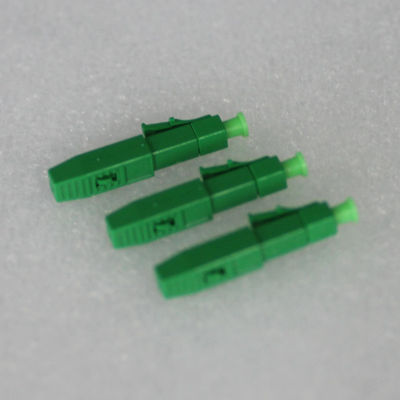

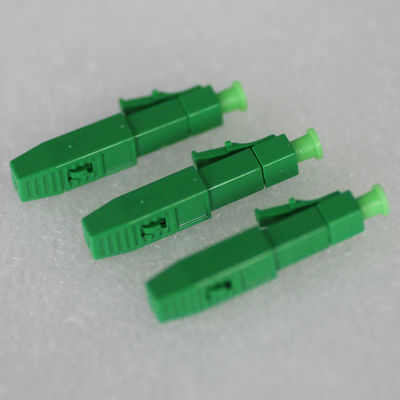

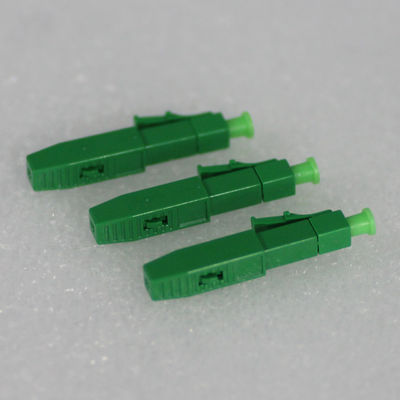

0.9 LC APC Singlemode Fiber Optic Field Assembly Connector
The Field Assembly Connectors feature a pre-polished ferrule that couples to the fiber being terminated by precision mechanical alignment, insuring low loss with a proprietary gel. Compared with pre-polished field assembly connector, straight-through field assembly connector lessens one joint point and achieves low loss. Ferrule in optical fiber straight-through fast connector have no reserved fiber, there is no splice point in V-Groove, fiber end can be checked when construction, and without intermittent points in it. This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field. Assembly of the LC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed. Just Strip the buffer, cleave and clean the fiber and then insert the fixed-length fiber through the ferrule of the connector without matching gel and pre-embedded fiber. Installation takes just minutes and couldn't be easier.
Keyed Characteristics
● Easy assembly process;
● Available in LC, SC, and ST connector styles;
● Available in multimode or singlemode versions;
● Factory polishing eliminates loss concerns;
● Fiber can be reseated;
● No expensive tools required;
● No epoxy required;
● Anaerobic adhesive-style, field-installable connectors;
● Most robust connection, ideal for indoor and outside plant applications.
Technical Parameter
| Cable Scope | 0.9mm tight buffer cable |
| Size | 40*4*3.55mm |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250μm |
| Fiber Mode | Snglemode |
| Polish Type | APC |
| Color | Green |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return Loss | ≤ 55dB for APC |
| Success Rate | >98% |
| Reusable Times | >5 times |
| Tighten Strength of Naked Fiber | >5 N |
| Tensile Strength | >30 N |
| Temperature | -40 ~ +85 C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test |
≤ 0.3dB |
| (4m concrete floor, once each direction, three times total) |
Application
● Fiber optic communication system and telecommunication networks;
● Fiber optic data transmission;
● Optical access network;
● Fibre to the Subscriber (FTTx) applications;
● Optical cable interconnection;
● Maintenance or emergency restoration of fiber networks;
● Repair/replacement requirements ; Fiber optic equipment.
