Pre Installed Fiber Optic Drop Cable SC UPC Singlemode 2.0x3.0mm OD

Basic Information
Place of Origin: China
Brand Name: Hangalaxy
Certification: CE, UL, FCC, RoHs
Model Number: HGYN-0588
Minimum Order Quantity: MOQ Saying is 10pcs
Price: Negotiation By email or Phone Call
Packaging Details: 1PCS Each Individual Quality PE Bag
Delivery Time: 7-10 Business Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25000PCS Monthly
Connector Type: SC Polish Type: UPC
Color: Blue Cable OD: 2.0x3.0mm
Fiber Mode: Singlemode Fiber Count: 1
Insertion Loss: 0.35dB Return Loss: 45dB
High Light:

lc apc fiber connector

,

sc apc fiber connector

FTTH Drop Cable SC UPC Singlemode Pre-installed Fiber Optic Field Assembly Connectors



Fiber Optic Fast Connector make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. SC/UPC Singlemode Fast Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.



Features & Applications



1. No epoxy and polishing required;

2. No expensive tools required;

3. Quick and easy fiber termination;

4. Precision mechanical alignment insures low insertion loss;

5. Superior optical performance;

6. Streamlined component design, convenient operation.



Application



1. Uses proven, molded v-groove technologies;

2. Allow optical continuity to be verified by use of visual fault locator (VFL);

3. Fiber optic communication system and telecommunication networks;

4. Fiber optic data transmission;

5. CATV;

6. Optical access.



Technical Parameter



Part No. HGYN-0588
Interferometer UPC Type APC Type
Radius Of Curvature 7mm~25mm 5mm~12mm
Apex Offset Max. 50µm Max. 50µm
Fiber Height -50nm~50nm -50nm~50nm
Tile Error on APC 8˚ None ±0.3
Operating temp. -40℃~+70℃
Storage temp. -40℃~+80℃



Connector Type SC
Conformance TIA/EIA 604-3
Ferrule Ceramic(Zirconia)
Housing Color

Single Mode PC type: Blue

Single Mode APC type: Green

Cable type Ф3.0mm
Dimension 58mm

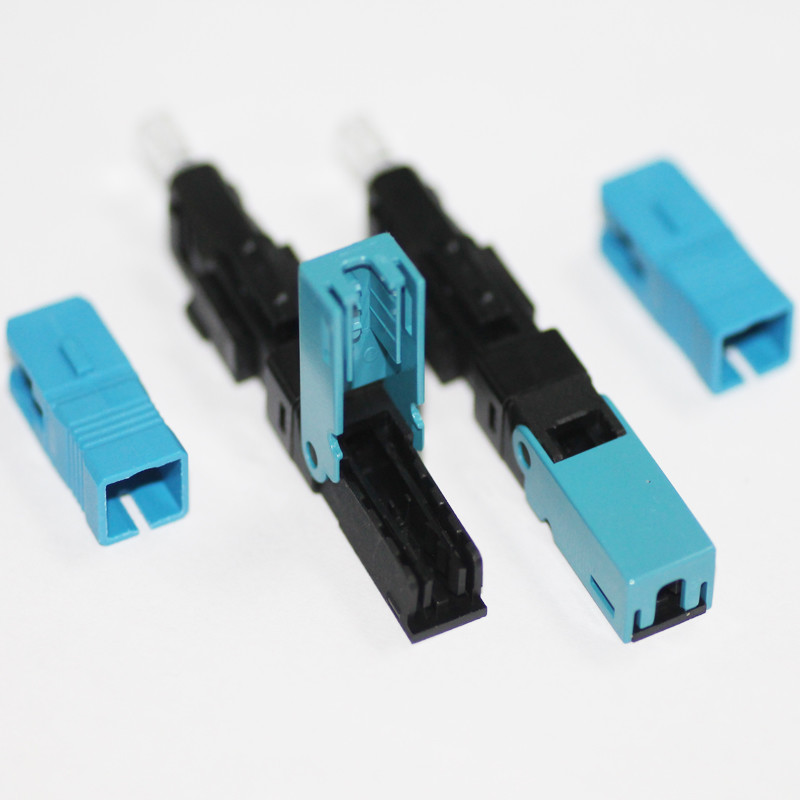

Pre Installed Fiber Optic Drop Cable SC UPC Singlemode 2.0x3.0mm OD 0

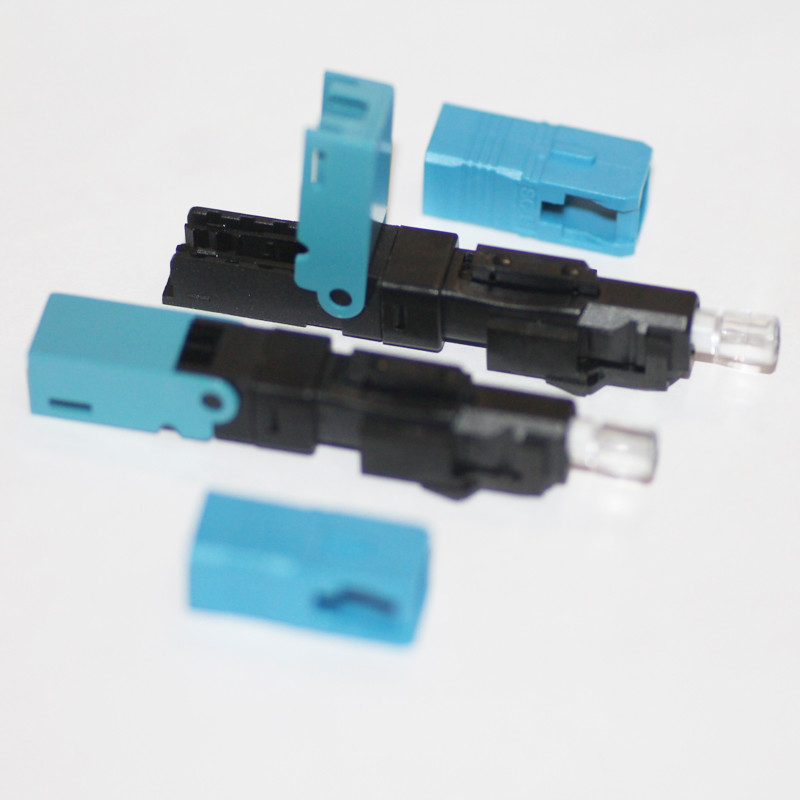

Pre Installed Fiber Optic Drop Cable SC UPC Singlemode 2.0x3.0mm OD 1



For More Items Related Fast Connector as bellow

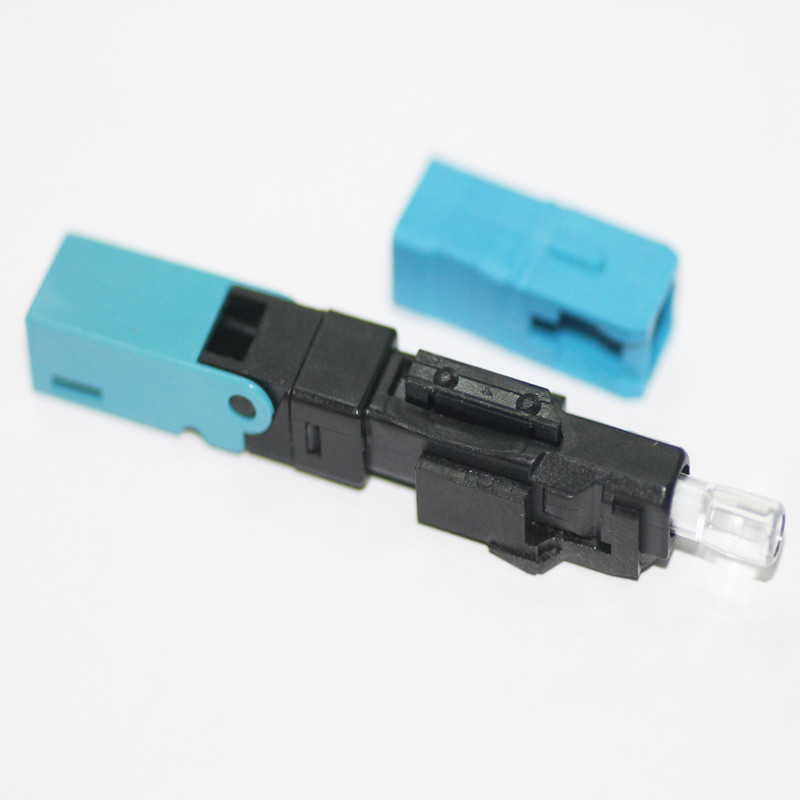

Pre Installed Fiber Optic Drop Cable SC UPC Singlemode 2.0x3.0mm OD 2
