SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly

Place of Origin China
Brand Name Hangalaxy
Certification CE, UL, FCC, RoHs
Model Number HGYN-0589
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Connector Type SC Polish Type UPC
Color Blue Cable OD 2.0x3.0mm
Fiber Mode Singlemode Fiber Count 1
Insertion Loss 0.35dB Return Loss 45dB
High Light

lc apc fiber connector


fc apc fiber connector

Leave a Message
Product Description

Drop Cable SC UPC Fiber Optic Singlemode Pre-terminated Field Assembly Connectors


Hangalaxy provides an array of Fiber Connector FC, SC, ST, LC, MU, MTRJ, E2000 configurations. We Supply Single-mode, Multi-mode, Angle-polished Fiber Connector assemblies with stable qualities that use high quality Ceramic Ferrules. Ferrule -Two main Ceramic Ferrulesizes are used for Fiber Connectors. The ferrule OD size f2.5mm is for ST, FC and SC Fiber Connectors. The ferrule OD size f1.25 mm is for the MU and LC Fiber Connector Versions. PC or UPC or APC refer to how we polish the ferrule of the Fiber Connectors. Single mode fiber connectors can be with PC, or UPC or APC polish, while Multimode Fiber Connectors only with PC or UPC polish.


Features & Applications


1. No epoxy and polishing required;

2. No expensive tools required;

3. Quick and easy fiber termination;

4. Precision mechanical alignment insures low insertion loss;

5. Superior optical performance;

6. Streamlined component design, convenient operation.




1. Uses proven, molded v-groove technologies;

2. Allow optical continuity to be verified by use of visual fault locator (VFL);

3. Fiber optic communication system and telecommunication networks;

4. Fiber optic data transmission;

5. CATV;

6. Optical access.


Technical Parameter


Part No. HGYN-0589
Interferometer UPC Type APC Type
Radius Of Curvature 7mm~25mm 5mm~12mm
Apex Offset Max. 50µm Max. 50µm
Fiber Height -50nm~50nm -50nm~50nm
Tile Error on APC 8˚ None ±0.3
Operating temp. -40℃~+70℃
Storage temp. -40℃~+80℃


Connector Type SC
Conformance TIA/EIA 604-3
Ferrule Ceramic(Zirconia)
Housing Color

Single Mode PC type: Blue

Single Mode APC type: Green

Cable type Ф3.0mm
Dimension 58mm

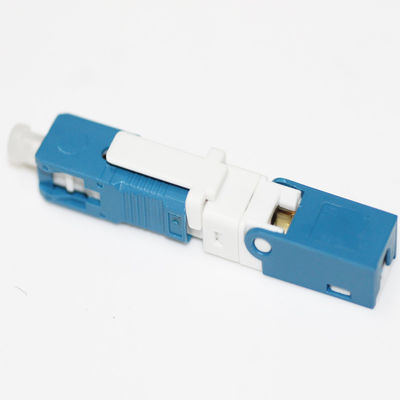

SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly 0


SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly 1


For More Items Related Fast Connector as bellow


SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly 2
