SC UPC Fiber Optic Field Assembly Connectors Multimode Fast Connection

  • SC UPC Fiber Optic Field Assembly Connectors Multimode Fast Connection
  • SC UPC Fiber Optic Field Assembly Connectors Multimode Fast Connection
  • SC UPC Fiber Optic Field Assembly Connectors Multimode Fast Connection
  • SC UPC Fiber Optic Field Assembly Connectors Multimode Fast Connection
Place of Origin China
Brand Name Hangalaxy
Certification CE, RoHs, FCC, UL, ISO9001
Model Number HGYN-1454
Minimum Order Quantity MOQ Saying is 10pcs
Price egotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type SC Fiber Mode Multimode
Fiber Count 1 Color Beige
Material Plastic Insertion Loss 0.35dB
Return Loss 55dB Polish Type UPC
High Light

sc apc fiber connector

,

fc apc fiber connector
Leave a Message
Product Description

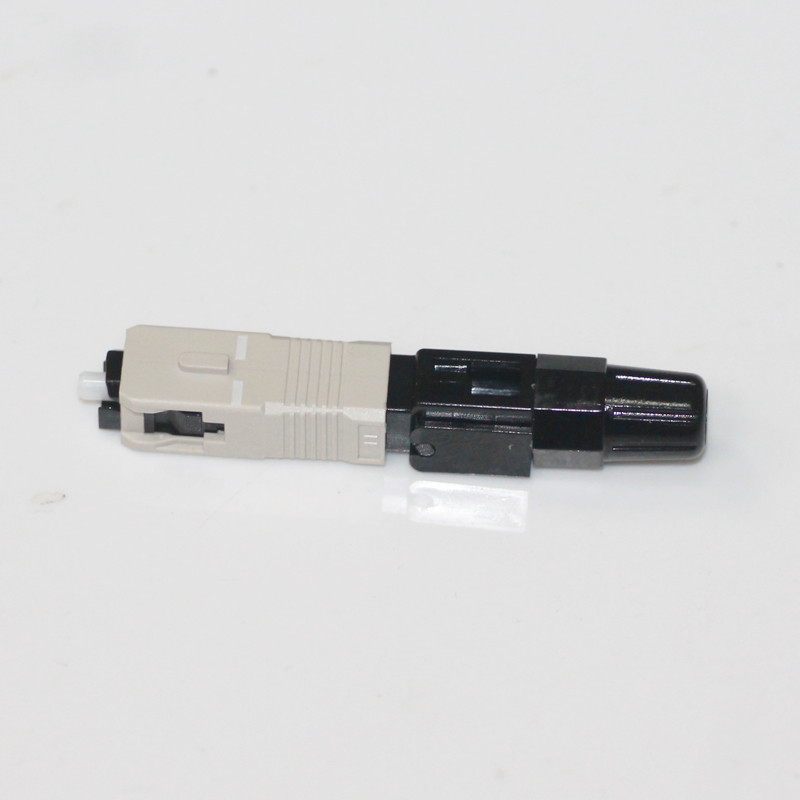

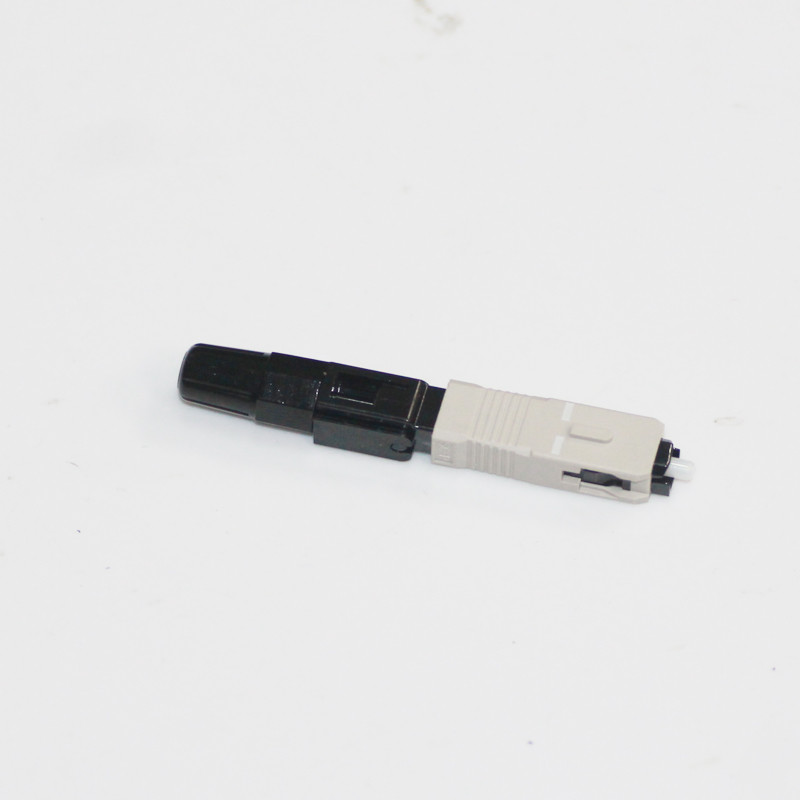

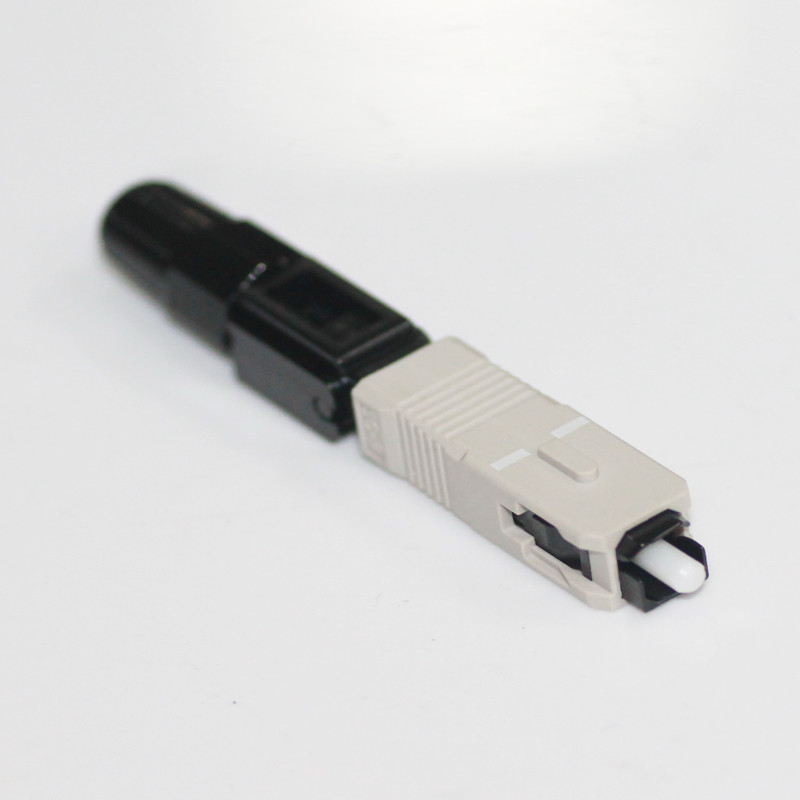

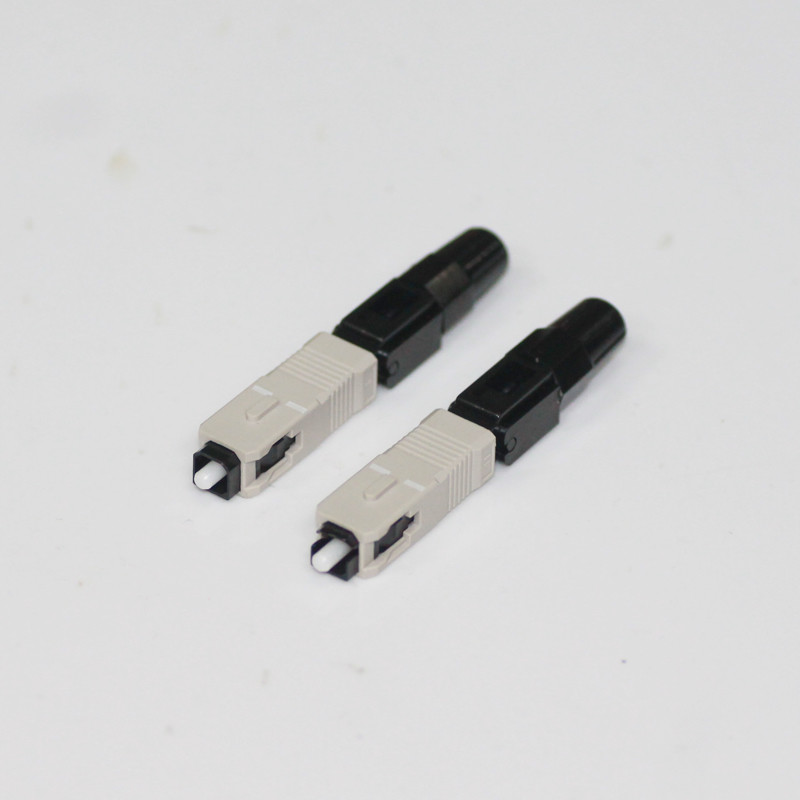

SC UPC Fiber Optical Multimode Field Assembly Fast Connectors



Hangalaxy supply many kinds of SM and MM fast connectors for LC, SC, FC, ST applications. Each connector is functionally tested before shipping. Over the years, we have focused on what we do best: fixed, large-scale installations that require the highest of quality because of their complex and demanding structures. Theme park operators and vendors, museum curators and designers, along with ride manufacturers and industrial companies from all over the world place their trust in our company because they know that we understand their needs and meet their expectations by implementing the best technical solutions available.



Features



1. Easy assembly process.
2. Available in LC, SC, and ST connector styles.
3. Available in multimode or singlemode versions.
4. Factory polishing eliminates loss concerns
5. Fiber can be reseated.
6. No expensive tools required.
7. No epoxy required.
8. Anaerobic adhesive-style, field-installable connectors.
9. Most robust connection, ideal for indoor and outside plant applications.



Technical Parameter



Type SC/UPC
Fiber Count Simplex
Insertion Loss ≤0.3dB
Fiber Mode 50/125MM
Return Loss >30dB (UPC MM)
Boot Size 2.0*3.0 drop cable
Housing Beige
Material Plastic



Short Details



Part Number HGYN-1454
Polish Type UPC
Lenght 55mm



Application



1. Telecom / Datacom;
2. LANs, CATV;
3. Fiber to the Home;
4. Premises Distribution;
5. Gigabit Applications (Ethernet, ATM, SONET, etc.



SC UPC Fiber Optic Field Assembly Connectors Multimode Fast Connection 0



SC UPC Fiber Optic Field Assembly Connectors Multimode Fast Connection 1



Assembly Manual


The field assembly connector can be assembled directly on the end of cable just within minutes. Which makes the installation process easy and fast. It requires no specialized tooling except standard fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. Even no electrical power supply is needed to assemble this fiber connector.
